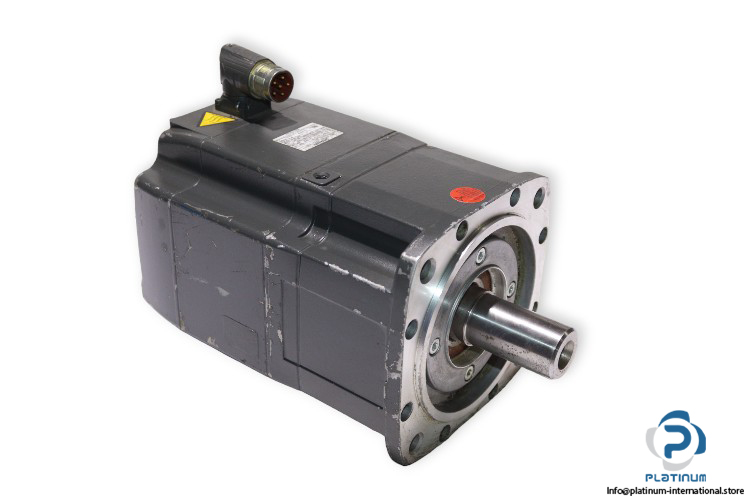

SIEMENS 1FK7083-2AF71-1RH0 PERMANENT-MAGNET SYNCHRONOUS MOTOR

This compact and high-performance synchronous motor from Siemens is engineered for dynamic and precise motion control applications. With high torque capacity, integrated brake, and absolute encoder, it offers reliability and control for demanding automation systems.

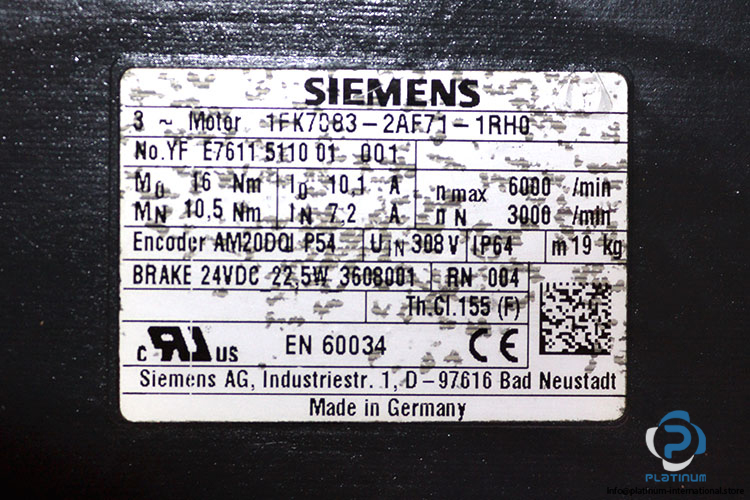

Manufacturer: SIEMENS
Type: Permanent-magnet synchronous motor
Model: 1FK7083-2AF71-1RH0
NO.YF: E7611511001 001

Technical Information

• Motor Type: Compact
• Shaft Height: 80
• Rated Torque: 10.5 Nm
• Static Torque: 16 Nm
• Rated Current: 7.2 A
• Stall Current: 10.1 A
• Rated Speed: 3000 rpm
• Maximum Speed: 6000 rpm
• Maximum Current: 37 A
• Maximum Torque: 50 Nm
• Input Voltage: 308 V
• Thermal Time Constant: 50 min
• Design acc. to Code I: IM B5
• Temperature Monitoring: Pt1000 temperature sensor
• Degree of Protection: IP64 (EN60034)
• Thermal Class: F

Brake Information

• Attached Brake: 3608001
• Brake Power Supply Voltage: 24 VDC
• Brake Power: 22.5 W
• Brake Holding Torque: 22.0 Nm

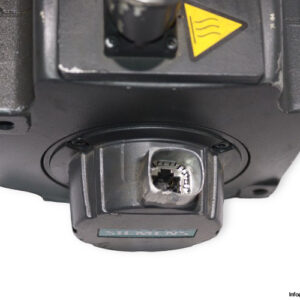

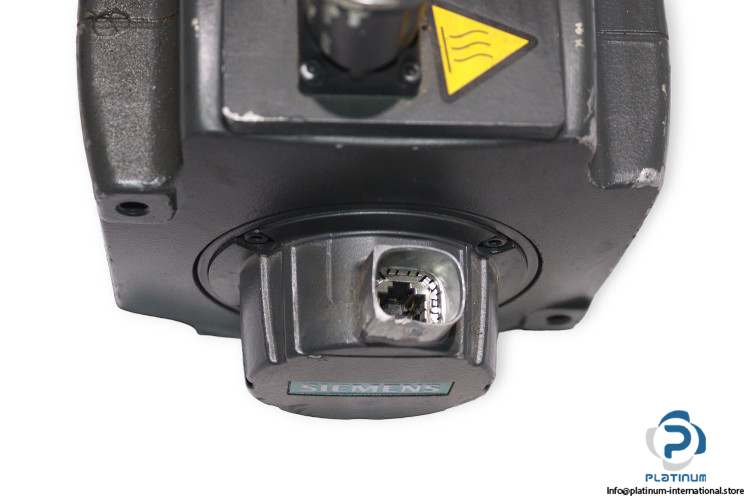

Encoder

• Attached Encoder: AM20DQI P54, absolute encoder 20 bits
