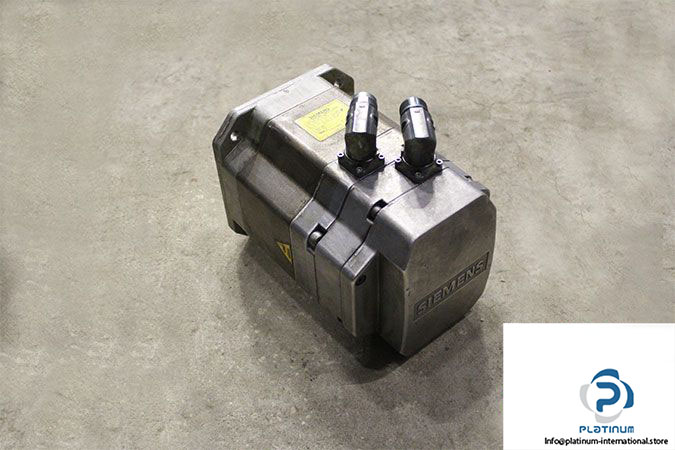

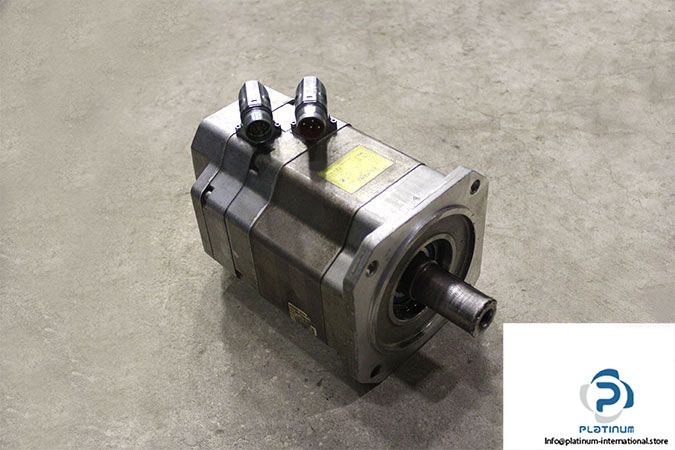

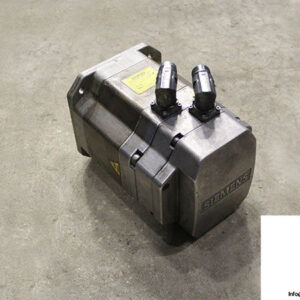

SIEMENS 1FK7 083-5AF71-1EG0 SYNCHRONOUS SERVO MOTOR

The Siemens 1FK7 083-5AF71-1EG0 is a high-performance synchronous servo motor engineered for industrial automation systems demanding speed, stability, and high torque density. With its compact design and precise control, it offers excellent dynamics for applications such as robotics, CNC machinery, and automated manufacturing lines.

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FK7 083-5AF71-1EG0
Part No.: T332 5617 01 004
Series: 7

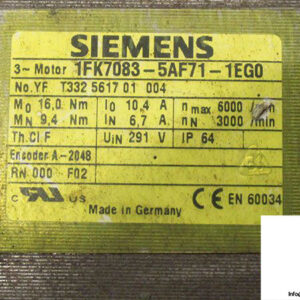

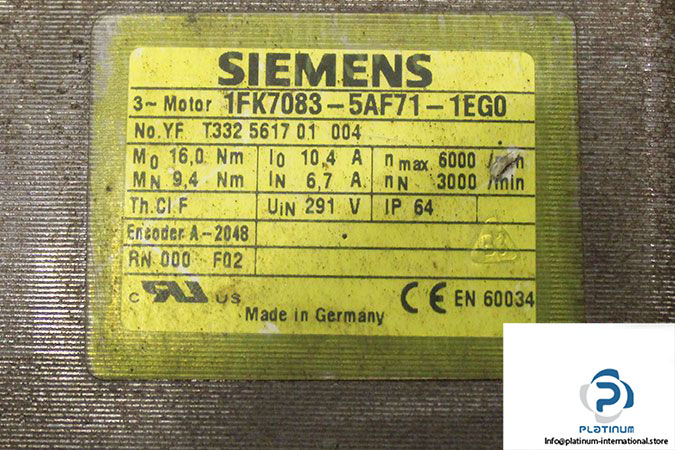

Technical Information

• Frame Size: 08
• Length: 3
• Rated Voltage: 291 V
• Rated Torque: 9.4 Nm
• Static Torque: 16.0 Nm
• Rated Current: 6.7 A
• Stall Current: 10.4 A
• Rated Speed: 3000 rpm
• Max. Speed: 6000 rpm
• Protection Class: IP64
• Encoder Model: A-2048
• Thermal Class: F
