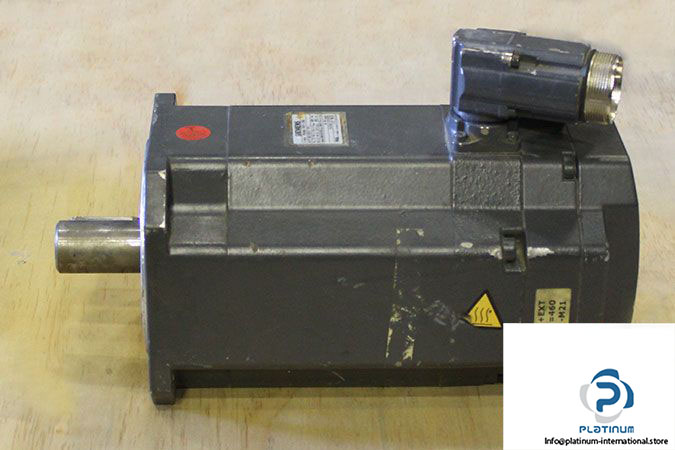

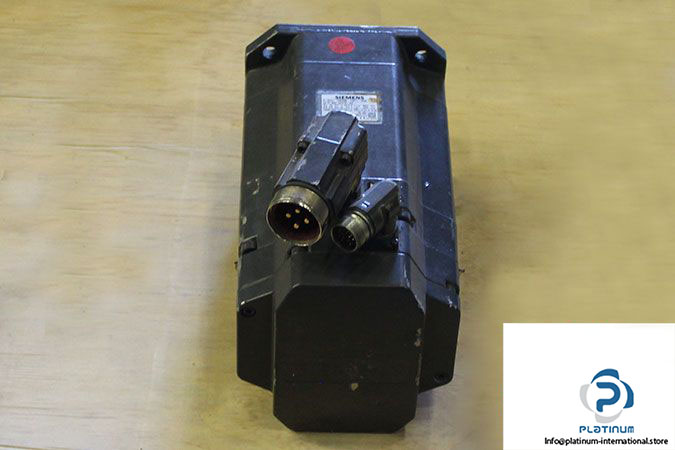

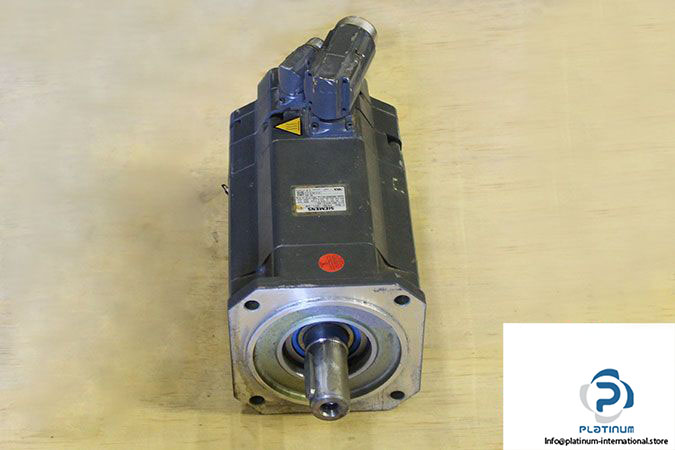

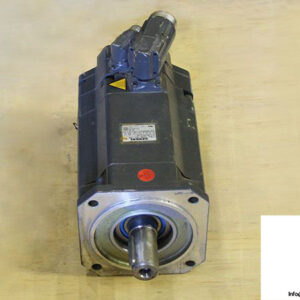

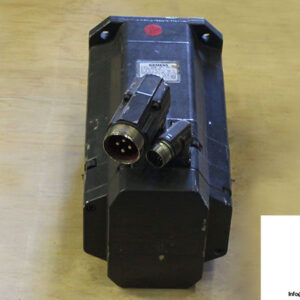

SIEMENS 1FK7085-7AF71-1EA3 SERVO MOTOR

The Siemens 1FK7085-7AF71-1EA3 is a high-precision servo motor designed for demanding industrial automation and motion control applications. Delivering reliable performance with excellent torque-to-inertia ratio, it ensures smooth and efficient operation in high-speed and high-accuracy systems.

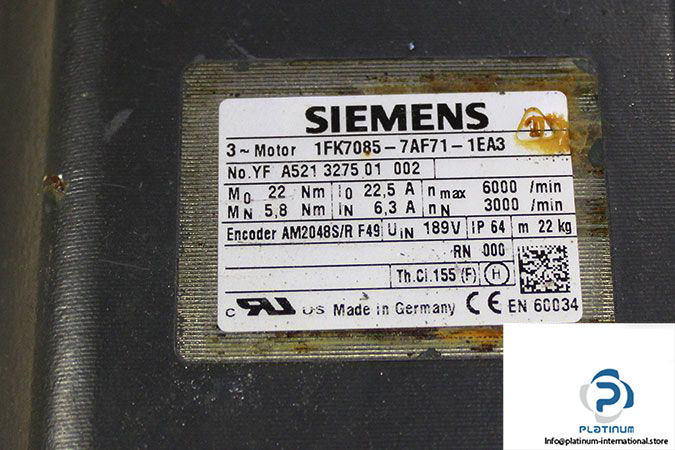

Manufacturer: Siemens
Type: Servo Motor
Model: 1FK7085-7AF71-1EA3
Part No.: A521 3275 01 002

Technical Information

• Rated Voltage: 189 V
• Rated Current: 6.3 A
• Stall Current: 22.5 A
• Rated Speed: 3000 min^-1
• Max. Speed: 6000 min^-1
• Rated Torque: 5.8 Nm
• Stall Torque: 22 Nm
• Thermal Class: F
• Protection Class: IP64
• Encoder Model: AM2048S/R F49
