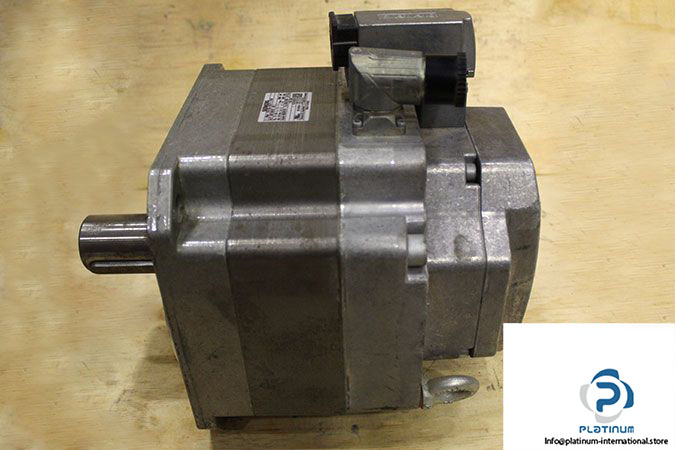

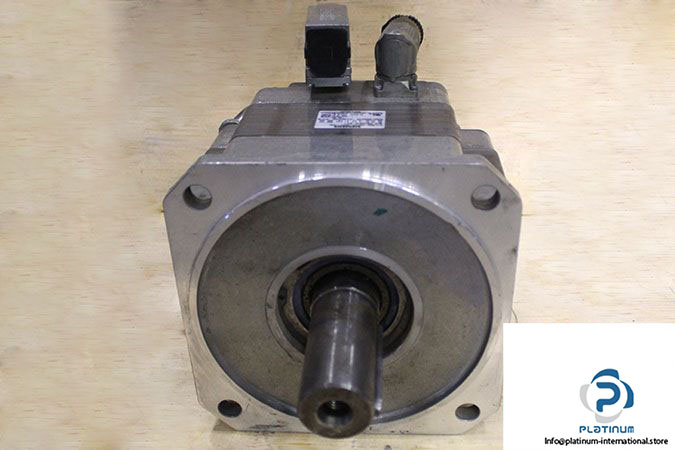

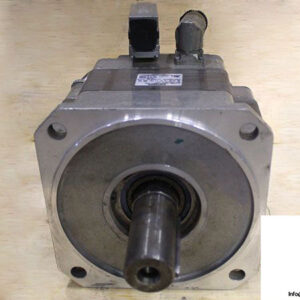

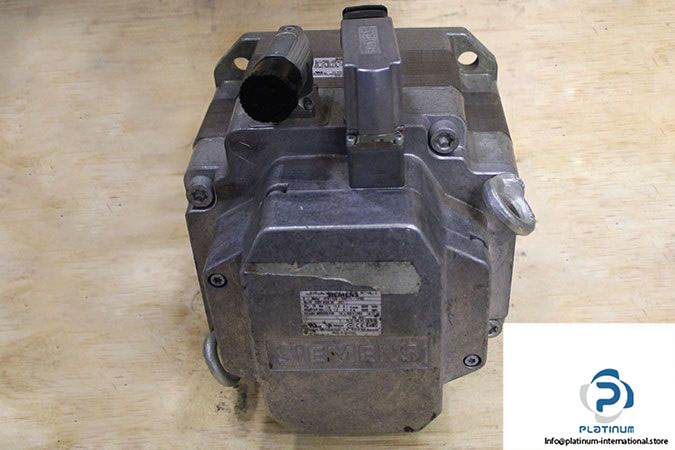

SIEMENS 1FK7100-5AF71-1FA0 SERVO MOTOR

The Siemens 1FK7100-5AF71-1FA0 is a high-performance servo motor designed for precise motion control in demanding industrial applications. Built with robust engineering and advanced technology, it delivers reliable torque, high-speed operation, and superior positioning accuracy for automation systems.

Manufacturer: Siemens
Type: Servo Motor
Product ID: 1FK7100-5AF71-1FA0
Nr. YF: C037 9420 03 001

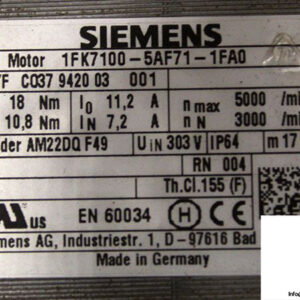

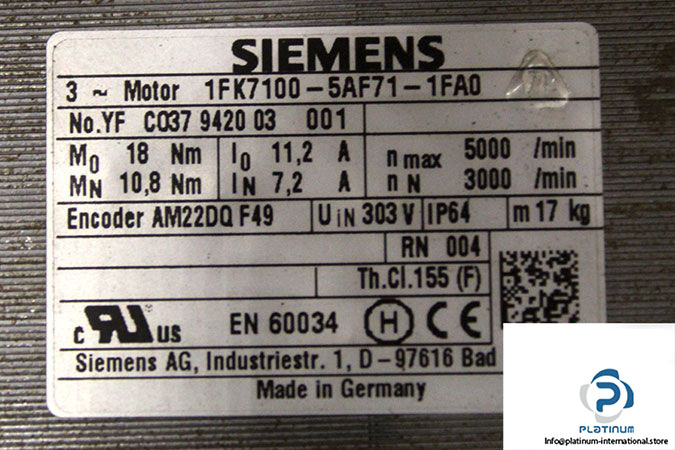

Technical Information

• Rated Voltage: 303 V
• Rated Current: 7.2 A
• Stall Current: 11.2 A
• Rated Speed: 3000 min^-1
• Max. Speed: 5000 min^-1
• Rated Torque: 10.8 Nm
• Stall Torque: 18 Nm
• Thermal Class: F
• Protection Class: IP64
• Encoder Model: AM22DQ F49
