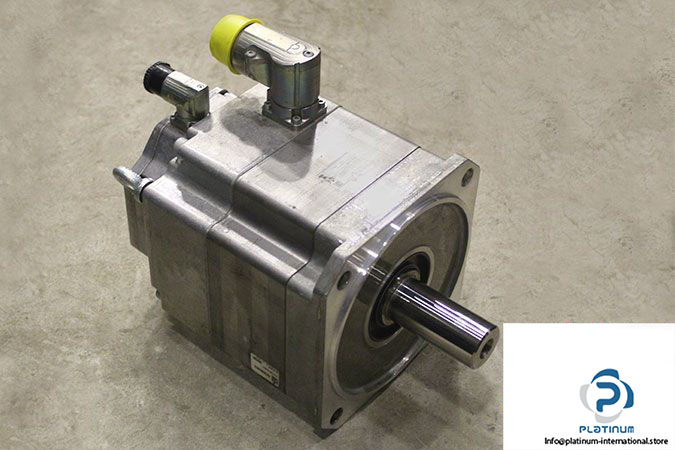

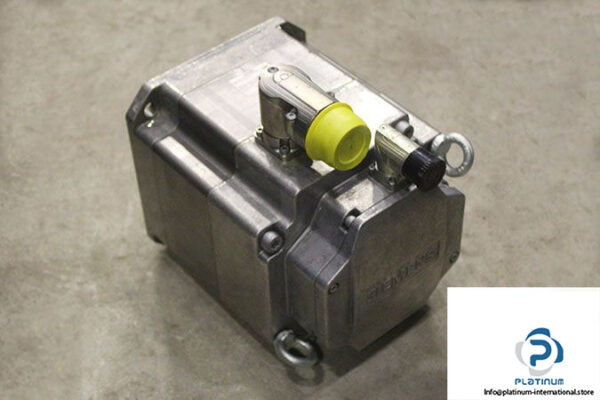

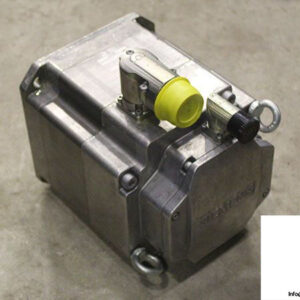

SIEMENS 1FK7 101-5AF71-1SH2 SYNCHRONOUS SERVO MOTOR

The Siemens 1FK7 101-5AF71-1SH2 synchronous servo motor is engineered for high-performance automation and motion control. Ideal for dynamic positioning tasks, this motor offers superior torque output, compact design, and dependable thermal performance.

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FK7 101-5AF71-1SH2
Part No.: FO622 0959 02 001
Series: 7

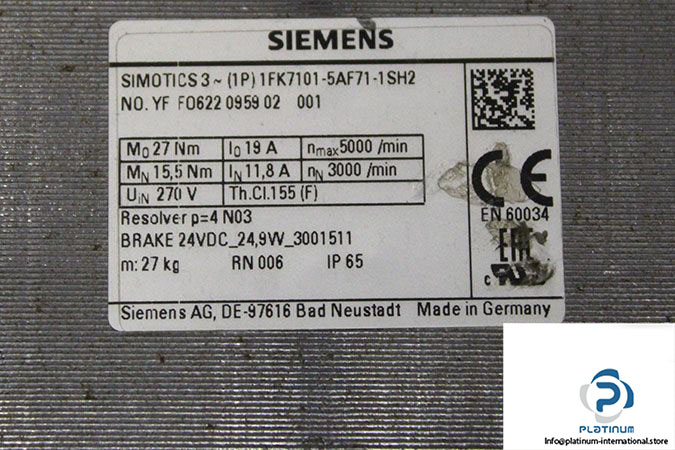

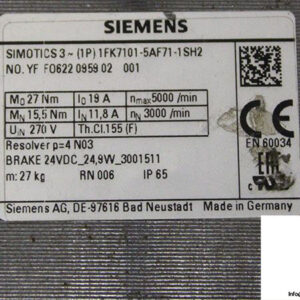

Technical Information

• Frame Size: 10
• Length: 1
• Rated Voltage: 270 V
• Rated Torque: 15.5 Nm
• Static Torque: 27 Nm
• Rated Speed: 3000 rpm
• Max. Speed: 5000 rpm
• Rated Current: 11.8 A
• Stall Current: 19 A
• Resolver: P=4 N03
• Brake Voltage: 24 VDC
• Brake Power: 24.9 W
• Brake Model: 3001511
• Protection Class: IP65
• Thermal Class: F
