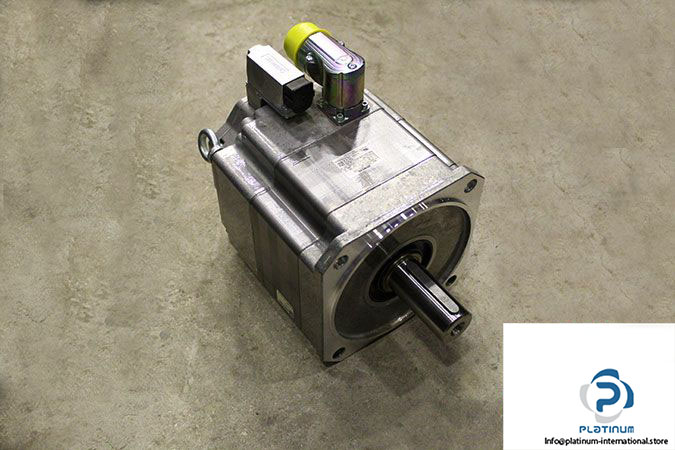

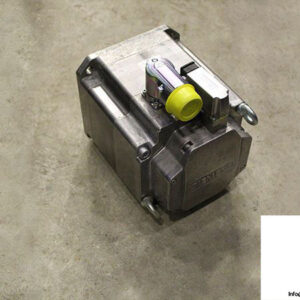

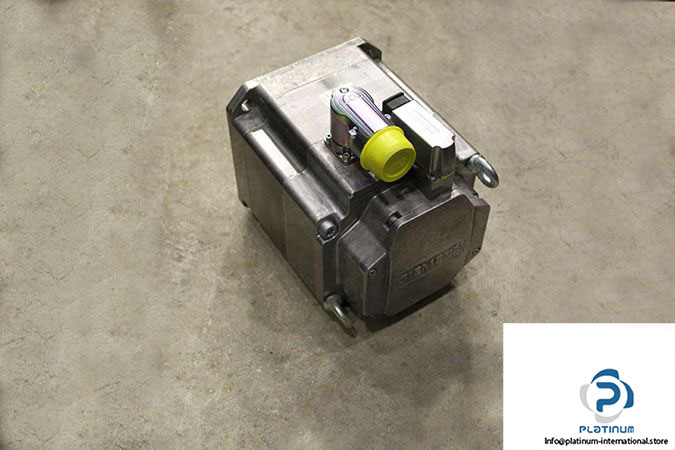

SIEMENS 1FK7101-5AF71-1UB2 SYNCHRONOUS SERVO MOTOR

The Siemens 1FK7101-5AF71-1UB2 synchronous servo motor offers high-performance torque and speed capabilities with advanced resolver feedback. Designed for dynamic motion control in industrial automation systems, it delivers reliable operation and efficient power usage, ideal for precise positioning applications.

Manufacturer: Siemens
Type: Synchronous Servo Motors
Model: 1FK7101-5AF71-1UB2
No yf: E5649 5176 01 001

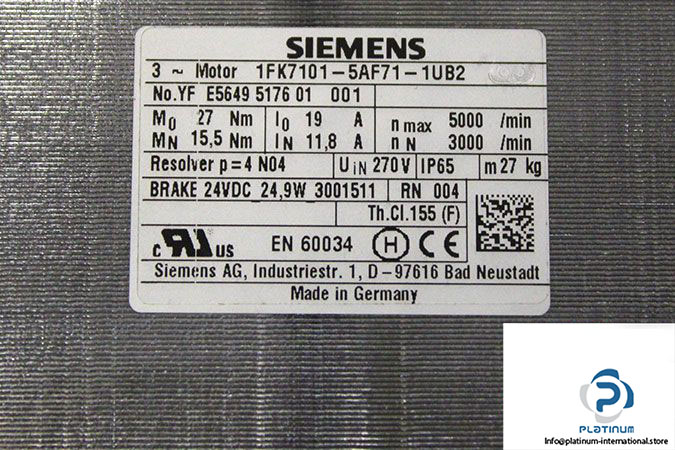

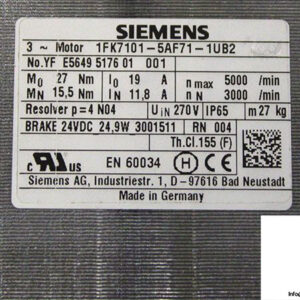

Technical Specifications

• Series: 7
• Frame Size: 10
• Length: 1
• Rated Voltage: 270 V
• Rated Torque: 15.5 Nm
• Rated Speed: 3000 rpm
• Max. Speed: 5000 rpm
• Rated Current: 11.8 A
• Stall Current: 19 A
• Static Torque: 27 Nm
• Encoder Type: Resolver p=4 N04
• Brake Part No.: 3001511
• Brake Voltage: 24 VDC
• Brake Power: 24.9 W
• Protection Class: IP65
• Thermal Class: F
