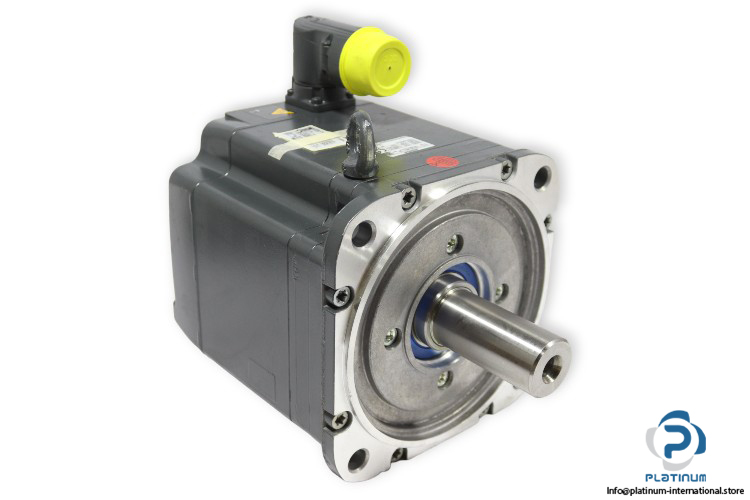

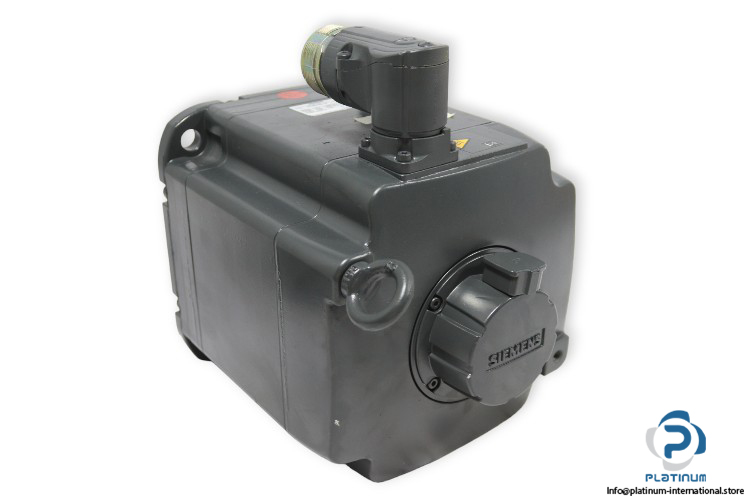

SIEMENS 1FK7103-2AC7 1-1QA0 SYNCHRONOUS SERVO MOTOR

This Siemens SIMOTICS synchronous servo motor is engineered for high-performance automation systems. With precision torque control, robust protection, and advanced cooling, it ensures reliable performance in dynamic industrial environments.

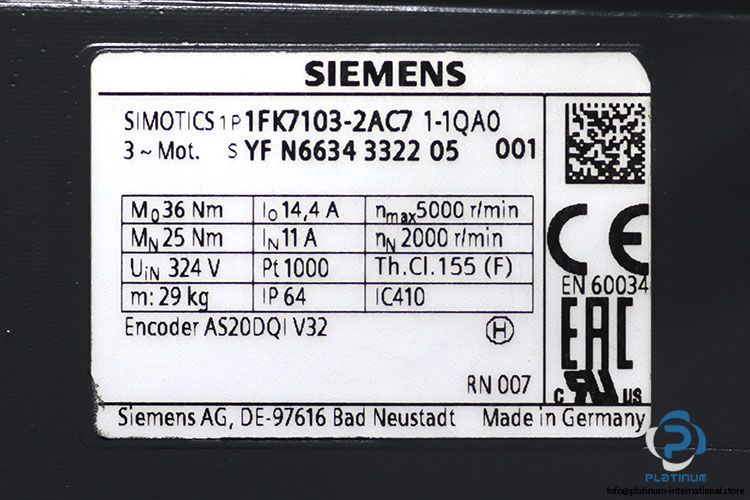

Manufacturer: SIEMENS
Type: Synchronous Servo Motor
Model: 1FK7103-2AC7 1-1QA0
NO.YF: N6634 3322 05 001
Range: SIMOTICS

Technical Information

• Rated Torque: 25 Nm
• Stall Torque: 36 Nm
• Rated Voltage: 324 V
• Rated Current: 11 A
• Stall Current: 14.4 A
• Rated Speed: 2000 min^-1
• Max. Speed: 5000 min^-1
• Thermal Class: F
• Protection Class: IP64
• Temperature Sensor: Pt1000 (-50 to +500 °C)
• Method of Cooling: IC411 “ Self Ventilated, Surface Cooled
• Encoder System: Encoder AS20DQI V32
