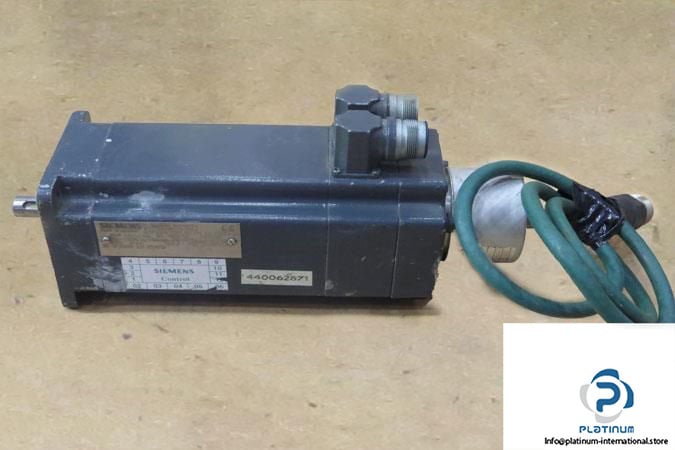

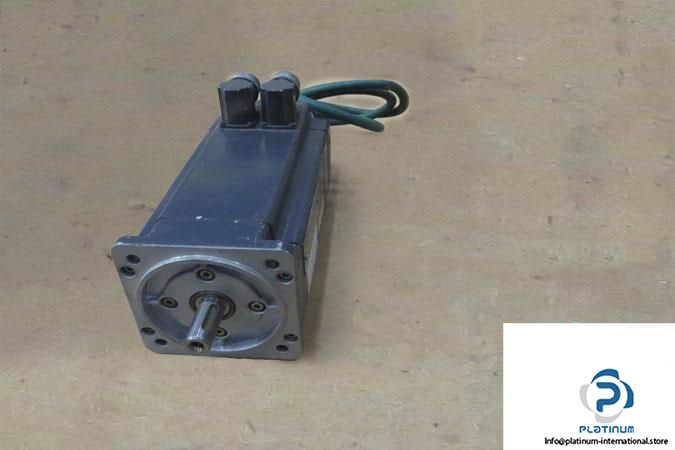

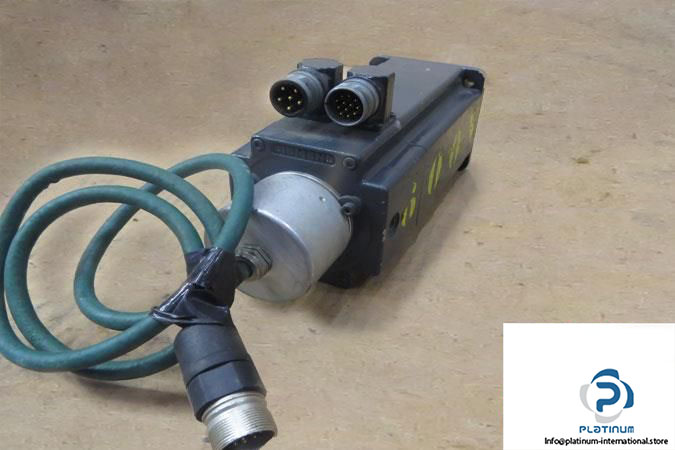

SIEMENS 1FT5044-1AF71-3EA0 AC BRUSHLESS SERVOMOTOR
The Siemens 1FT5044-1AF71-3EA0 is a high-performance AC brushless servomotor designed for demanding automation and motion control applications. With high torque, precise feedback, and excellent durability, it™s ideal for industries requiring robust servo solutions.
Manufacturer: SIEMENS
Type: AC Brushless Servomotor
Model: 1FT5044-1AF71-3EA0
Serial No.: N214 7521 01 011

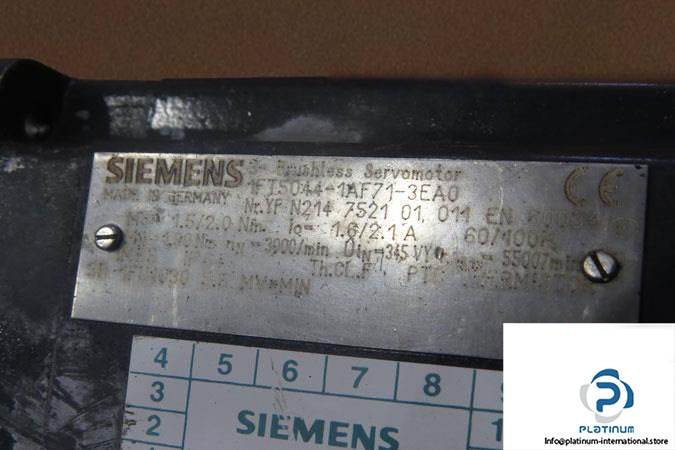

Motor Technical Specifications
- Voltage: 345 V
- Torque: 1.5/2.0 Nm Standstill; 1.9 Nm Rated
- Current: 1.6/2.1 A Standstill
- Rotational Speed: 3000 rpm Rated; 5500 rpm Max
- Protection Class: IP64
- Mounting Position: IM B5
- Temperature Sensor: Thermistor (Positive Temperature Coefficient)
- Ambient Temperature: 40 °C
- Insulation Class: Class F
Accessories & Encoder Details
- Accessories: 1FU1030

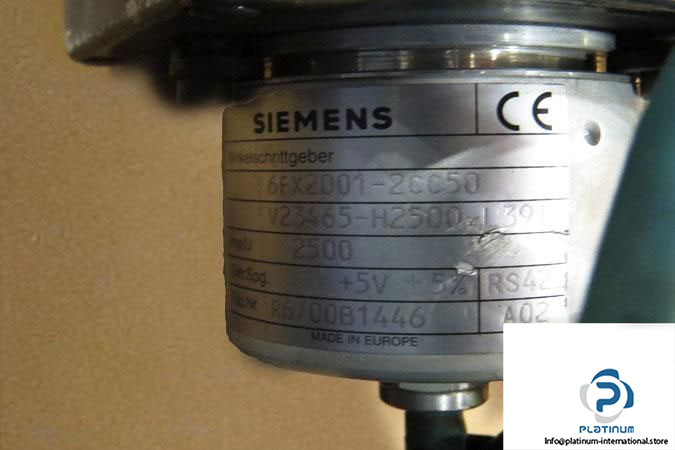

- Encoder Model: 6FX2001-2CC50
- Encoder Part No.: V23465-H2500-L30
- Resolution: 2500 Pulses per Revolution (PPR)
- Voltage Supply: 5 VDC
- Output Circuits: TTL (RS 422)
- Max Rotation Speed: 7200 rpm
- Shaft Diameter: 6 mm
- Shaft Length: 10 mm
