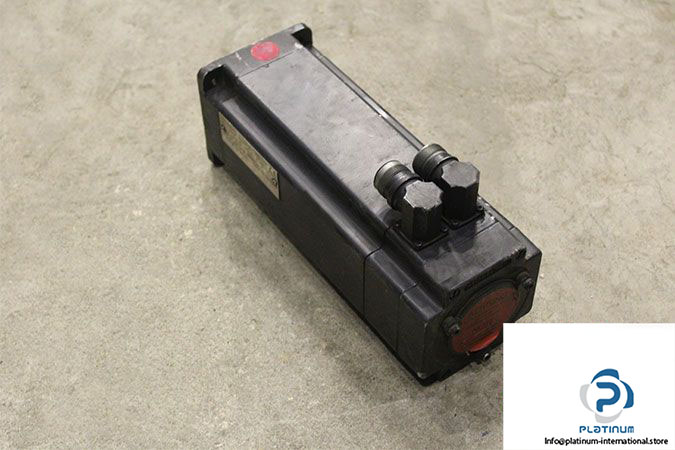

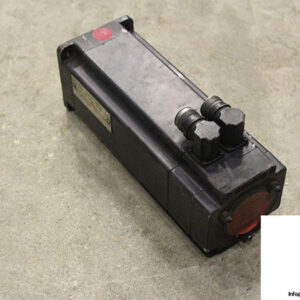

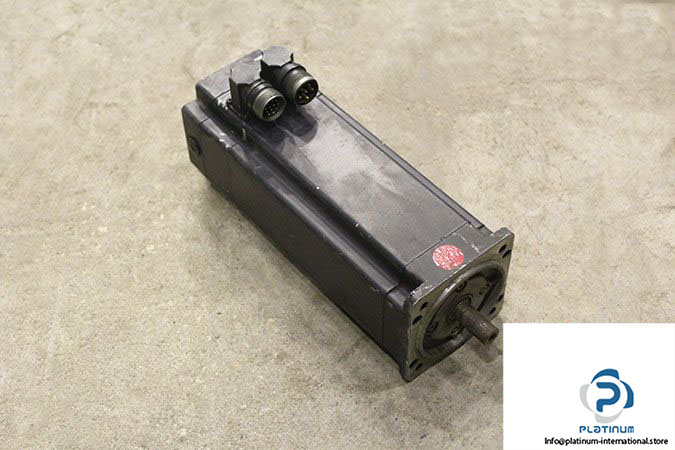

SIEMENS 1FT5 046-1AF71-4EG0 SYNCHRONOUS SERVO MOTOR
This Siemens synchronous servo motor is built for high-performance industrial automation, ensuring precision, reliability, and energy efficiency. Engineered according to EN 60034 standards, it delivers optimal torque-speed characteristics for continuous-duty applications.

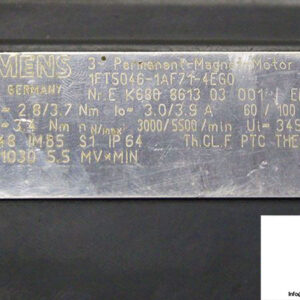

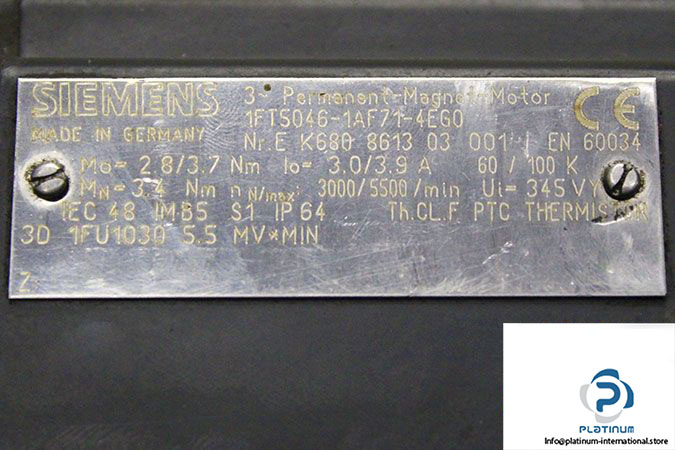

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FT5 046-1AF71-4EG0
Part No.: K680 8613 03 001
Standard: EN 60034
Series: 5
Technical Information
- Frame Size: 04
- Length: 6
- Rated Voltage: 345 V
- Rated Torque: 3.4 Nm
- Rated Speed: 3000 rpm
- Max Speed: 5500 rpm
- Standstill Current: 3.0 / 3.9 A
- Static Torque: 2.8 / 3.7 Nm
- Constant Voltage: 5.5 mVmin
- Duty: S1 Continuous
- Mounting Position [IM]: B5
- Protection Class: IP64
- Thermal Class: F
