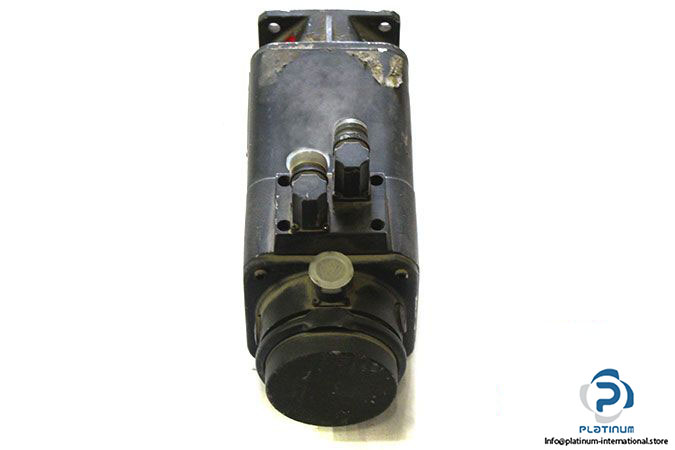

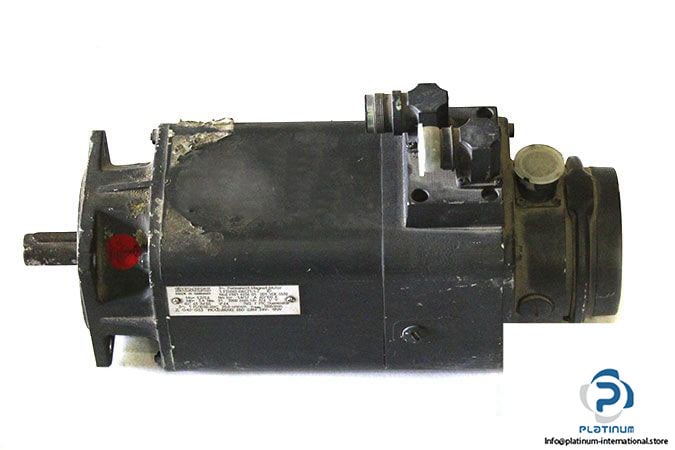

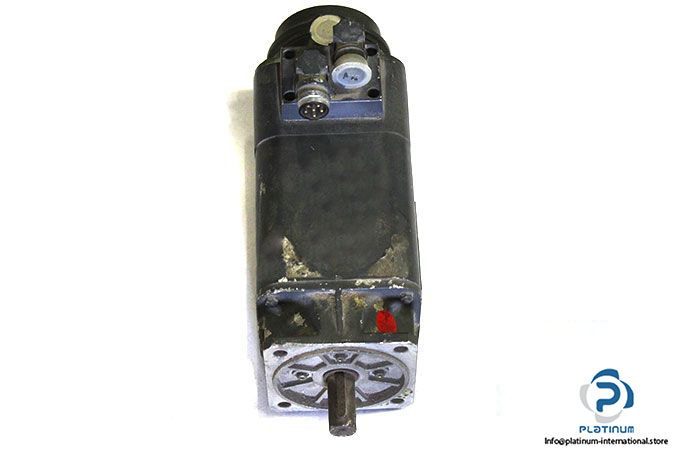

SIEMENS 1FT5062-0AC71-1-Z PERMANENT MAGNET MOTOR

The Siemens 1FT5062-0AC71-1-Z is a high-performance permanent magnet motor engineered for precision, durability, and efficiency. With excellent torque characteristics and integrated brake system, it is ideal for demanding automation and motion control applications.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Model: 1FT5062-0AC71-1-Z
Part No.: F961 6236 01 001
Standard: VDE 0530

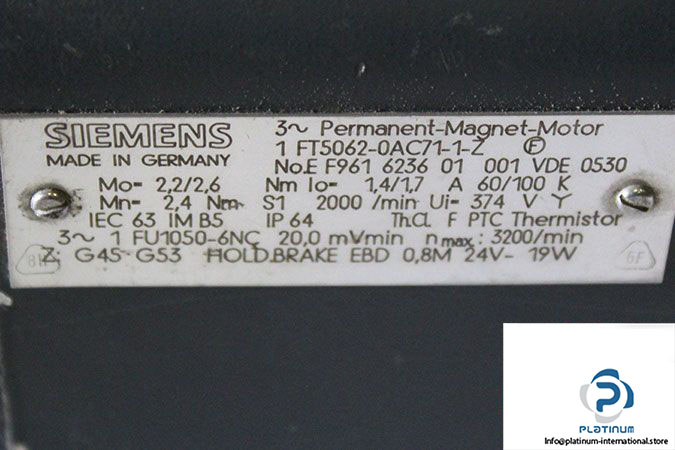

Technical Information

• Rated Voltage: 374 V Y
• Stall Current: 1.4 / 1.7 A
• Max. Speed: 3200 min^-1
• Rated Speed: 2000 min^-1
• Rated Torque: 2.4 Nm
• Stall Torque: 2.2 / 2.6 Nm
• Duty: S1
• Thermal Class: F
• Tacho Generator: 1FU1050-6NC
• Voltage Constant: 20 mV/min
• Brake Model: EBD 0.8m
• Brake Voltage: 24 V
• Brake Power: 19 W
• Protection Class: IP64
