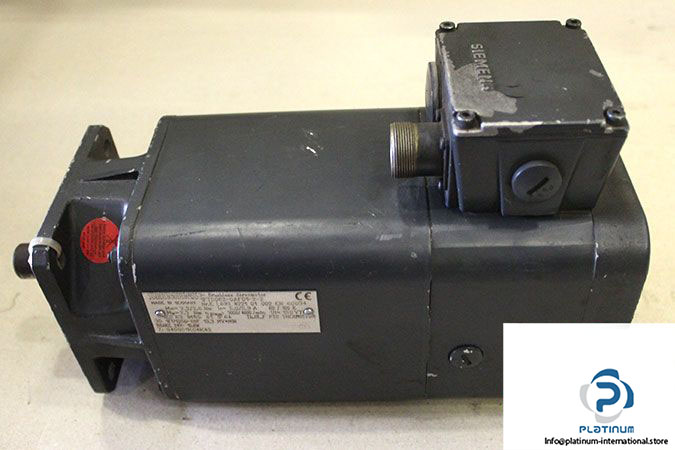

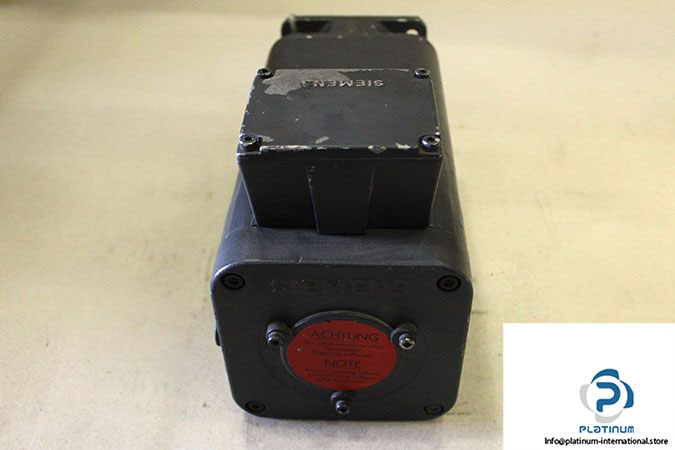

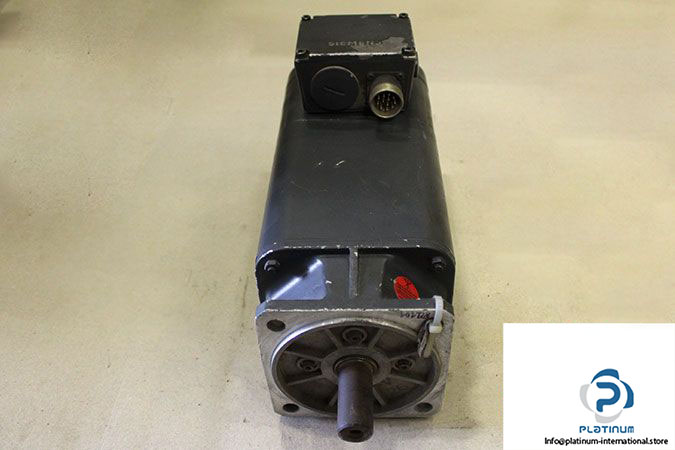

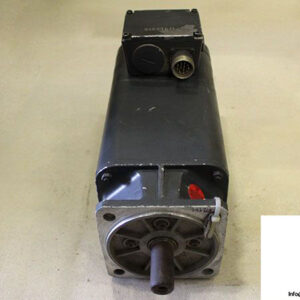

SIEMENS 1FT5 062-0AF01-2-Z BRUSHLESS SERVO MOTOR

The SIEMENS 1FT5 062-0AF01-2-Z is a high-precision brushless servo motor engineered for continuous operation and excellent dynamic performance. Ideal for automation and industrial drive systems requiring reliability and tight control.

Manufacturer: SIEMENS
Type: Brushless Servo Motor
Product ID: 1FT5 062-0AF01-2-Z
Nr. E: L693 8221 01 002
Ref No.: G45G51K04K42
Standard: EN 60034

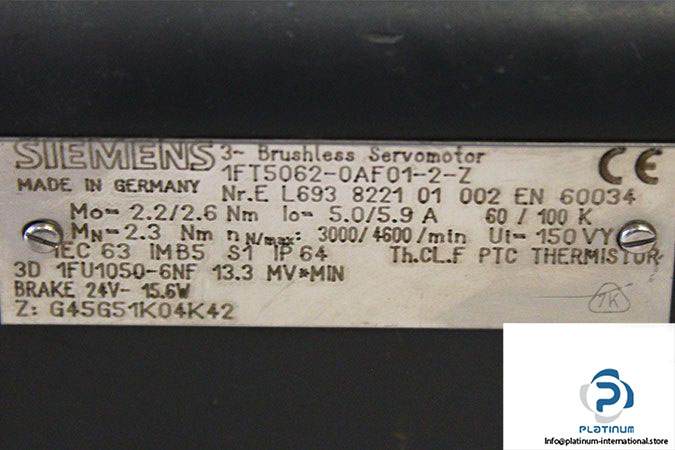

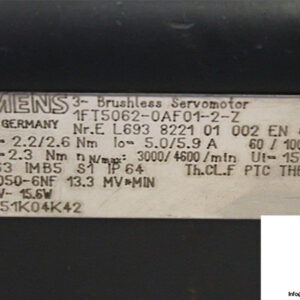

Technical Information

• Rated Voltage: 150 V Y
• Stall Current: 5.0 / 5.9 A
• Rated Speed: 3000 min^-1
• Max. Speed: 4600 min^-1
• Rated Torque: 2.3 Nm
• Stall Torque: 2.2 / 2.6 Nm
• Voltage Brake: 24 V
• Power Brake: 15.6 W
• Duty: S1
• Thermal Class: F
• Protection Class: IP64
• Tacho Generator: 1FU1050-6NF
• Constant Voltage: 13.3 mV.min
