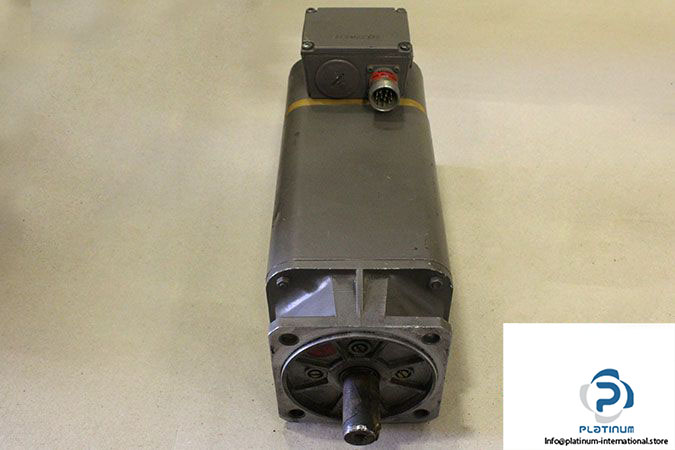

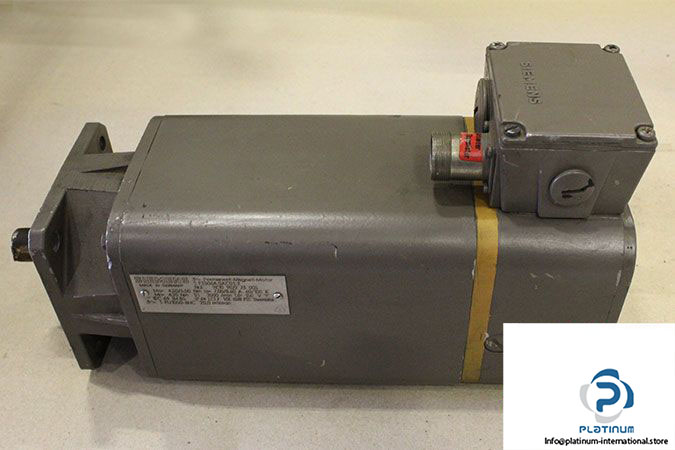

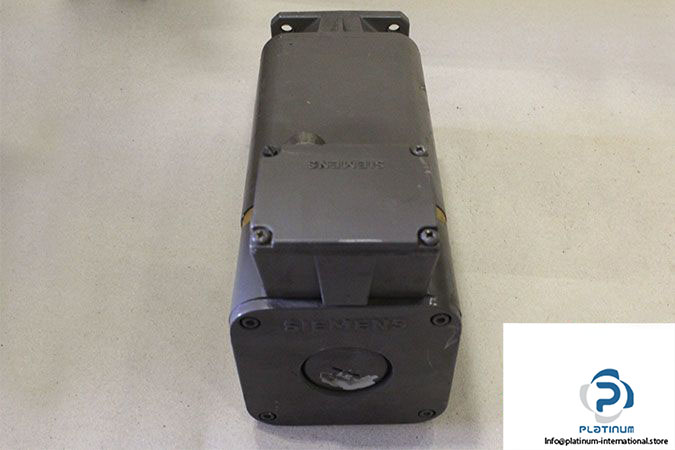

SIEMENS 1FT5 064-0AC01-2 PERMANENT MAGNET MOTOR

The Siemens 1FT5 064-0AC01-2 is a robust permanent magnet motor built for precision and long-term industrial use. With a rated speed of 2000 min»¹ and high torque output, this motor ensures consistent and efficient performance in automation and drive applications.

Manufacturer: SIEMENS
Type: Permanent Magnet Motor
Product ID: 1FT5 064-0AC01-2
Nr. E: 9K10 9072 73 005

Technical Information

• Rated Voltage: 150 V Y
• Stall Current: 7.00 / 8.60 A
• Rated Speed: 2000 min»¹
• Rated Torque: 4.20 Nm
• Stall Torque: 4.50 / 5.50 Nm
• Duty: S1
• Thermal Class: F
• Protection Class: IP64
• Tacho Generator: 1 FU1050-6HC
• Voltage Constant: 20 mV/min
