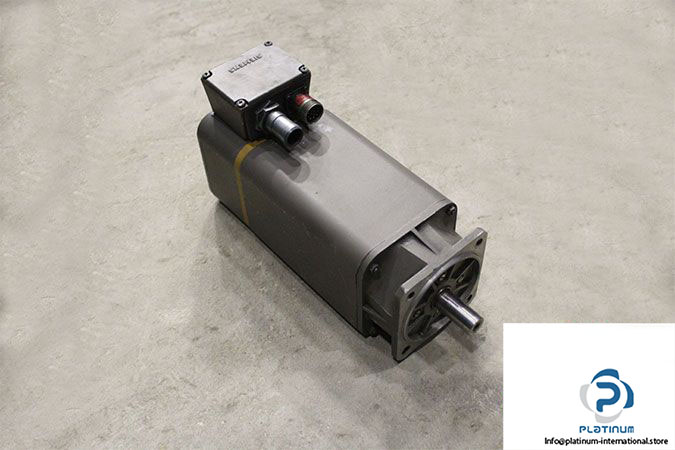

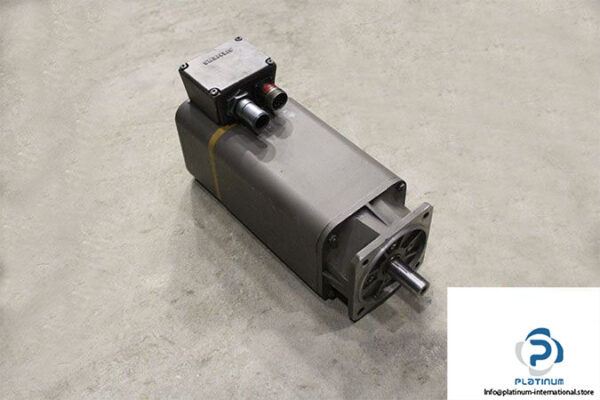

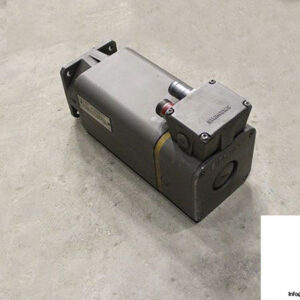

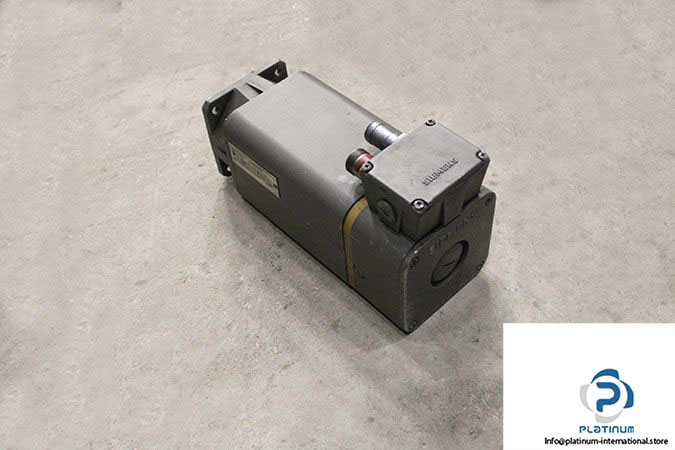

SIEMENS 1FT5064-0AF01-2-Z SYNCHRONOUS SERVO MOTOR

Engineered for precision, efficiency, and reliability, the Siemens 1FT5064-0AF01-2-Z synchronous servo motor is ideal for continuous duty industrial automation. With high torque density, compact design, and IP67 protection, it excels in harsh environments and demanding applications.

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FT5064-0AF01-2-Z

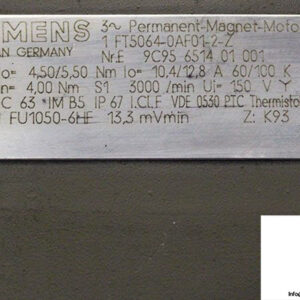

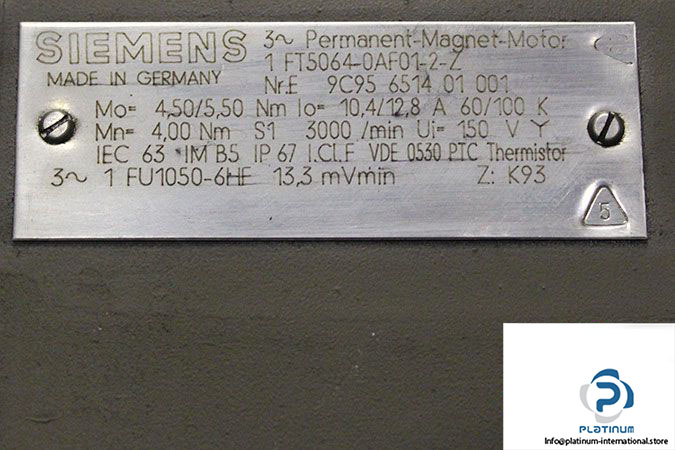

Part No.: 9C95 6514 01 001

Technical Information

• Series: 5
• Frame Size: 06
• Length: 4
• Rated Voltage: 150 V
• Rated Torque: 4 Nm
• Rated Speed: 3000 rpm
• Standstill Current: 10.4/12.8 A
• Standstill Torque: 4.5/5.5 Nm
• Constant Voltage: 13.3 mVmin
• Duty: S1 Continuous
• Mounting Position [IM]: B5
• Tacho Generator: 1 FU1050-6HF
• Protection Class: IP67
• Thermal Class: F
