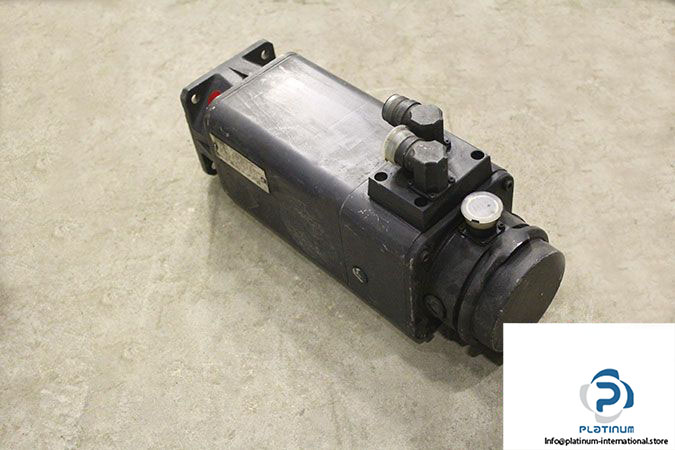

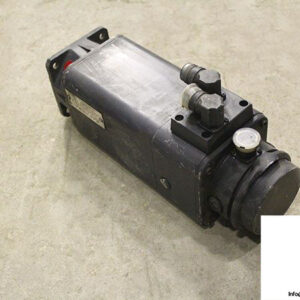

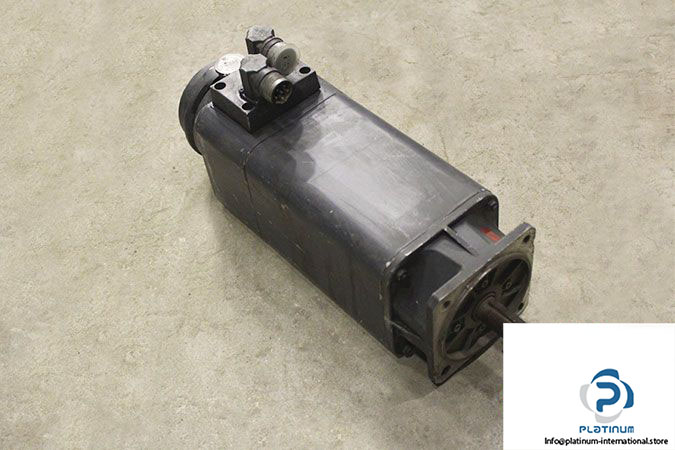

SIEMENS 1FT50640AF711Z PERMANENT MAGNET MOTOR

The Siemens 1FT50640AF711Z is a precision-engineered permanent magnet motor designed for continuous-duty industrial applications. Built to the highest standards of efficiency and reliability, this motor delivers consistent performance, ideal for automated systems requiring high torque and speed control.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Model: 1FT50640AF711Z
Part No.: F961 6236 03 001
Standard: VDE 0530

Technical Information

• Nominal Voltage: 375 V (Star)
• Stall Current: 4.3/5.3 A
• Max. Speed: 4800 min»¹
• Nominal Speed: 3000 min»¹
• Nominal Torque: 4.2 Nm
• Stall Torque: 4.5/5.5 Nm
• Duty: S1 (Continuous)
• Mounting Position: IM B5
• Protection Class: IP64
• Thermal Class: F
• Brake Voltage: 24 V
• Brake Power: 12 W
• Brake Model: EBD-0.8M
• Tachogenerator: 1FU1050-6NF
• Constant Voltage: 13.3 mV/min
