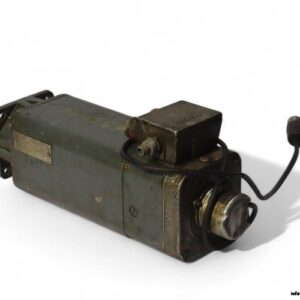

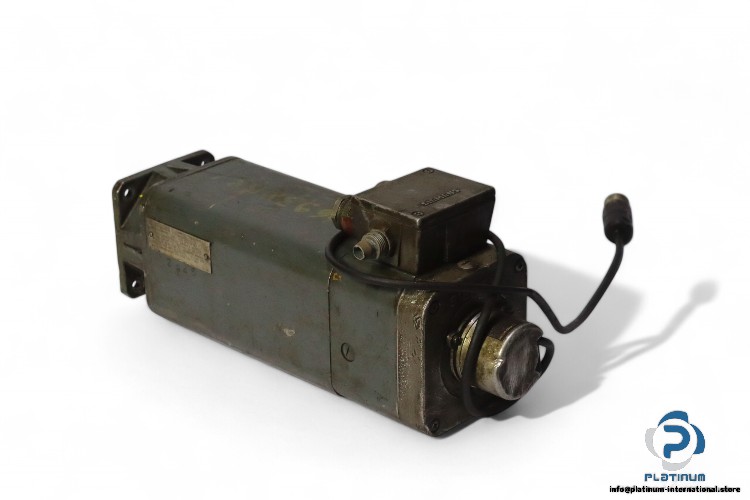

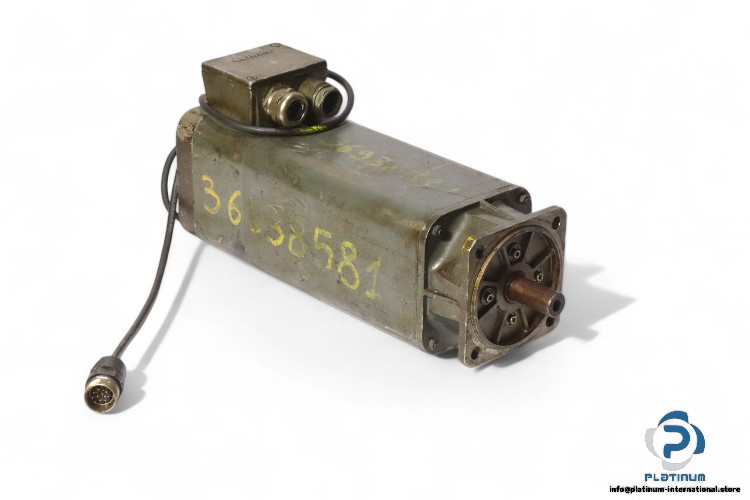

SIEMENS Permanent Magnet Motor with HEIDENHAIN Incremental Encoder
The SIEMENS 1FT5066-0AF01-0-Z Permanent Magnet Motor is designed for high-efficiency performance in industrial applications, offering reliable torque and speed for demanding environments. The motor is paired with the HEIDENHAIN ROD 426 2500 03S12-03 incremental encoder for precise position feedback and enhanced control.
Manufacturer: SIEMENS
Type: Permanent Magnet Motor
Model: 1FT5066-0AF01-0-Z

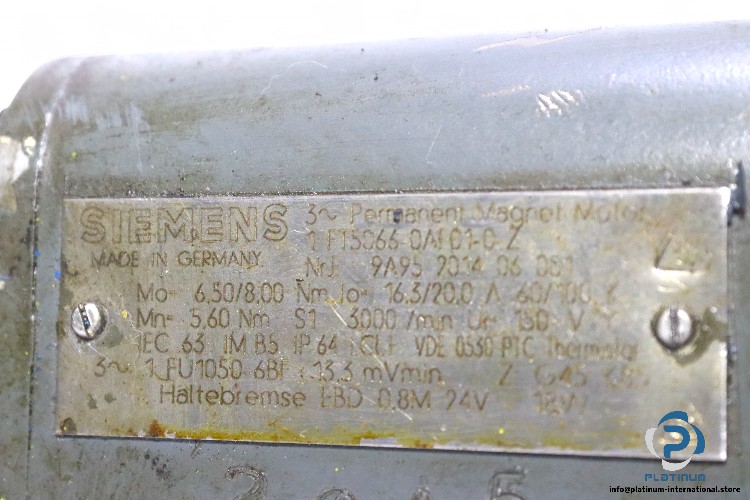

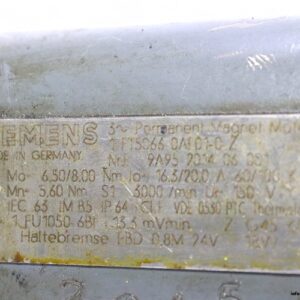

Technical Specifications
- Rated Voltage: 150 V
- Stall Current: 16.3 / 20 A
- Rated Speed: 3000 RPM
- Rated Torque: 5.6 Nm
- Stall Torque: 6.5 / 8.0 Nm
- Duty: S1
- Thermal Class: F
- Protection Class: IP64
- Attached with: EBD 0.8M Brake
- Brake Voltage: 24 V
- Attached with: HEIDENHAIN ROD 426 2500 03S12-03 Incremental Encoder

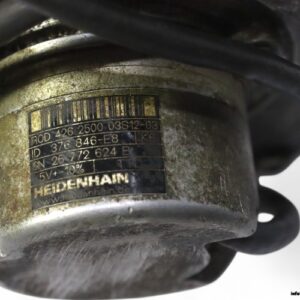

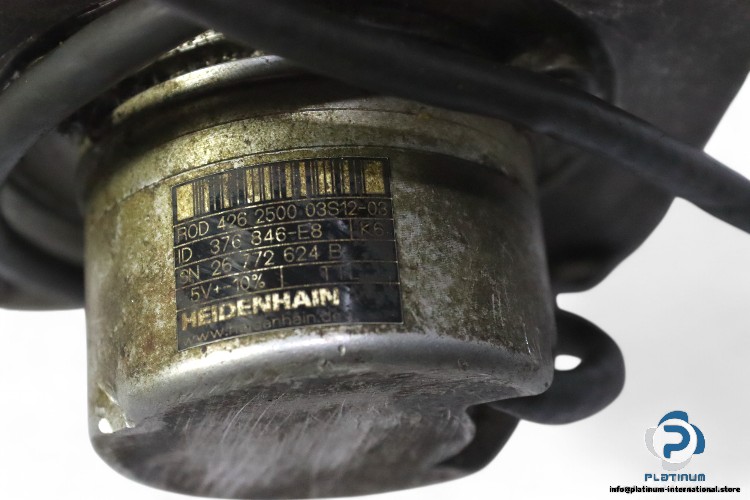

HEIDENHAIN Incremental Encoder:
- Manufacturer: HEIDENHAIN
- Type: Incremental Encoder
- Model: ROD 426 2500 03S12-03
- ID No.: 376 846-E8
- Flange Design: Synchro Flange
- Shaft Design: Solid Shaft
- Shaft Diameter: 6 mm
- Speed Max: 16000 RPM
- Resolution: 2500 Pulse Per Revolution (PPR)
- Voltage Supply: 5 V DC
