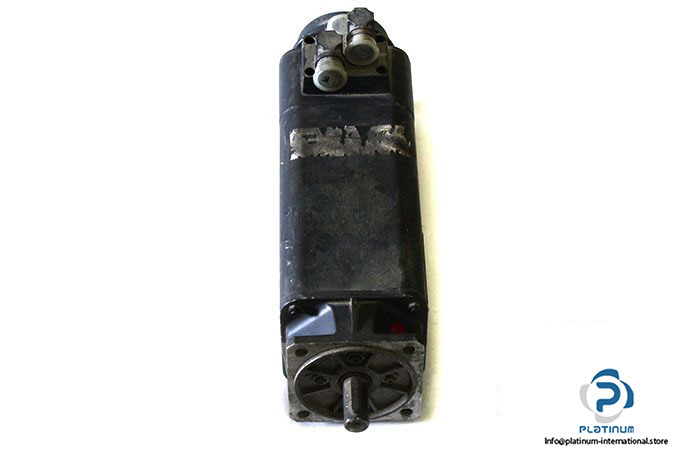

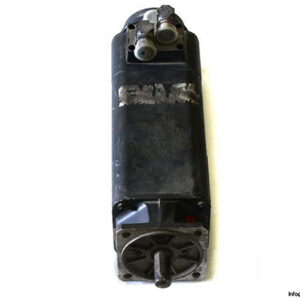

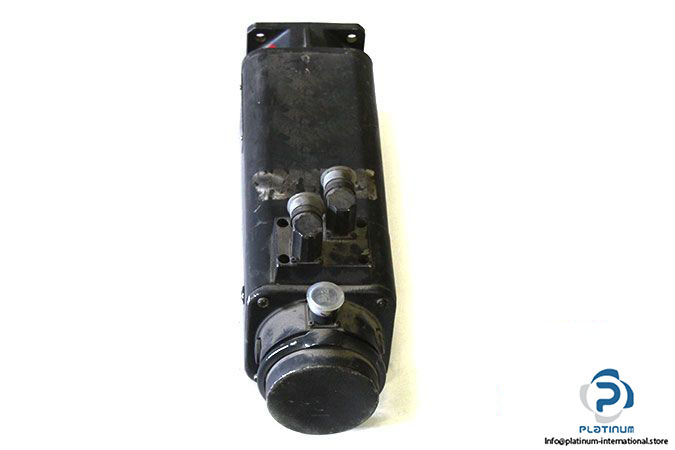

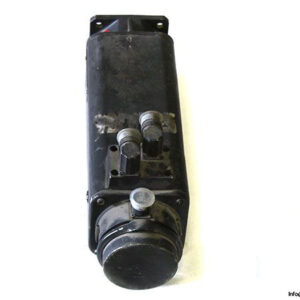

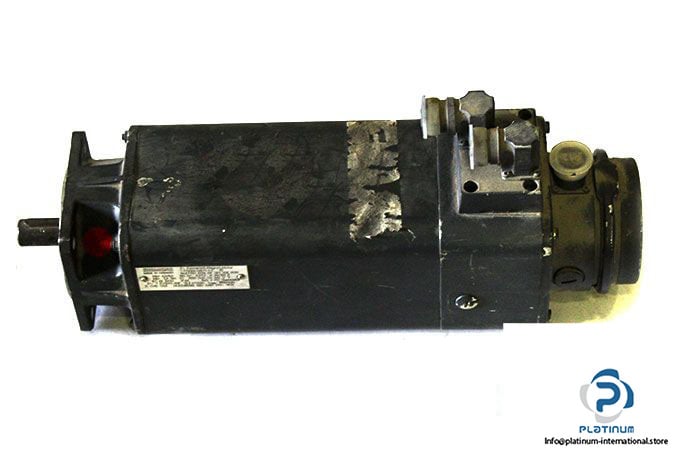

SIEMENS 1FT5066-0AF71-1-Z PERMANENT MAGNET MOTOR

This premium-grade Siemens permanent magnet motor is designed for continuous-duty industrial applications requiring precision, torque stability, and enhanced protection. Built to VDE 0530 standard, it features robust design and integrated brake and tacho components for versatile control and performance.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Model: 1FT5066-0AF71-1-Z
Part No.: F961 6236 04 001
Standard: VDE 0530

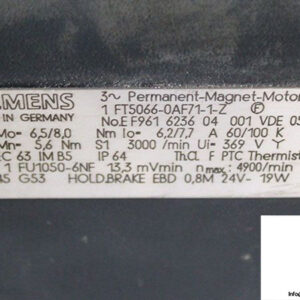

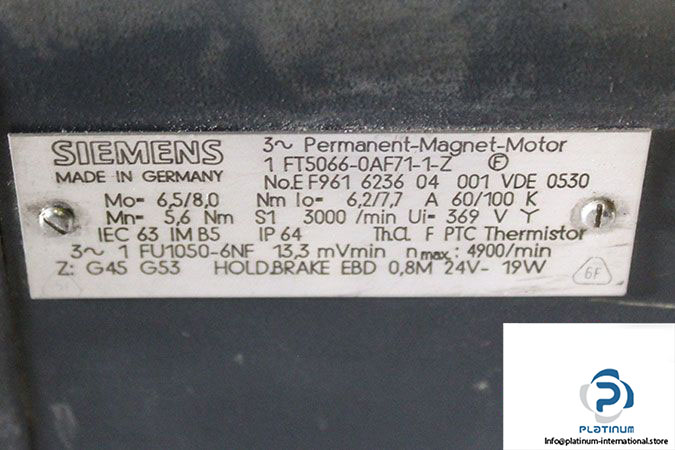

Technical Information

• Rated Voltage: 369 V Y
• Stall Current: 6.2 / 7.7 A
• Max. Speed: 4900 min^-1
• Rated Speed: 3000 min^-1
• Rated Torque: 5.6 Nm
• Stall Torque: 6.5 / 8 Nm
• Duty: S1 (Continuous)
• Thermal Class: F
• Protection Class: IP64

Additional Features

• Tacho Generator: 1FU1050-6NF
• Voltage Constant: 13.3 mV/min
• Brake Model: EBD 0.8M
• Brake Voltage: 24 V
• Brake Power: 19 W
