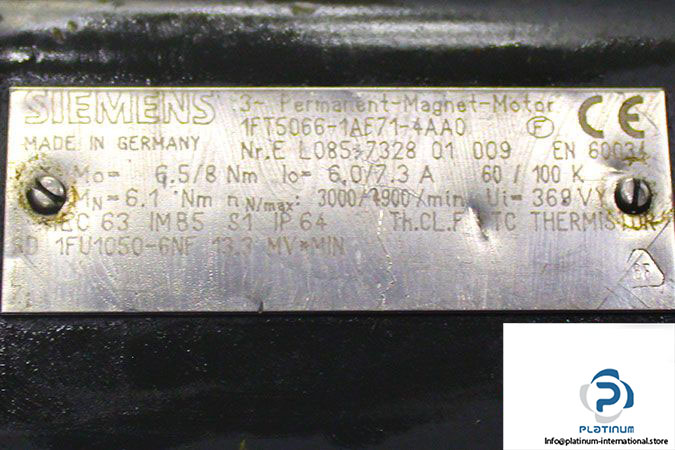

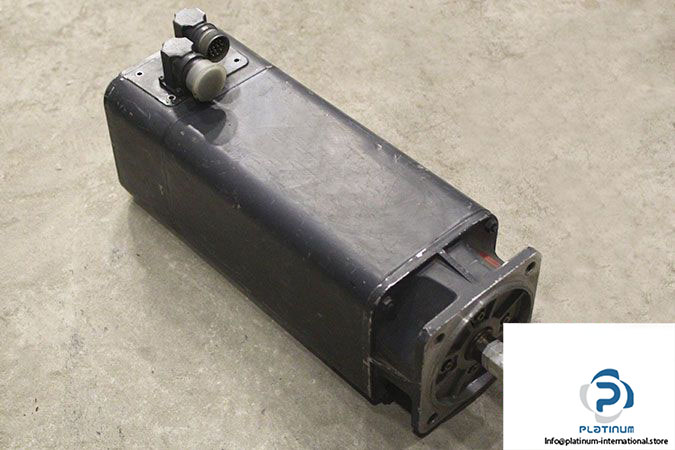

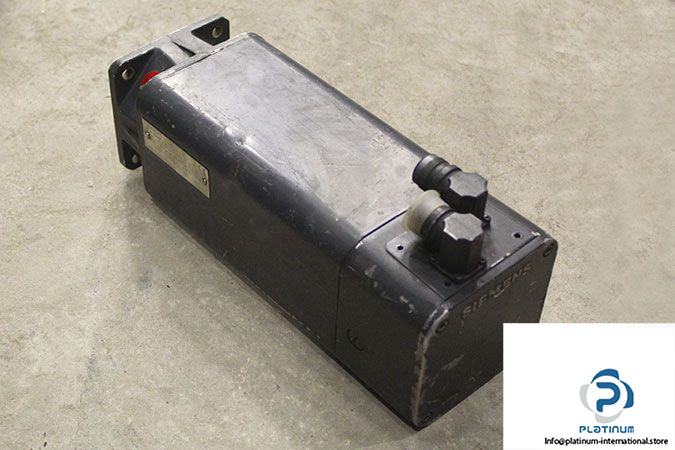

SIEMENS 1FT5 066-1AF71-4AA0 PERMANENT MAGNET MOTOR

Engineered for performance and reliability, the Siemens 1FT5 066-1AF71-4AA0 Permanent Magnet Motor is ideal for high-efficiency motion control systems. Designed for continuous operation, it ensures optimal torque stability and speed in demanding industrial environments.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Model: 1FT5 066-1AF71-4AA0
Part No.: L085 7328 01 009
Tacho generator.: 1FU1050-6NF
Series: 5

Technical Information

• Frame Size: 06
• Length: 6
• Rated Voltage: 369 V
• Rated Torque: 6.1 Nm
• Static Torque: 6.5 / 8 Nm
• Stall Current: 6 / 7.3 A
• Rated Speed: 3000 rpm
• Max. Speed: 4900 rpm
• Constant Voltage: 13.3 mV*min
• Duty: S1 Continuous
• Mounting Position [IM]: B5
• Protection Class [IP]: 64
• Thermal Class: F
