Manufacturer: SIEMENS

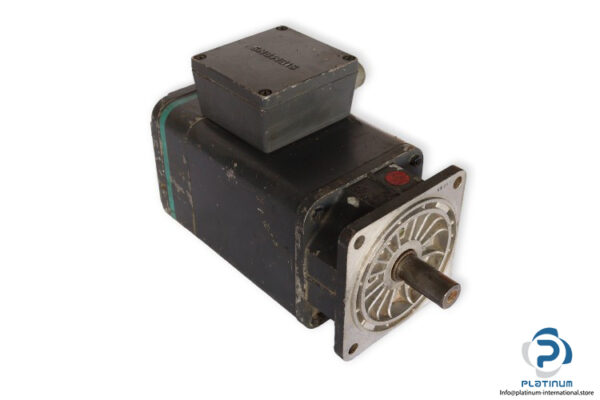

Type: Permanent Magnet Motor
Model: 1FT5072-0AC71-2

Power supply: 3 phase AC
Frame Size: 7
Length: 2
Rated Voltage: 372 V star delta
Rated torque: 11 Nm
Static Torque: 7.9/9.5 Nm
Stall Current: 6.3/7.5 A
Rated Speed: 2000 rpm
Rated Current: 6.3 A
Maximum Torque: 40 Nm
Maximum current: 29 A
Maximum Speed: 3200 rpm
Voltage constant: 124 V/1000 RPM
Torque constant: 1.10 Nm/A
Mounting Position: B5
Duty: S1
Protection Class: IP 64
Thermal Class: F
