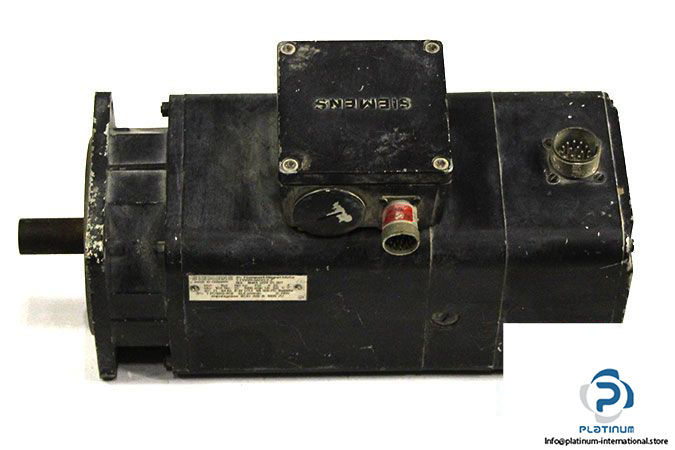

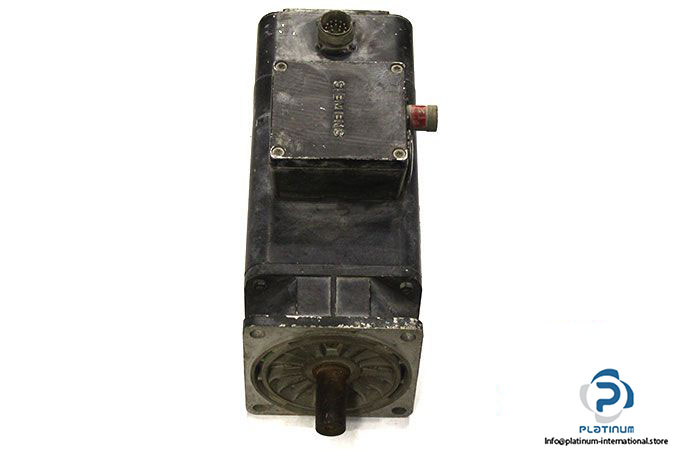

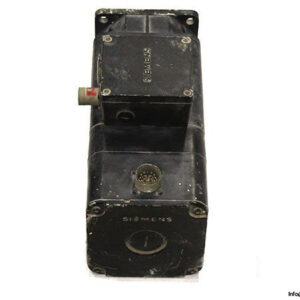

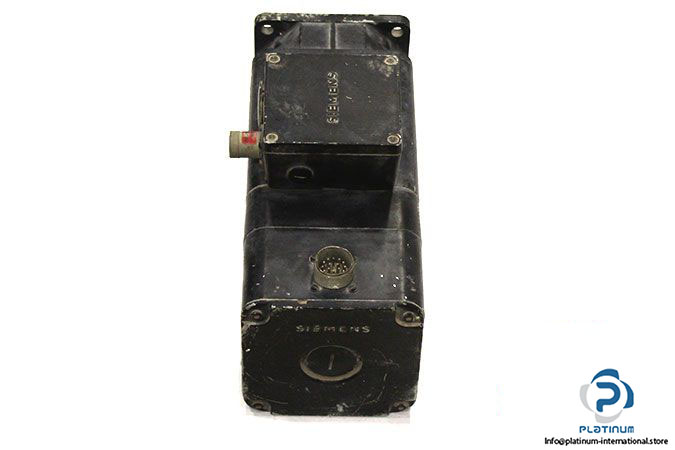

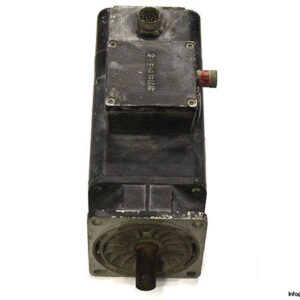

SIEMENS 1FT5072-0AF01-2-Z PERMANENT MAGNET MOTOR

The Siemens 1FT5072-0AF01-2-Z Permanent Magnet Motor is engineered for consistent performance in precision-driven industrial automation. With high torque stability, efficient thermal design, and robust protection class, this motor is ideal for continuous duty applications.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Model: 1FT5072-0AF01-2-Z
Part No.: 8M64 5724 01 001

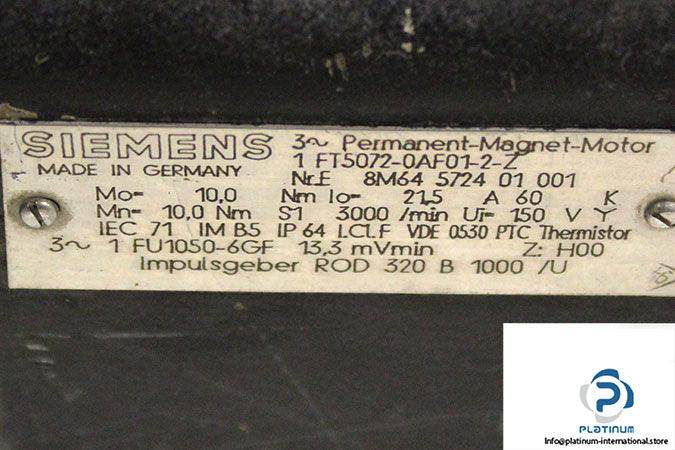

Technical Information

• Rated Voltage: 150 V Y
• Stall Current: 21.5 A
• Rated Speed: 3000 min»¹
• Rated Torque: 10 Nm
• Stall Torque: 10 Nm
• Duty: S1 (Continuous)
• Insulation Class: F
• Protection Class: IP64

Additional Features

• Tacho Generator: 1FU1050-6GF
• Voltage Constant: 13.3 mV/min
• Pulse Generator Model: ROD 320 B 1000/U
