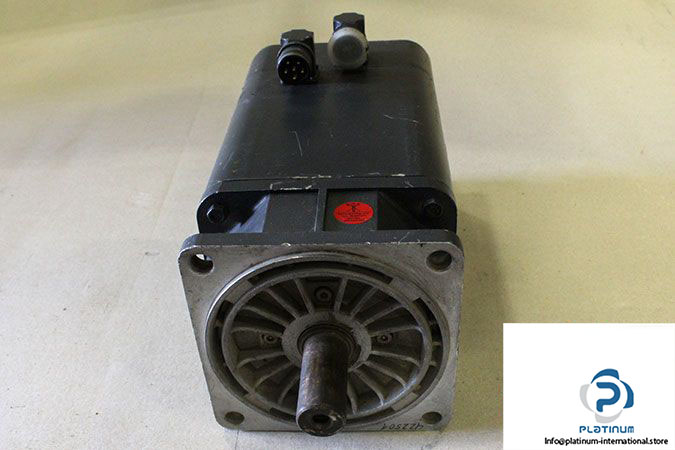

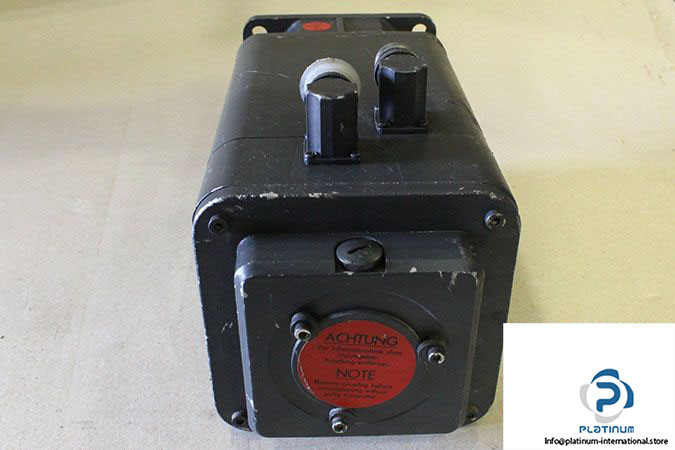

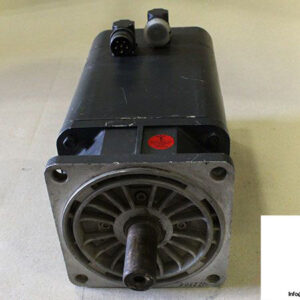

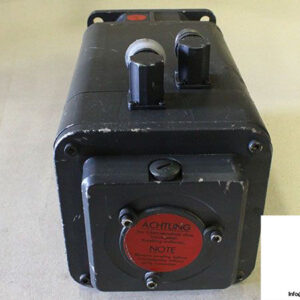

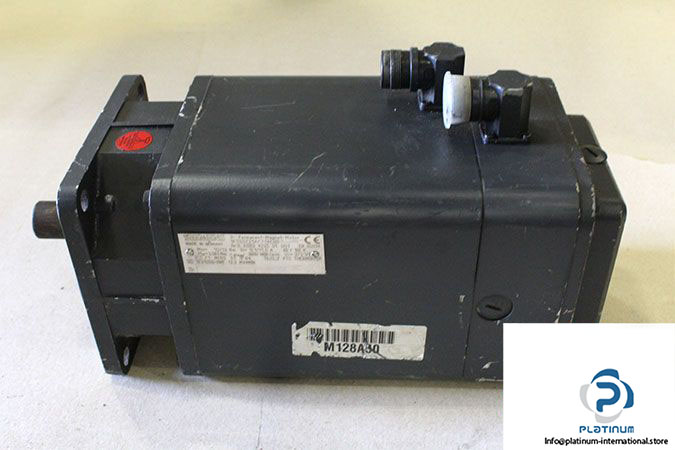

SIEMENS 1FT50721AF714EG0 PERMANENT MAGNET MOTOR

The SIEMENS 1FT50721AF714EG0 is a high-performance permanent magnet motor engineered for continuous duty in demanding industrial environments. With excellent torque characteristics and high-speed capabilities, it ensures efficient and reliable operation in automation and motion control systems.

Manufacturer: SIEMENS
Type: Permanent Magnet Motor
Product ID: 1FT50721AF714EG0

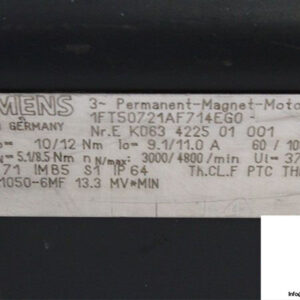

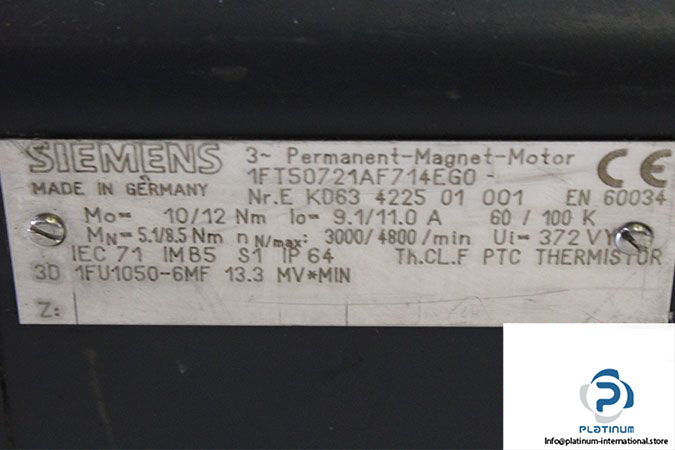

Nr. E: K063 4225 01 001

Technical Information

• Rated Voltage: 372 V Y
• Stall Current: 9.1 / 11.0 A
• Rated Speed: 3000 min»¹
• Max. Speed: 4800 min»¹
• Rated Torque: 5.1 / 8.5 Nm
• Stall Torque: 10 / 12 Nm
• Duty: S1 (Continuous Duty)
• Thermal Class: F
• Tacho Generator: 1FU1050-6MF
• Voltage Constant: 13.3 mV·min
• Protection Class: IP64 (Dust-tight, Splash Resistant)
