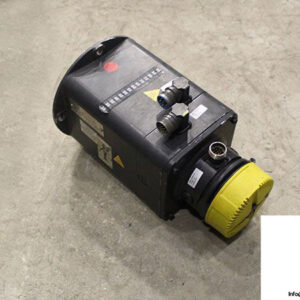

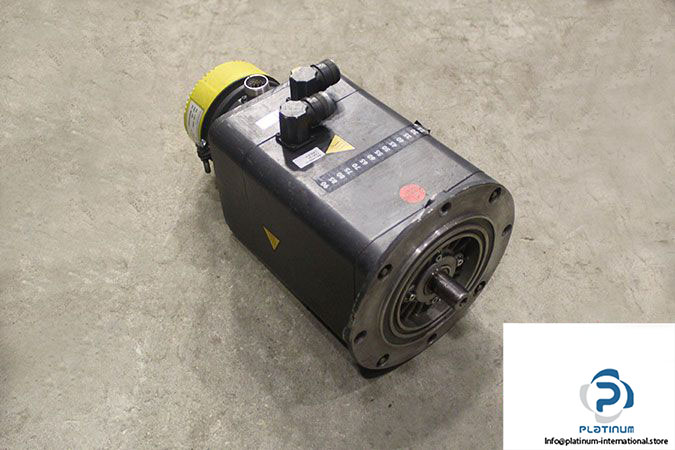

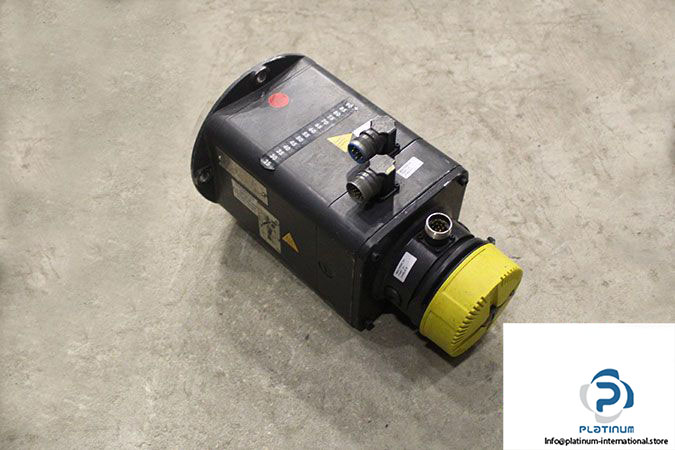

SIEMENS 1FT5073-0AF71-1-Z PERMANENT MAGNET MOTOR

The Siemens 1FT5073-0AF71-1-Z is a high-efficiency permanent magnet motor from Series 5, built for precise motion control and high dynamic performance in industrial automation environments. It ensures reliable performance with integrated braking and feedback systems.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Model: 1FT5073-0AF71-1-Z
Part No.: JN89 5481 01 004
Series: 5

Technical Information

• Frame Size: 07
• Length: 3
• Rated Voltage: 372 V
• Static Torque: 7/9 Nm
• Rated Current: 7.5 A
• Stall Current: 6.5/8.4 A
• Rated Speed: 3000 rpm
• Max. Speed: 4800 rpm
• Constant Voltage: 13.3 mVmin
• Mounting Position: B5
• Protection Class: IP64
• Insulation Class: F

Brake & Feedback

• Brake Voltage: 24 VDC
• Brake Power: 19.3 W
• Brake Model: EBD 0.4B

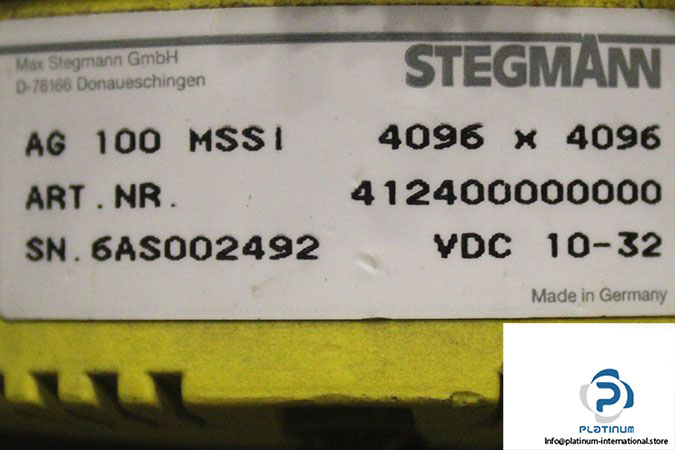

• Tacho Generator: 1FU1050-6NF
• Constant Voltage: 13.3 mVmin
