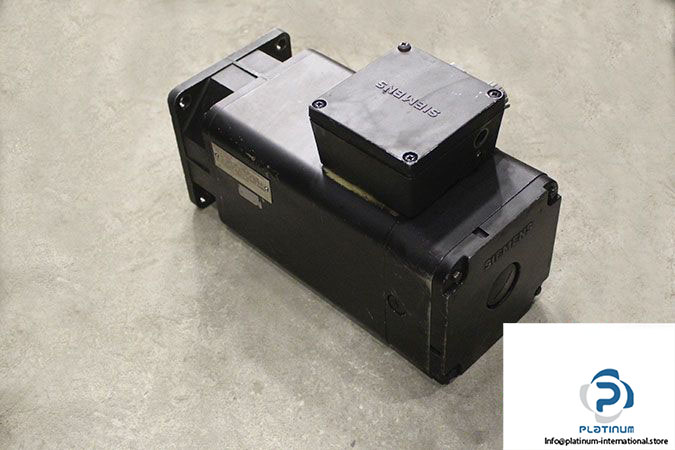

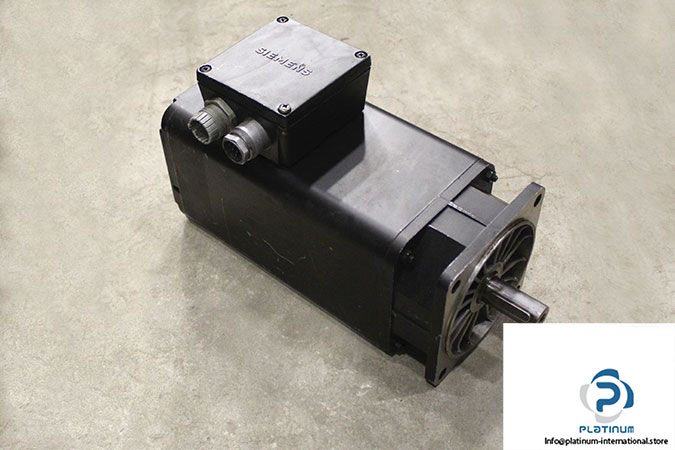

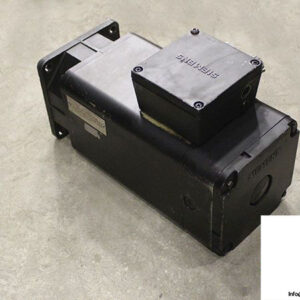

SIEMENS 1FT5 074-0AC01 PERMANENT MAGNET MOTOR

The Siemens 1FT5 074-0AC01 is a high-performance permanent magnet motor built for demanding industrial automation applications. With a rated power of 2.51 kW and static torque of up to 18 Nm, this robust and efficient motor is ideal for precision drive systems requiring high reliability and speed control.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Model: 1FT5 074-0AC01

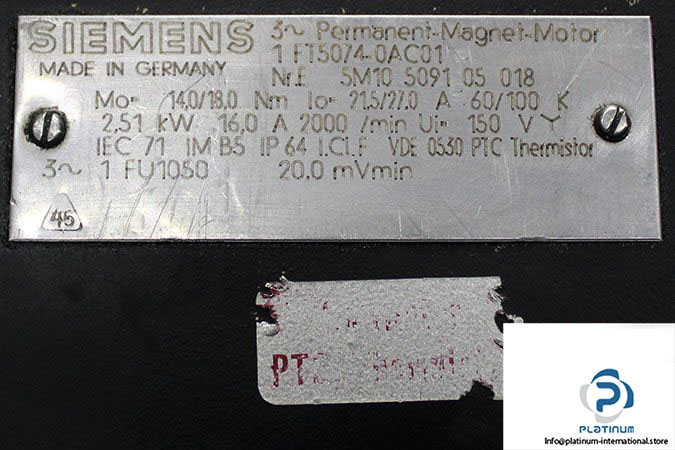

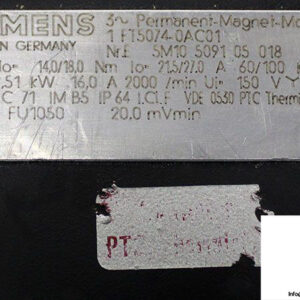

NR E: 5M10 5091 05 018
Series: 5
Frame Size: 07
Length: 4

Technical Information

• Rated Voltage: 150 V
• Rated Power: 2.51 kW
• Static Torque: 14/18 Nm
• Rated Current: 16 A
• Stall Current: 21.5/27 A
• Rated Speed: 2000 rpm
• Constant Voltage: 20 mVmin
• Mounting Position: B5
• Protection Class: IP64
• Thermal Class: F
• Tacho Generator: 1 FU1050
