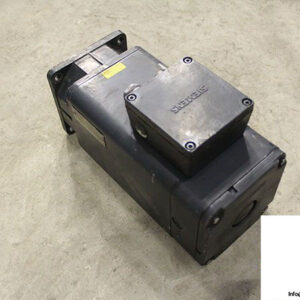

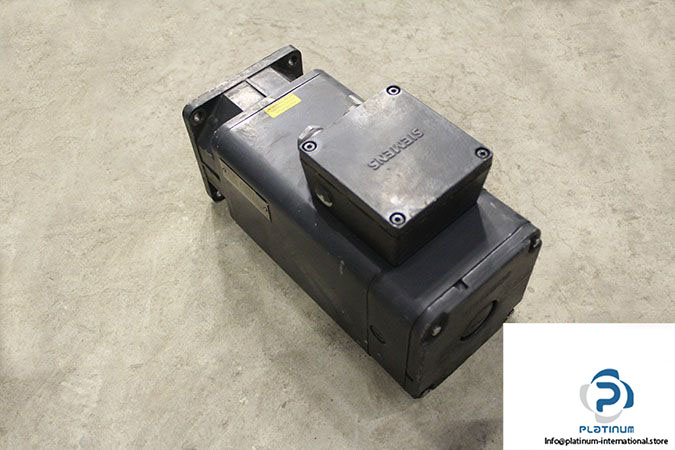

SIEMENS 1FT5074-0AF01-0-Z SYNCHRONOUS SERVO MOTOR

This Siemens synchronous servo motor is engineered for high-performance motion control applications. Offering excellent precision, speed stability, and consistent torque output, it is well-suited for continuous-duty industrial environments.

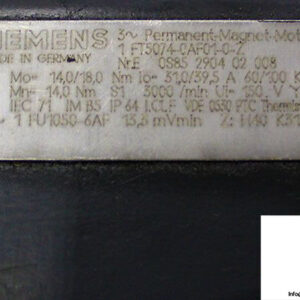

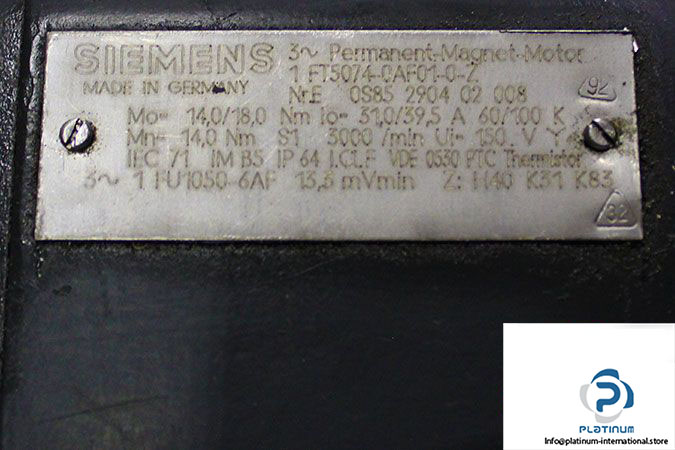

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FT5074-0AF01-0-Z
Serial No.: OS85 2904 02 008
Series: 5
Frame Size: 07
Length: 4

Technical Information

• Rated Voltage: 150 V
• Rated Torque: 14 Nm
• Rated Speed: 3000 rpm
• Standstill Current: 31 / 39.5 A
• Standstill Torque: 14 / 18 Nm
• Constant Voltage: 13.3 mVmin
• Duty: S1 Continuous
• Mounting Position: B5
• Protection Class: IP64
• Thermal Class: F
• Tacho Generator: 1 FU1050-6AF
