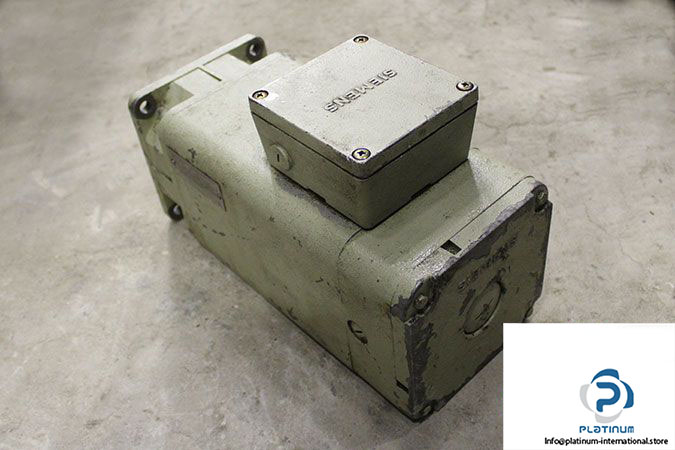

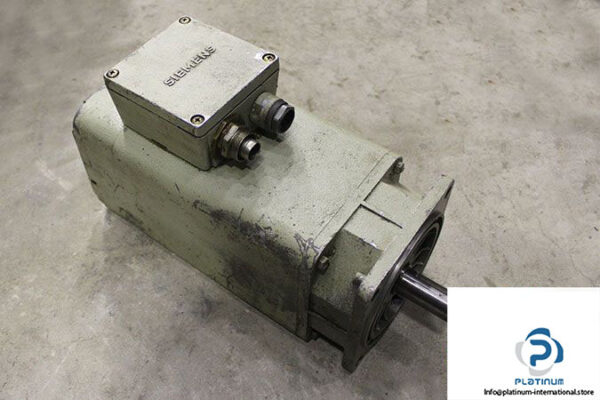

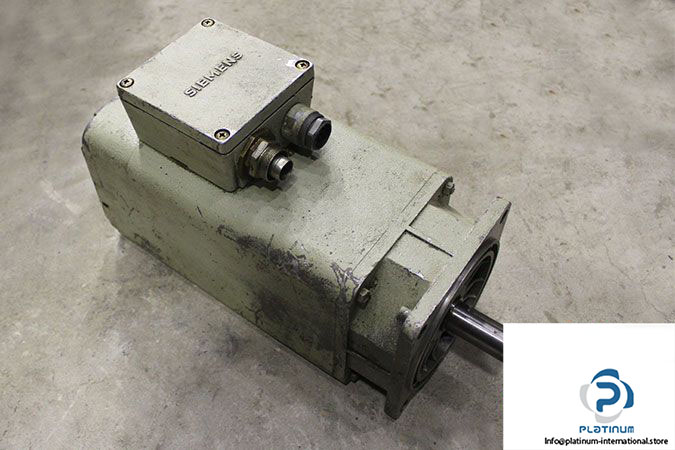

SIEMENS 1FT5074-0AF01 SYNCHRONOUS SERVO MOTOR
The Siemens 1FT5074-0AF01 is a high-precision synchronous servo motor designed for advanced motion control applications. Built to deliver robust torque, efficiency, and reliability, this motor is ideal for high-performance industrial systems requiring accurate speed and position control.
Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FT5074-0AF01
Part No.: 7B10 6110 22 007

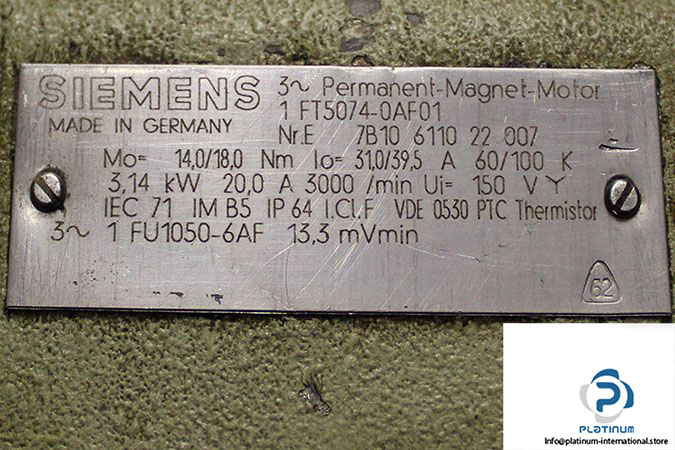

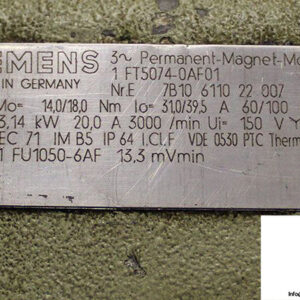

Technical Information
- Rated Speed: 3000 rpm
- Rated Voltage: 150 V (Star)
- Rated Current: 20 A
- Rated Power: 3.14 kW
- Stall Torque (60K): 14.0 Nm
- Stall Torque (100K): 18.0 Nm
- Stall Current (60K): 31.0 A
- Stall Current (100K): 39.5 A
- Voltage Constant: 13.3 mVmin
- Tacho Generator: 1 FU1050-6AF
- Degree of Protection: IP64
- Mounting Position: B5
- Thermal Class: F
