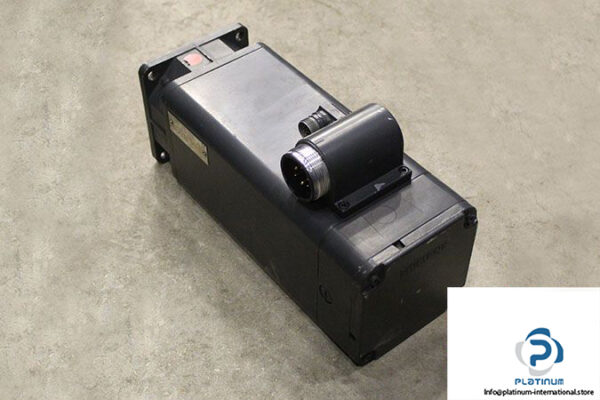

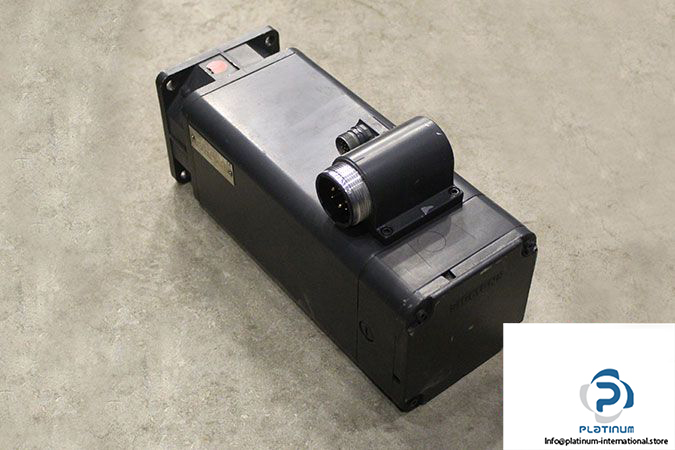

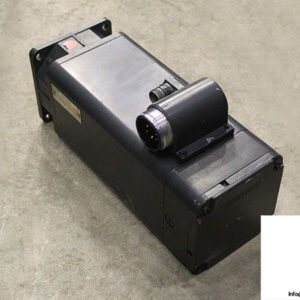

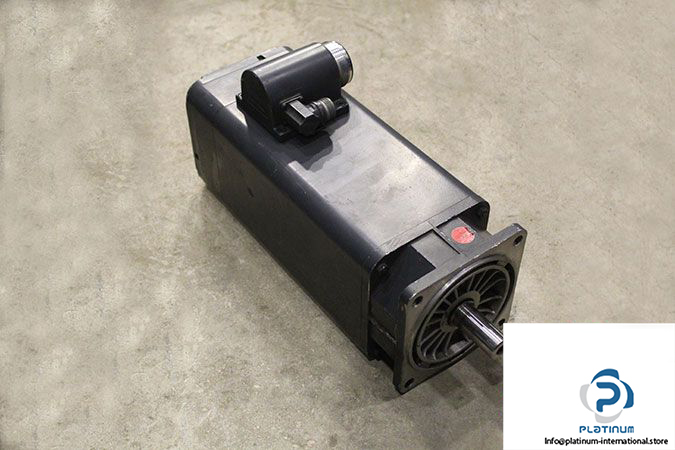

SIEMENS 1FT5076-1AF71-1AA0 BRUSHLESS SERVO MOTOR

Siemens 1FT5076-1AF71-1AA0 is a high-performance brushless servo motor engineered for continuous-duty industrial operations. Built to EN 60034 standards, this Series 5 servo motor offers excellent dynamic response and energy-efficient output with robust construction for demanding automation environments.

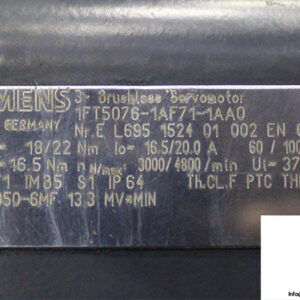

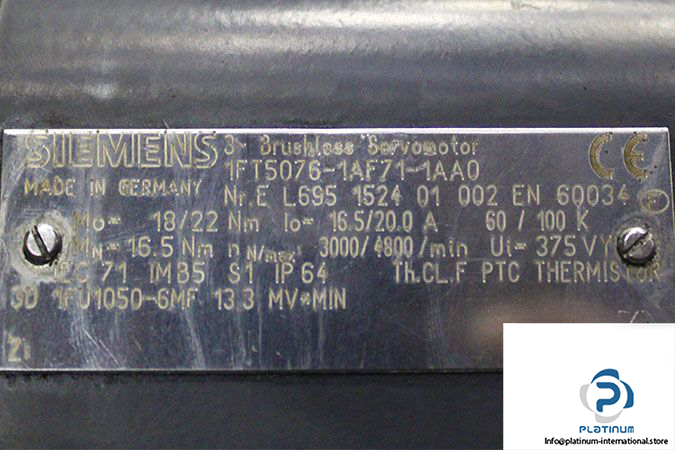

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FT5076-1AF71-1AA0
Part No.: L695 1524 01 002
Standard: EN 60034
Series: 5

Technical Information

• Frame Size: 07
• Length: 6
• Rated Voltage: 375 V
• Rated Torque: 16.5 Nm
• Static Torque: 18/22 Nm
• Rated Speed: 3000 rpm
• Max. Speed: 4800 rpm
• Stall Current: 16.5/20 A
• Constant Voltage: 13.3 mV/min
• Duty: S1 Continuous
• Mounting Position [IM]: B5
• Protection Class [IP]: 64
• Thermal Class: F
• Tachogenerator: 1 FU1050 -6MF
