SIEMENS 1FT5 102-1AA71-1AH0 BRUSHLESS SERVO MOTOR

The Siemens 1FT5 102-1AA71-1AH0 is a high-performance brushless servo motor designed for industrial automation and motion control applications. Built to EN 60034 standards, it offers outstanding torque output, precise speed control, and robust construction suitable for continuous operation in harsh environments.

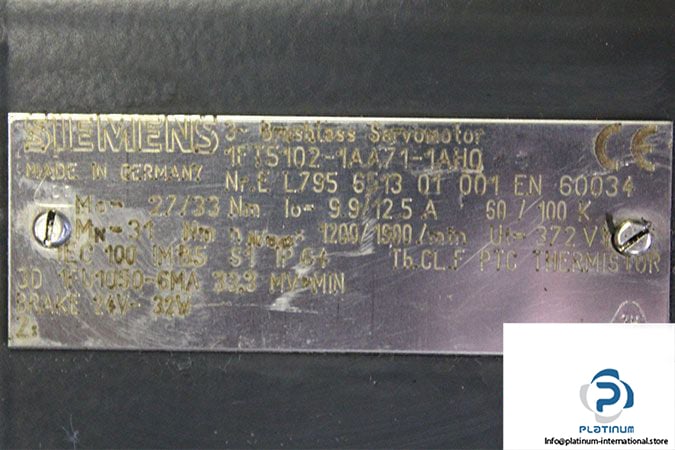

Manufacturer: SIEMENS
Type: Brushless Servo Motor
Product ID: 1FT5 102-1AA71-1AH0
Nr. YF: L795 6513 01 001
Standard: EN 60034

Technical Information

• Rated Voltage: 372 V Y
• Stall Current: 9.9 / 12.5 A
• Rated Speed: 1200 min»¹
• Max. Speed: 1900 min»¹
• Rated Torque: 31 Nm
• Stall Torque: 27 / 33 Nm
• Duty: S1 (Continuous Duty)
• Thermal Class: F
• Protection Class: IP64
• Tachogenerator: 1FU1050-6MA
• Voltage Constant: 12.3 mV/min
• Brake Voltage: 24 V
• Voltage Power: 32 W
