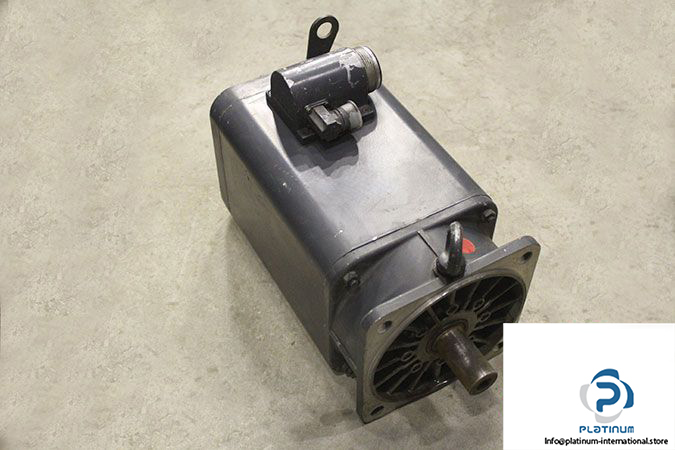

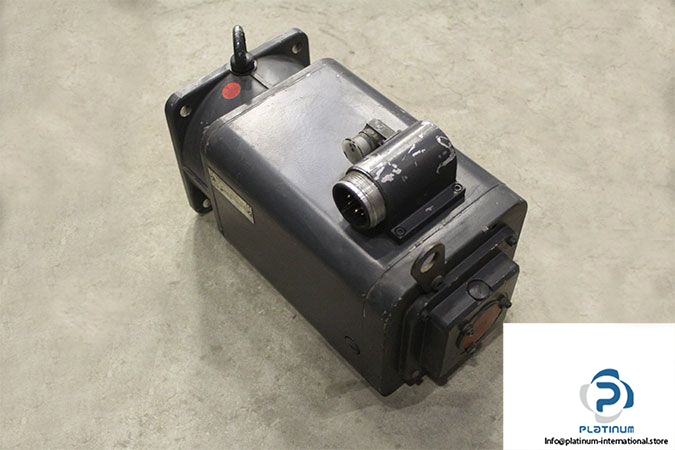

SIEMENS 1FT5102-1AA71-1EH0 BRUSHLESS SERVOMOTOR

This high-performance brushless servomotor by Siemens is designed for continuous duty industrial applications. It delivers powerful and reliable motion control with high torque and protection standards. Built to operate in demanding environments with precision and efficiency.

Manufacturer: Siemens
Type: Brushless Servomotor
Model: 1FT5102-1AA71-1EH0
Part No.: L795 6513 02 001

Technical Information

• Nominal Voltage: 372 V
• Stall Current: 9.9/12.5 A
• Max. Speed: 1200/1900 min»¹
• Nominal Torque: 31 Nm
• Stall Torque: 27/33 Nm
• Constant Voltage: 33.3 mVmin
• Brake Voltage: 25 V
• Brake Power: 32 W
• Duty: S1 (Continuous Duty)
• Mounting Position: IM B5
• Tacho Generator: 1FU1050-6MA
• Protection Class: IP64
• Thermal Class: F
