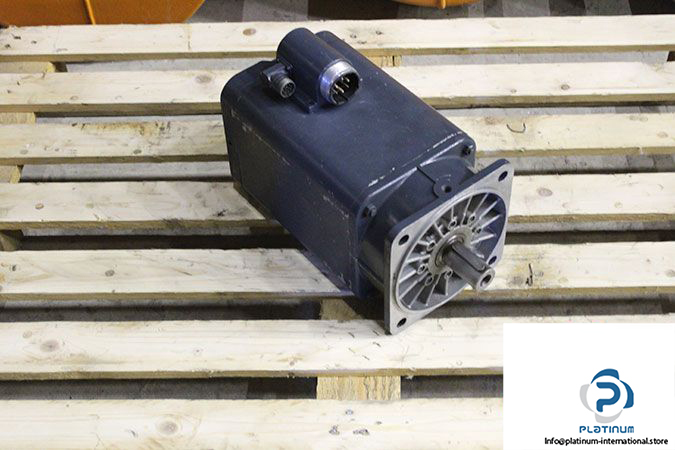

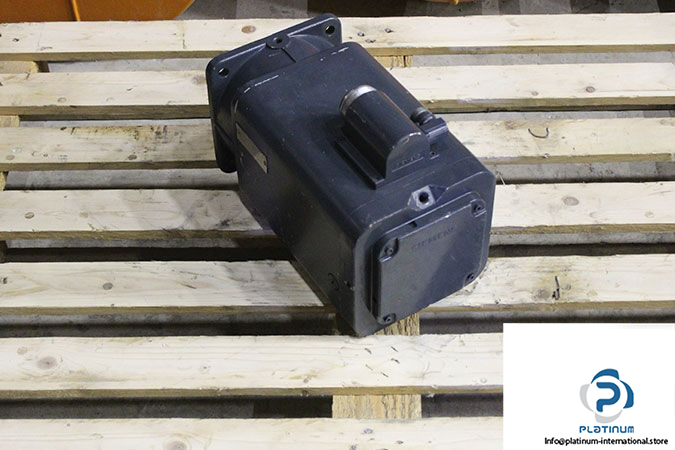

SIEMENS 1FT5102-1AC71-3AB0 PERMANENT MAGNET MOTOR

The Siemens 1FT5102-1AC71-3AB0 is a high-performance permanent magnet motor designed for precision applications in demanding industrial environments. Offering excellent torque, speed control, and thermal efficiency, it supports continuous operation and integrates seamlessly into advanced automation systems.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Model: 1FT5102-1AC71-3AB0
Part No.: J695 3243 03 002

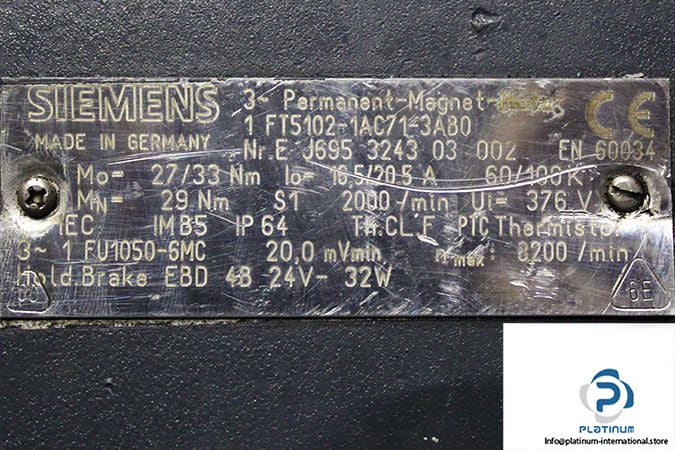

Technical Information

• Series: 5
• Frame Size: 10
• Length: 2
• Rated Voltage: 376 V
• Rated Torque: 29 Nm
• Static Torque: 27 / 33 Nm
• Stall Current: 16.5 / 20.5 A
• Rated Speed: 2000 rpm
• Max Speed: 8200 rpm
• Constant Voltage: 20.0 mVmin
• Brake Type: EBD 4B
• Brake Voltage: 24 VDC
• Brake Power: 32 W
• Mounting Position [IM]: B5
• Protection Class: IP64
• Tach Generator: 1FU1050-6MC
• Duty: S1 Continuous
• Thermal Class: F
