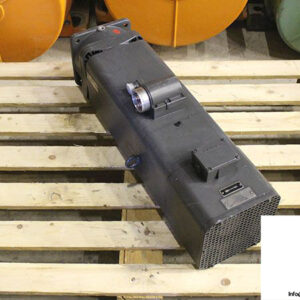

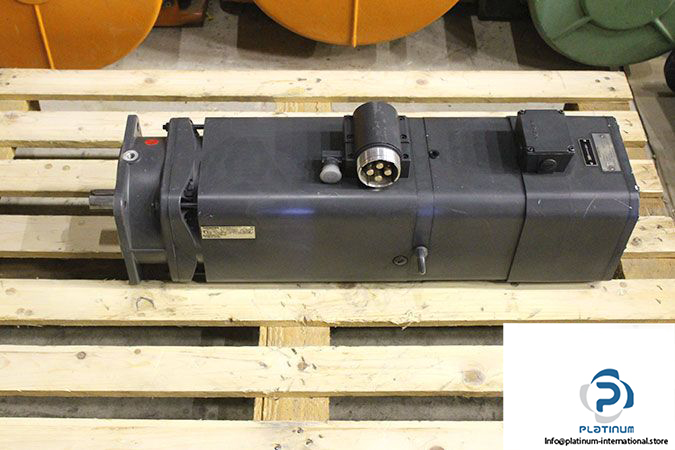

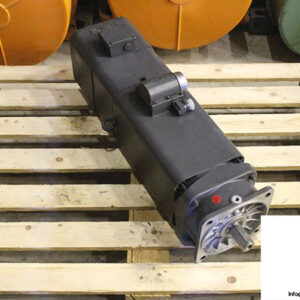

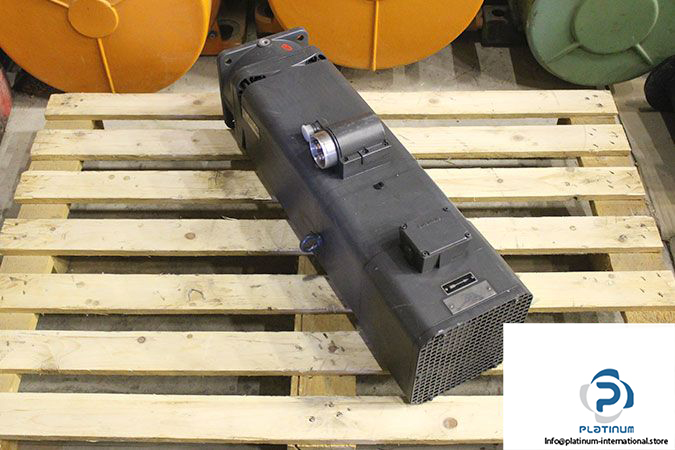

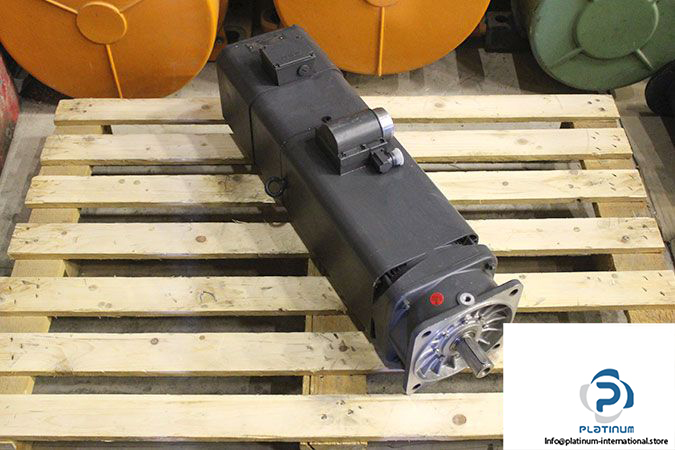

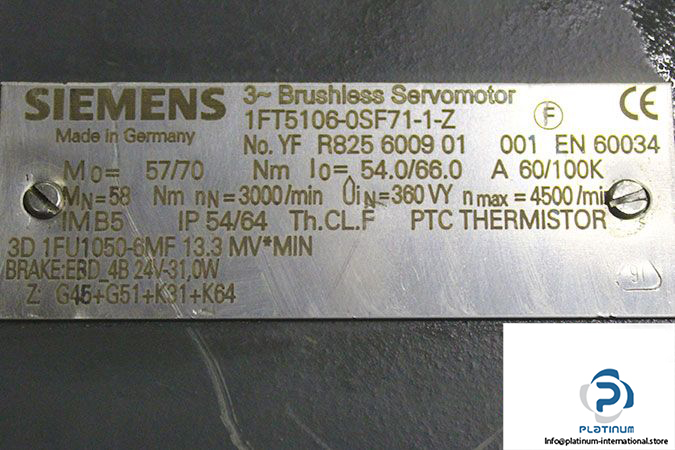

SIEMENS 1FT5106-0SF71-1-Z BRUSHLESS SERVO MOTOR WITH BLOWER

The Siemens 1FT5106-0SF71-1-Z is a high-performance brushless servo motor built for precision control in industrial automation. Engineered for durability and speed, it comes equipped with a Siemens 2CW6144-8 blower for enhanced thermal management and consistent performance.

Manufacturer: Siemens
Type: Brushless Servo Motors
Model: 1FT5106-0SF71-1-Z
Part No.: R825 6009 01 001
REF NO: G45+G51+K31+K64
Standard: EN 60034

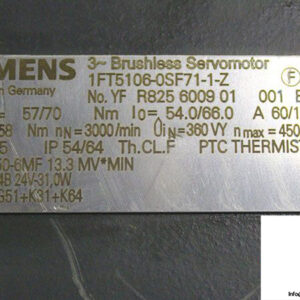

Technical Information

• Series: 5
• Frame Size: 10
• Length: 6
• Rated Voltage: 360 V
• Rated Torque: 58 Nm
• Static Torque: 57/70 Nm
• Stall Current: 54.0/66.0 A
• Rated Speed: 3000 rpm
• Max. Speed: 4500 rpm
• Constant Voltage: 13.3 mVmin
• Tacho Generator Type: 1FU1050-6MF
• Brake Voltage: 24 VDC
• Brake Power: 31 W
• Brake Model: EBD-4B
• Mounting Position [IM]: B5
• Protection Class: IP54/IP64
• Thermal Class: F

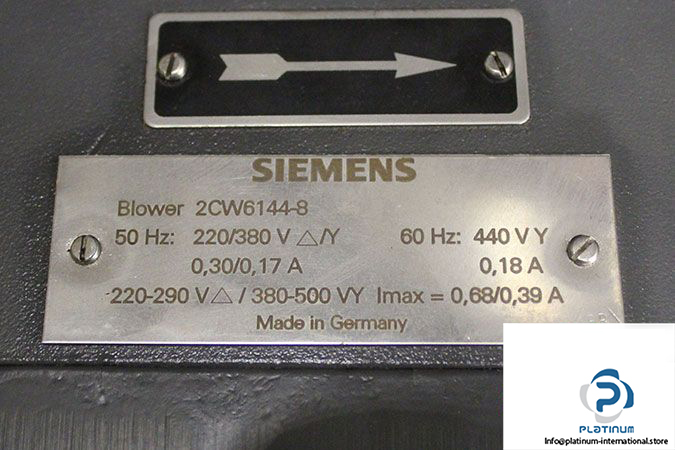

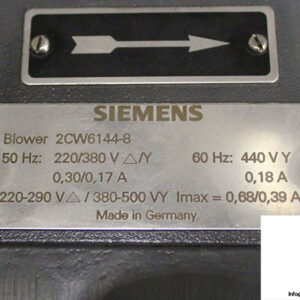

Blower Information

Manufacturer: Siemens
Type: Blower
Model: 2CW6144-8

• Rated Voltage: 220“380 / 440 V
• Rated Current: 0.3“0.17 / 0.18 A
• Max. Voltage: 22“290 / 380“500 V
• Max. Current: 0.68 / 0.39 A
