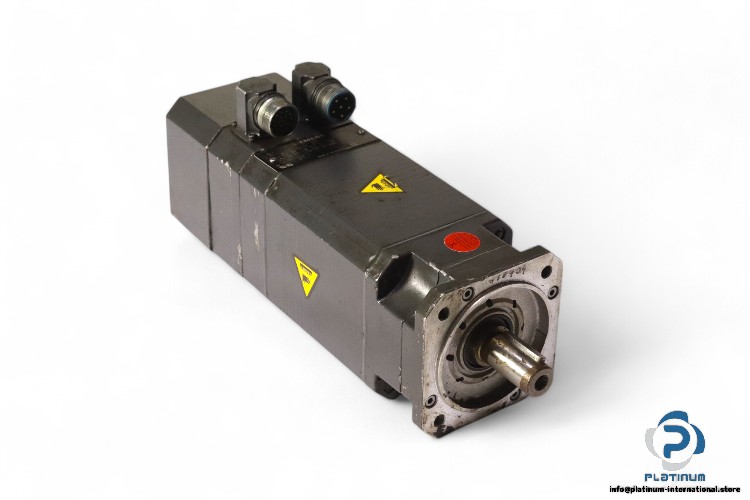

SIEMENS 1FT6044-4AF71-4AA2 SERVO MOTOR

This high-efficiency servo motor from Siemens offers precise motion control and reliable performance in industrial automation applications. Featuring a compact design with high torque density, it is ideal for demanding servo drive systems.

Manufacturer: SIEMENS
Type: Servo Motor
Model: 1FT6044-4AF71-4AA2

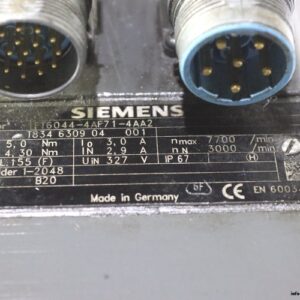

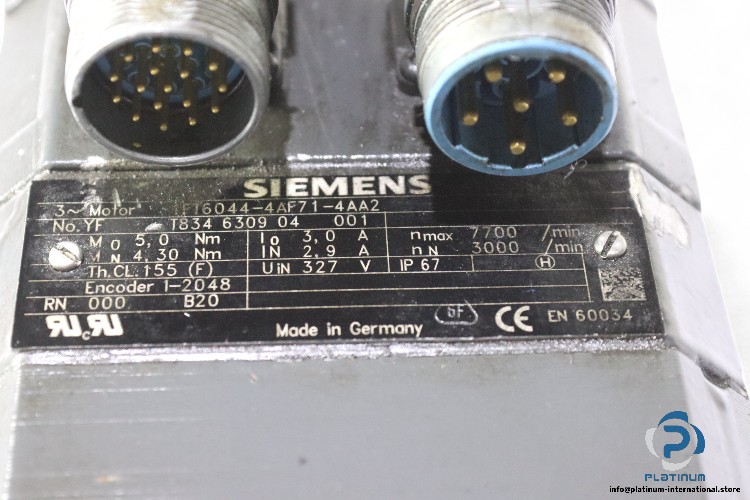

No yf: T834 6309 04 001

Technical Information

• Supply Voltage: 327 V
• Stall Torque: 5 Nm
• Rated Torque: 4.3 Nm
• Stall Current: 3 A
• Rated Current: 2.9 A
• Max Speed: 7700 rpm
• Rated Speed: 3000 rpm
• Protection Class: IP 67
• Thermal Class: F
• Attached with: I-2048 ENCODER
