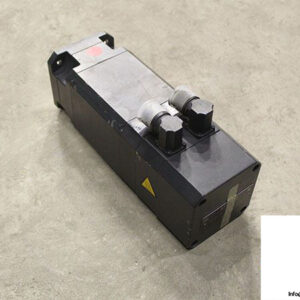

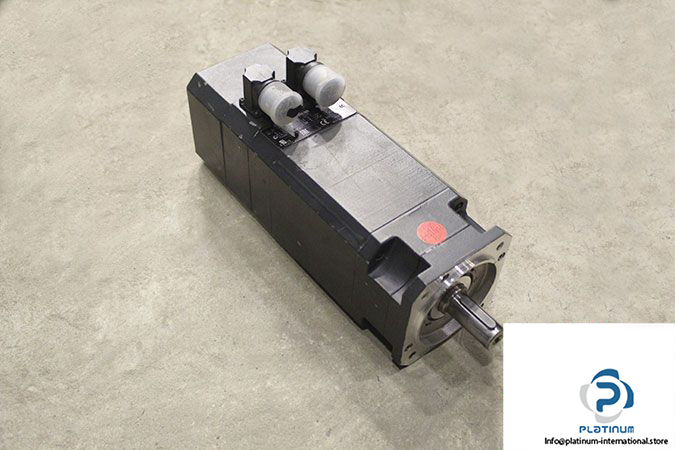

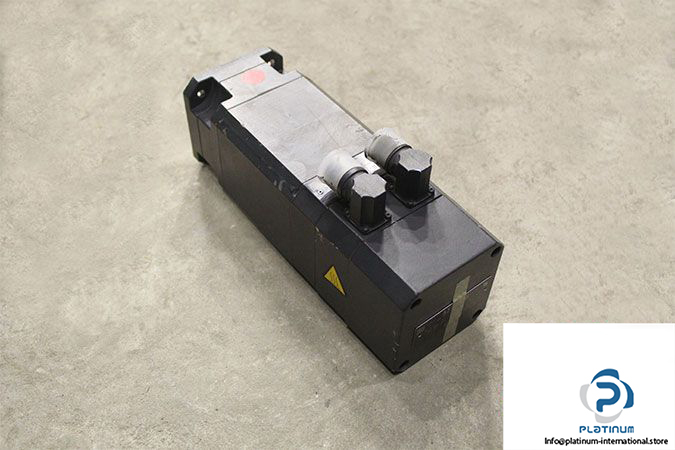

SIEMENS 1FT6044-4AK71-4AA0 BRUSHLESS SERVO MOTOR

The Siemens 1FT6044-4AK71-4AA0 is a high-performance brushless servo motor designed to deliver exceptional precision and dynamic response for demanding automation systems. It belongs to Series 6 and features compact size, high torque density, and excellent reliability.

Manufacturer: Siemens
Type: Brushless Servo Motors
Model: 1FT6044-4AK71-4AA0
Part No.: F0621 6849 03 001
Series: 6
Frame Size: 04
Length: 4

Technical Information

• Rated Voltage: 330 V
• Rated Torque: 3.0 Nm
• Static Torque: 5.0 Nm
• Rated Speed: 6000 rpm
• Max. Speed: 7700 rpm
• Rated Current: 4.1 A
• Stall Current: 5.9 A
• Encoder: IC2048S/R B35
• Protection Class: IP64
• Thermal Class: F
