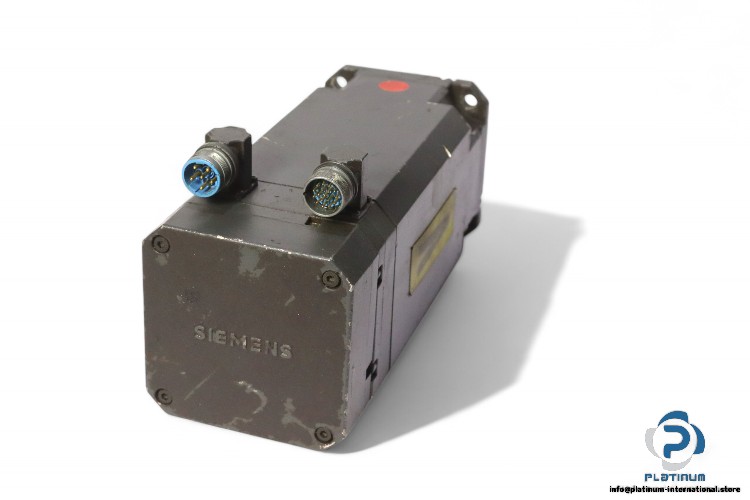

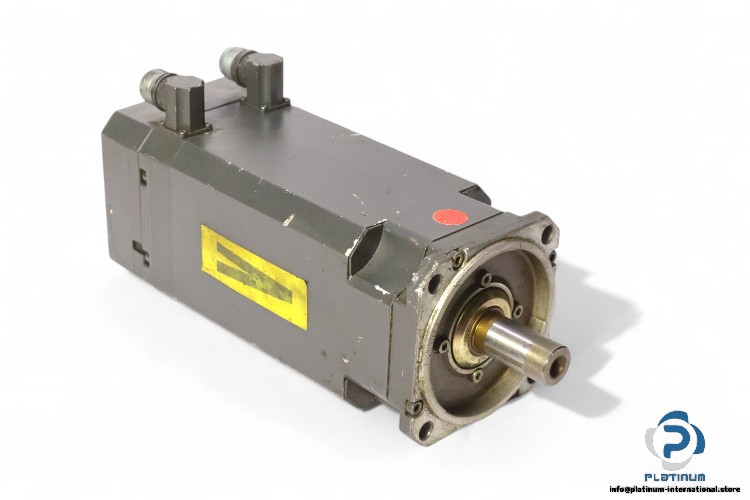

SIEMENS 1FT6062-1AF71-3EH1 SERVO MOTOR

The Siemens 1FT6062-1AF71-3EH1 is a high-performance servo motor engineered for precise motion control in demanding automation environments. It delivers robust torque and speed characteristics with advanced encoder integration and a reliable braking system.

Manufacturer: SIEMENS
Type: SERVO MOTOR
Model: 1FT6062-1AF71-3EH1
Part No.: F420 1884 01

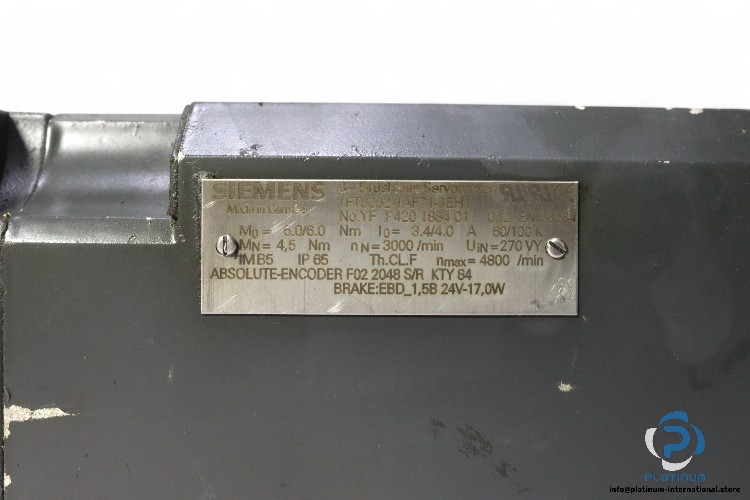

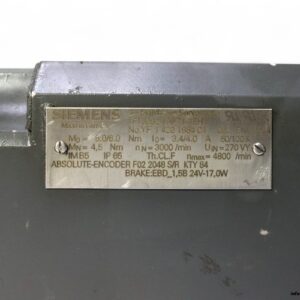

Technical Specifications

• Rated Voltage: 270 V
• Rated Speed: 3000 RPM
• Max Speed: 4800 RPM
• Stall Current: 3.4/4.0 A
• Rated Torque: 4.5 Nm
• Stall Torque: 6.0 Nm
• Protection Class: IP65
• Thermal Class: F
• Brake Voltage: 24 V
• Brake Power: 17 W
• Brake: EBD 1.5B
• Attached with: F02 2048 ABSOLUTE ENCODER
• S. No: KTY 84
