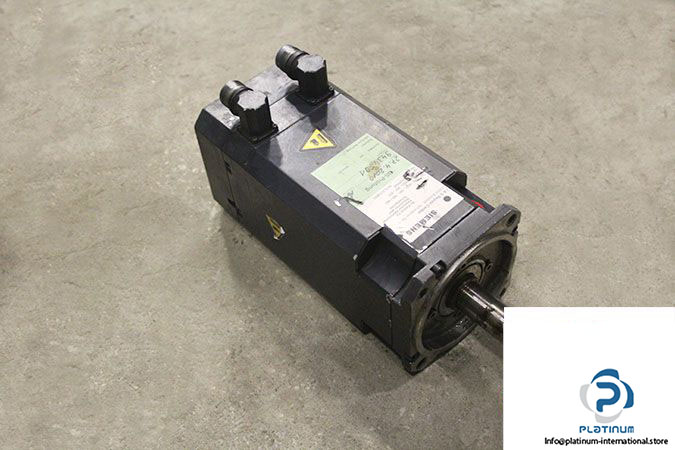

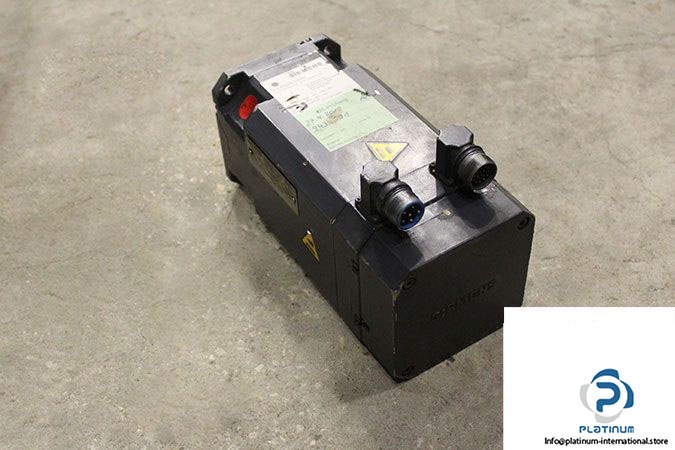

SIEMENS 1FT6 062-6AK71-3EG0 BRUSHLESS SERVO MOTOR

This Siemens brushless servo motor from Series 6 offers precise control, high speed, and excellent torque performance. Engineered for dynamic industrial automation systems, it ensures efficiency and reliability in continuous and demanding environments.

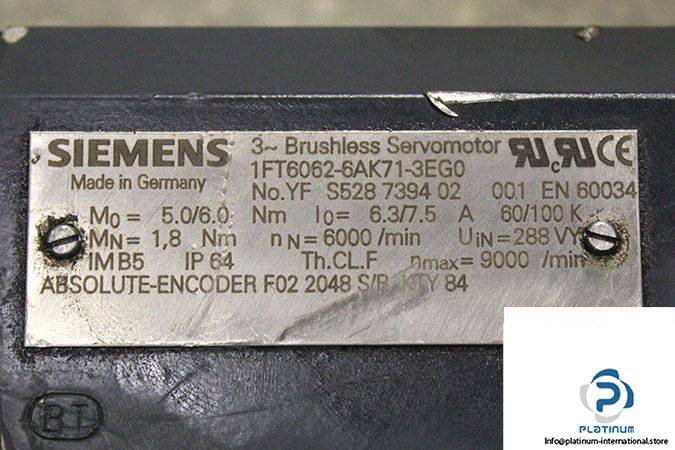

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FT6 062-6AK71-3EG0
Part No.: S528 7394 02 001
Series: 6

Technical Information

• Frame Size: 06
• Length: 2
• Rated Voltage: 288 V
• Rated Torque: 1.8 Nm
• Static Torque: 5.0 / 6.0 Nm
• Rated Speed: 6000 rpm
• Max. Speed: 9000 rpm
• Stall Current: 6.3 / 7.5 A
• Mounting Position [IM]: B5
• Protection Class [IP]: 64
• Absolute Encoder: F02 2048 S/R
• Thermal Class: F
