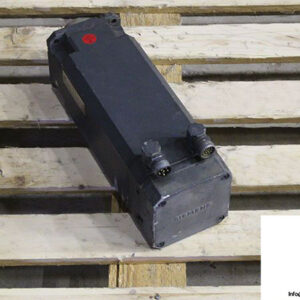

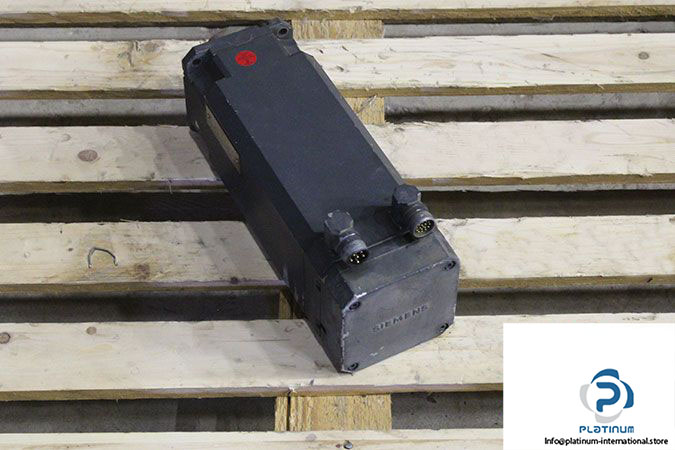

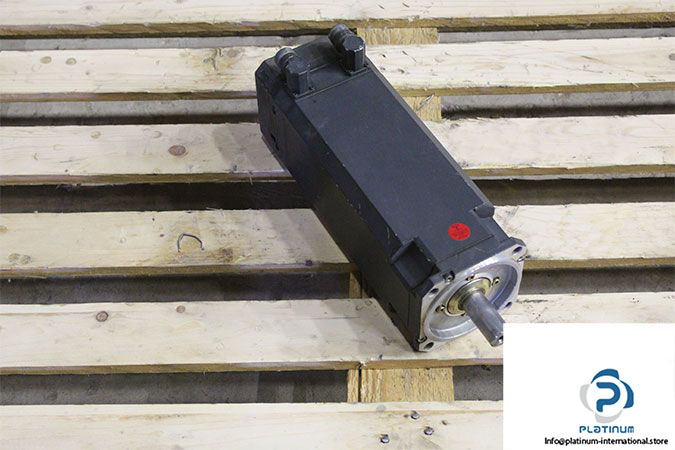

SIEMENS 1FT6 064-1AF71-3EH1 BRUSHLESS SERVO MOTOR

The Siemens 1FT6 064-1AF71-3EH1 is a high-performance brushless servo motor designed for precise and demanding industrial motion control applications. Built to EN 60034 standards and featuring IP65 protection, this motor ensures reliability, accuracy, and robust performance across automation environments.

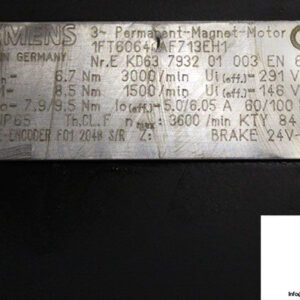

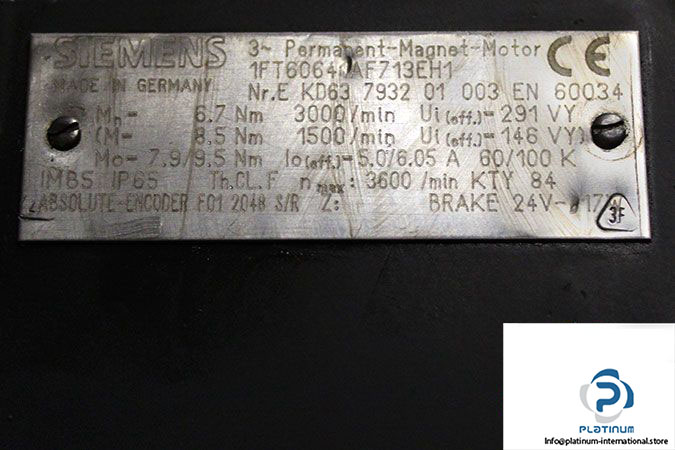

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FT6 064-1AF71-3EH1
Part No.: KD63 7932 01 003
Standard: EN 60034
Series: 6

Technical Information

• Frame Size: 06
• Length: 4
• Rated Voltage: 291 / 146 V
• Rated Torque: 6.7 / 8.5 Nm
• Static Torque: 7.9 / 9.5 Nm
• Stall Current: 5.0 / 6.05 A
• Rated Speed: 3000 / 1500 rpm
• Maximum Speed: 3600 rpm
• Brake Voltage: 24 VDC
• Brake Power: 17 W
• Mounting Position [IM]: B5
• Protection Class: IP65
• Thermal Class: F
• Encoder Model: F01 2048 S/R
