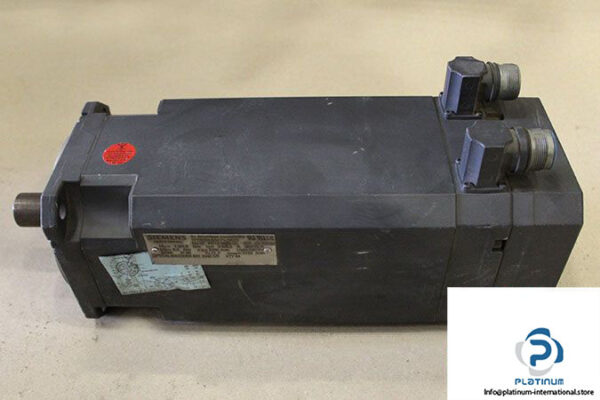

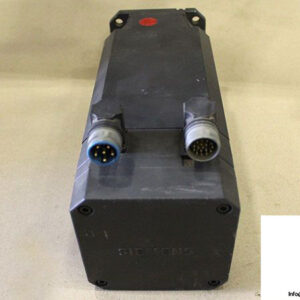

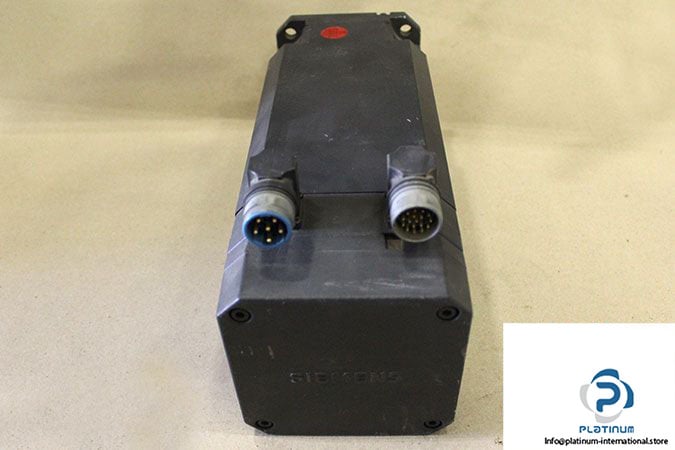

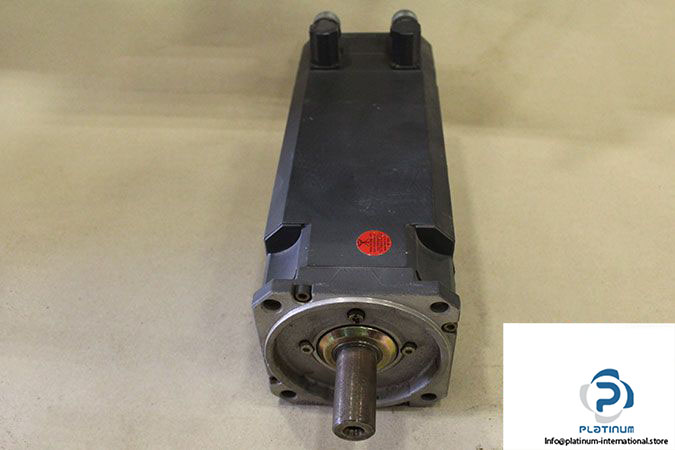

SIEMENS 1FT6 064-6AC71-3AG1 BRUSHLESS SERVO MOTOR

The SIEMENS 1FT6 series brushless servo motor is engineered for demanding automation systems requiring high torque, speed, and protection. Designed for long-lasting performance, it provides precision control in industrial environments.

Manufacturer: SIEMENS
Type: Brushless Servo Motor

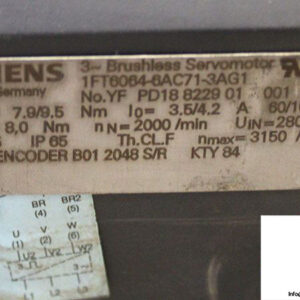

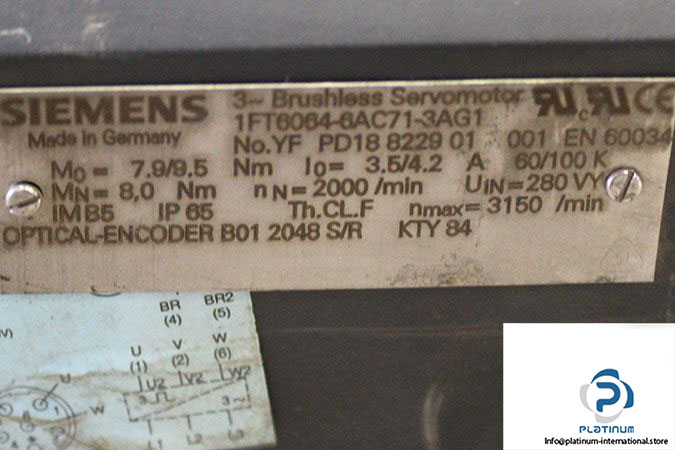

Product ID: 1FT6 064-6AC71-3AG1
Nr. YF: PD18 8229 01 001

Technical Information

• Rated Voltage: 280 VY
• Stall Current: 3.5 / 4.2 A
• Rated Speed: 2000 min^-1
• Max. Speed: 3150 min^-1
• Rated Torque: 8.0 Nm
• Stall Torque: 7.9 / 9.5 Nm
• Thermal Class: F
• Protection Class: IP65
• Optical Encoder: B01 2048 S/R
