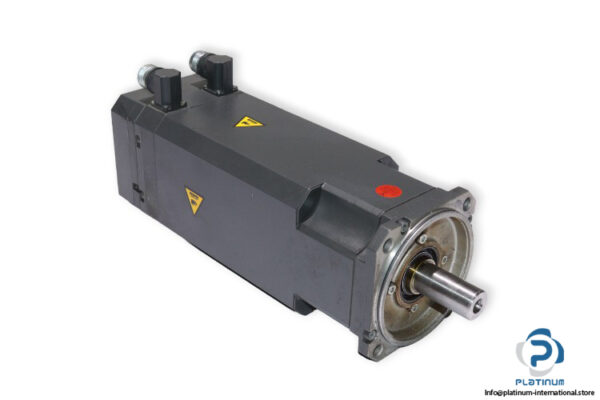

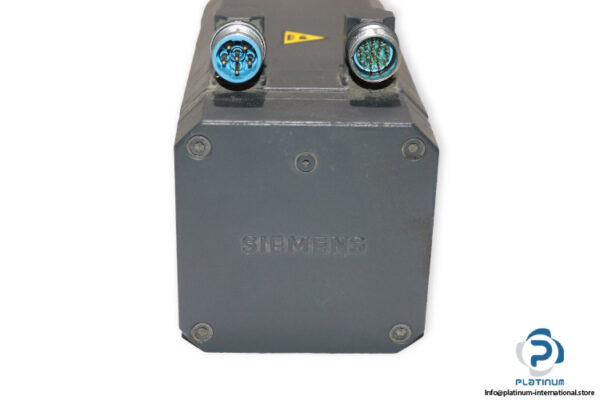

SIEMENS 1FT6064-6AF71-4AL2-Z AC SERVO MOTOR

The Siemens 1FT6064-6AF71-4AL2-Z is a high-performance AC servo motor engineered for dynamic motion control and demanding industrial environments. Offering exceptional torque, high speed, and precision feedback via its integrated encoder, it is ideal for advanced automation systems and CNC machinery.

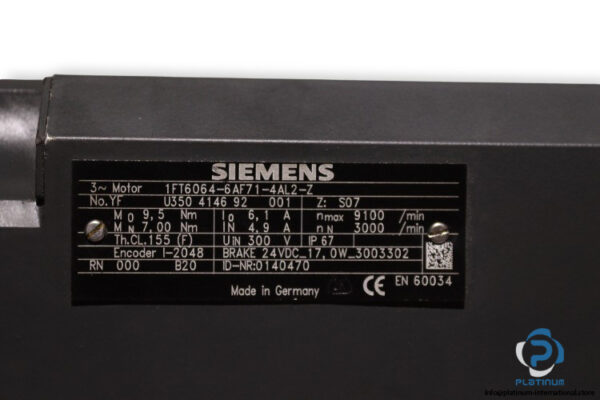

Manufacturer: Siemens
Type: AC Servo Motor
Model: 1FT6064-6AF71-4AL2-Z
No YF: U350 4146 92 001
Ref No: S07
Encoder: I-2048

Technical Information

• Rated Current [A]: 4.9
• Stall Current [A]: 6.1
• Rated Torque [Nm]: 7.0
• Stall Torque [Nm]: 9.5
• Rated Speed [min-1]: 3000
• Max. Speed [min-1]: 9100
• Rated Voltage [V]: 300
• Protection Class [IP]: 67
• Brake Power [W]: 17
• Brake Voltage [Vdc]: 24
• Thermal Class: F
• Brake Part No: 3003302
