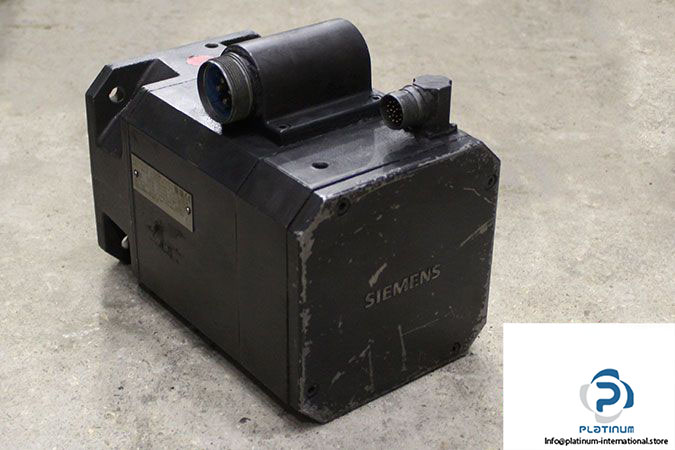

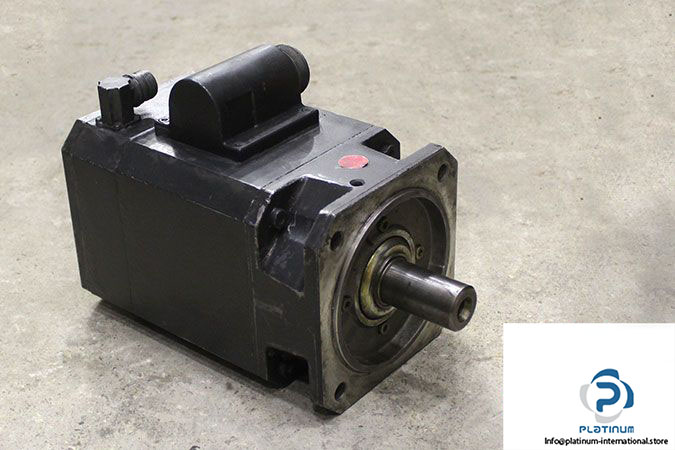

SIEMENS 1FT60821AF711AG1 BRUSHLESS SERVO MOTOR

Precision-engineered for high-performance automation systems, the Siemens 1FT60821AF711AG1 brushless servo motor delivers consistent torque and speed under varying voltage conditions. With robust protection and integrated encoder, it ensures accuracy and durability in industrial motion control applications.

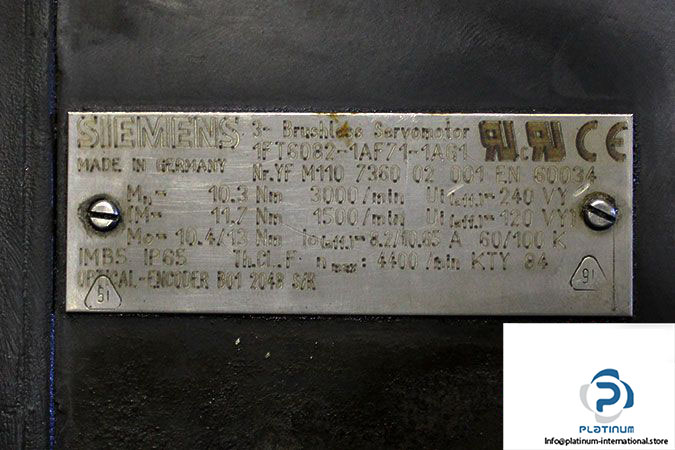

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FT60821AF711AG1
Nr yf: M110 7360 02 001

Technical Information

• Rated Voltage (Star): 240 V / 120 V
• Rated Speed at 240 V: 3000 min»¹
• Rated Torque at 240 V: 10.3 Nm
• Rated Speed at 120 V: 1500 min»¹
• Rated Torque at 120 V: 11.7 Nm
• Stall Current: 8.2 / 10.05 A
• Stall Torque: 10.4 / 13 Nm
• Maximum Speed: 4400 min»¹
• Thermal Class: F
• Protection Class: IP65
• Attached Encoder: B01 2048 S/R
