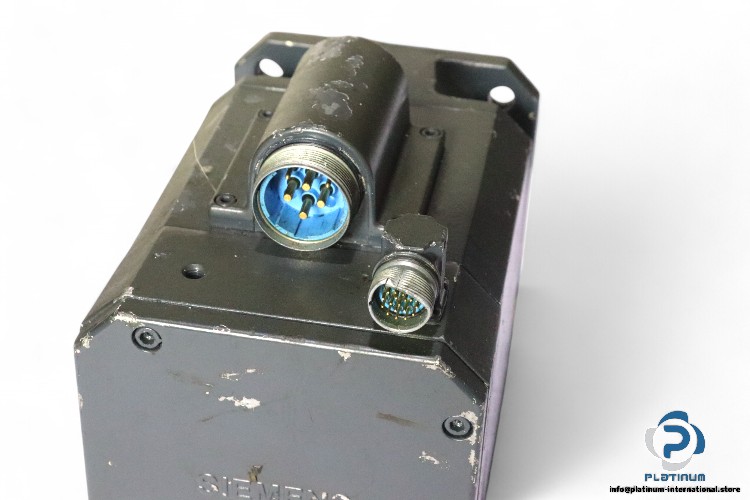

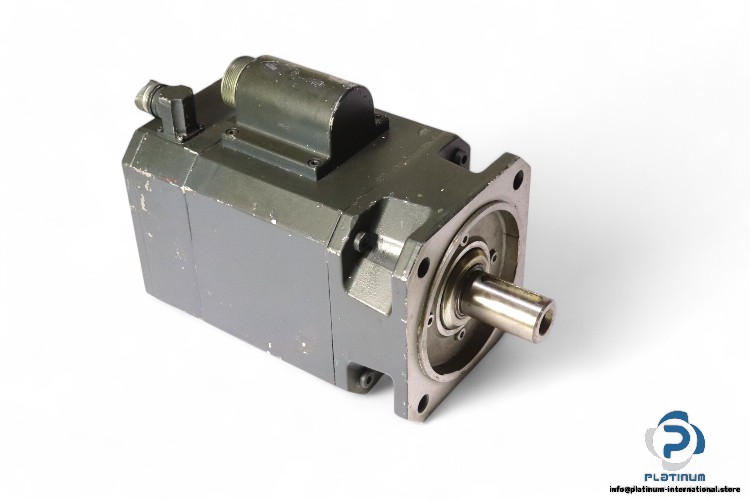

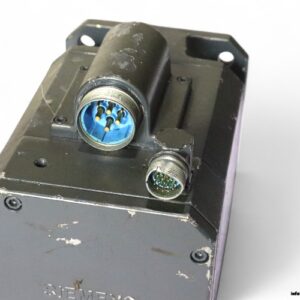

SIEMENS 1FT6082-8AF71-4AA1 SYNCHRONOUS SERVO MOTOR
The Siemens 1FT6082-8AF71-4AA1 is a high-performance synchronous servo motor engineered for precise motion control in demanding industrial automation systems. Built to deliver reliability, speed, and torque consistency, it is ideal for servo-driven applications across various sectors. Equipped with an I-2048 encoder, it ensures enhanced feedback accuracy.

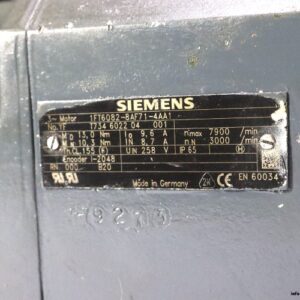

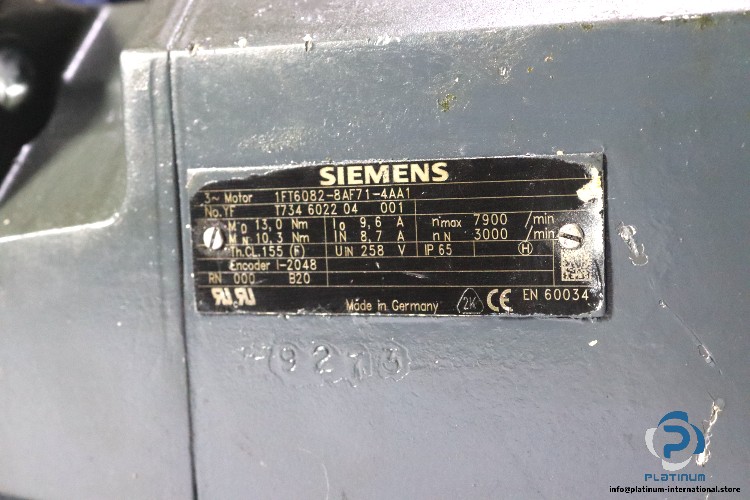

Manufacturer: SIEMENS
Type: Synchronous Servo Motor
Model: 1FT6082-8AF71-4AA1
No YF: T734 6022 04 001
Technical Information
- Supply Voltage: 258 V
- Stall Torque: 13 Nm
- Rated Torque: 10.3 Nm
- Stall Current: 9.6 A
- Rated Current: 8.7 A
- Rated Speed: 3000 rpm
- Max Speed: 7900 rpm
- Protection Class: IP 65
- Thermal Class: F
- Attached With: I-2048 ENCODER
