Siemens 1FT6084-8AC71-5TA0 Servo Motor

The Siemens 1FT6084-8AC71-5TA0 is a high-performance servo motor engineered for precision motion control. With reliable torque output, high efficiency, and robust construction, it is ideal for continuous-duty industrial applications requiring accuracy and durability.

Manufacturer: Siemens
Type: Servo Motor
Model: 1FT6084-8AC71-5TA0
Part No.: YF S227 7941 01 001

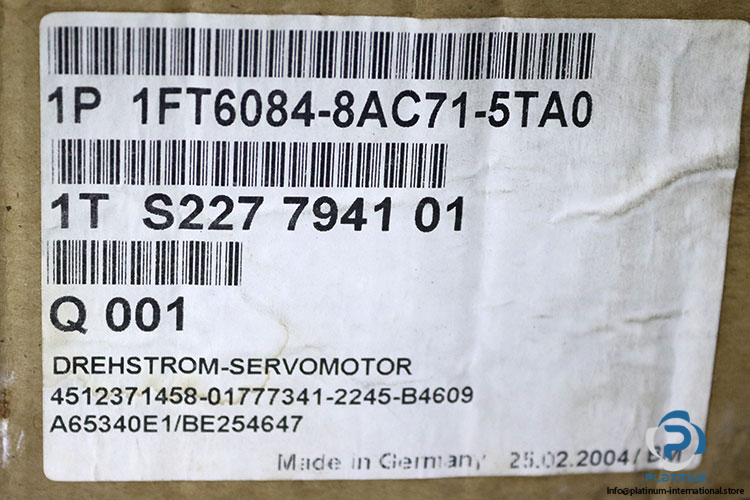

Code: 1T S227 7941 01/Q 001/4512371458-01777341-2245-B4609/A65340E1/BE254647

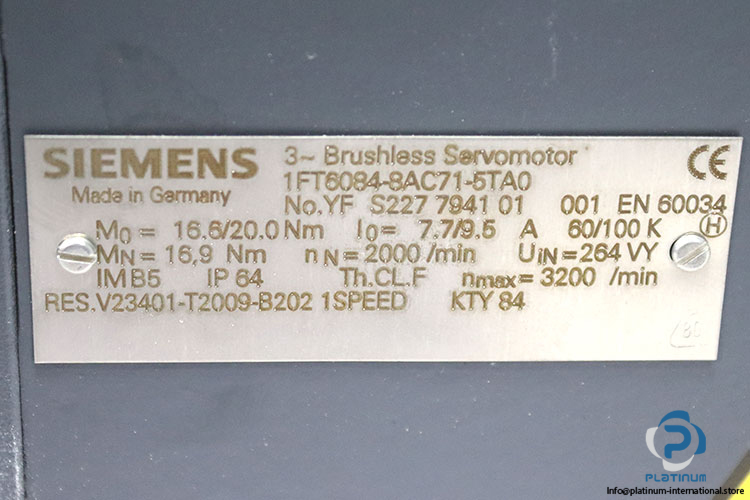

Technical information

• Torque (Mo): 16.6 / 20.0 Nm
• Rated Torque (Mn): 16.9 Nm
• Current (Io): 7.7 / 9.5 A
• Rated Speed (nN): 2000 rpm
• Max Speed (nmax): 3200 rpm
• Voltage (Uin): 264 V
• Insulation Class: F (Thermal CL.F)
• Duty: Continuous (S1)
• Mounting: IM B5
• Protection: IP64
• Temperature Sensor: KTY 84
• Resolver: V23401-T2009-B202 (1 speed)
• Ambient Temperature: 60/100 K rise (H-class allowed)
