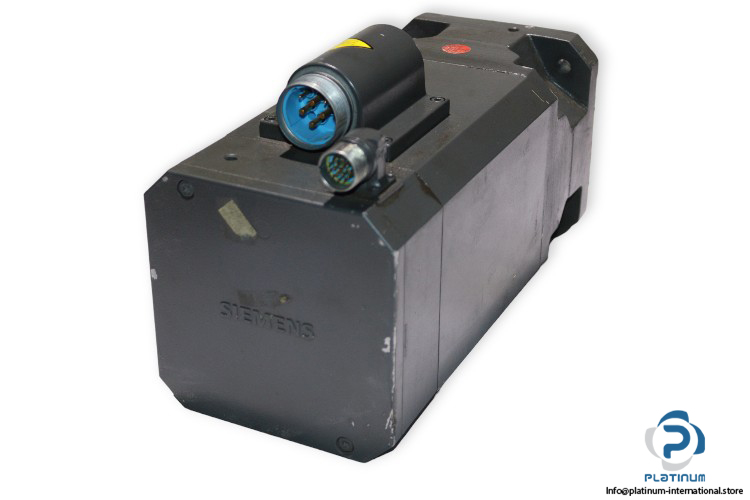

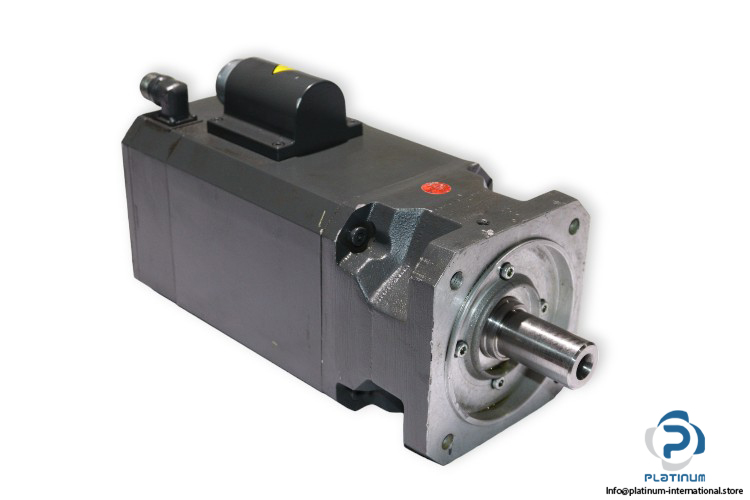

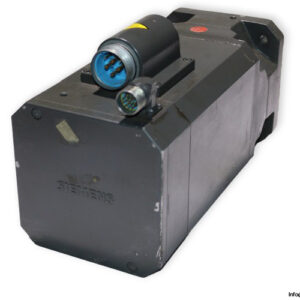

SIEMENS 1FT6084-8AH71-3AL0-Z SERVO MOTOR

Siemens 1FT6084-8AH71-3AL0-Z is a high-performance servo motor engineered for precision motion control applications. Built to comply with EN 60034 standards, it offers high torque output and robust protection for demanding industrial use.

Manufacturer: Siemens
Type: Servo Motor
Model: 1FT6084-8AH71-3AL0-Z
No .YF: J9638 7864 01 001
Ref no: S07

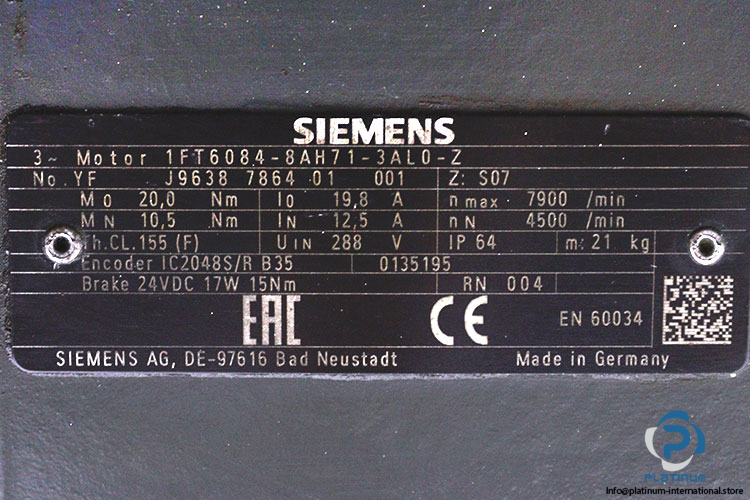

Technical Information

• Rated Current [A]: 12.5
• Stall Current [A]: 19.8
• Rated Torque [Nm]: 10.5
• Stall Torque [Nm]: 20.0
• Rated Voltage [V]: 288
• Rated Speed [min»¹]: 4500
• Max. Speed [min»¹]: 7900
• Protection Class [IP]: 64
• Thermal Class: F
• Encoder Model: IC2048S/R B35
• Encoder Part No.: 0135195
• Brake Voltage [Vdc]: 24
• Brake Power [W]: 17
• Brake Torque [Nm]: 15
• Standard: EN 60034
