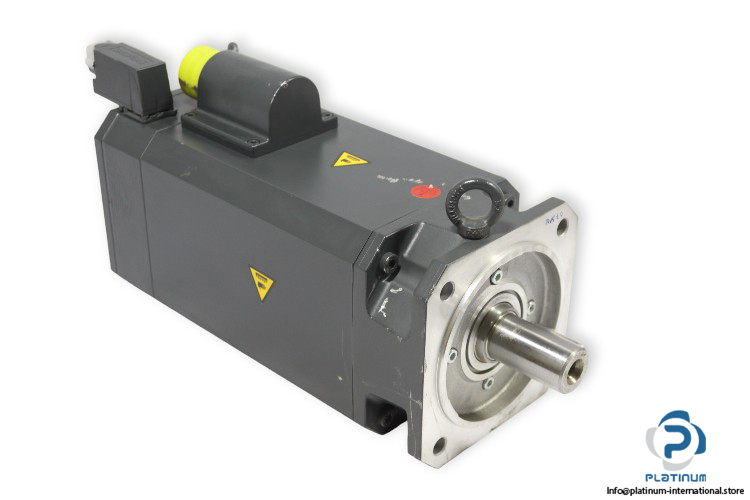

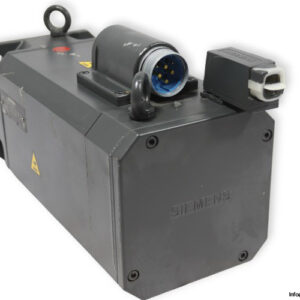

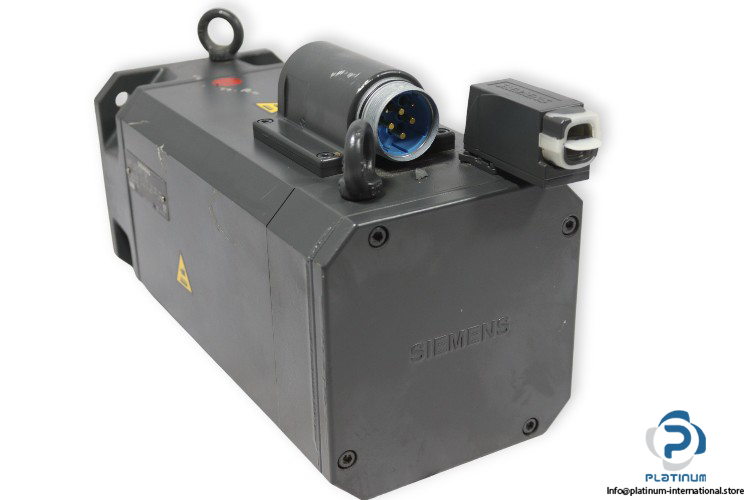

SIEMENS 1FT6086-8AF71-3UA0 BRUSHLESS SERVO MOTOR

This Siemens brushless servo motor from the 1FT6 series is engineered for high-performance automation applications, delivering stable operation, high torque, and precise feedback through its integrated resolver. Designed with natural cooling and IP64 protection, it is ideal for demanding industrial environments.

Manufacturer: Siemens
Type: Brushless Servo Motor

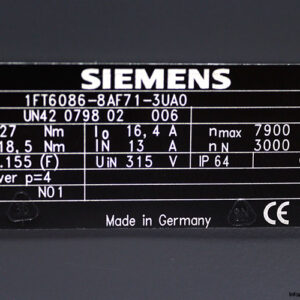

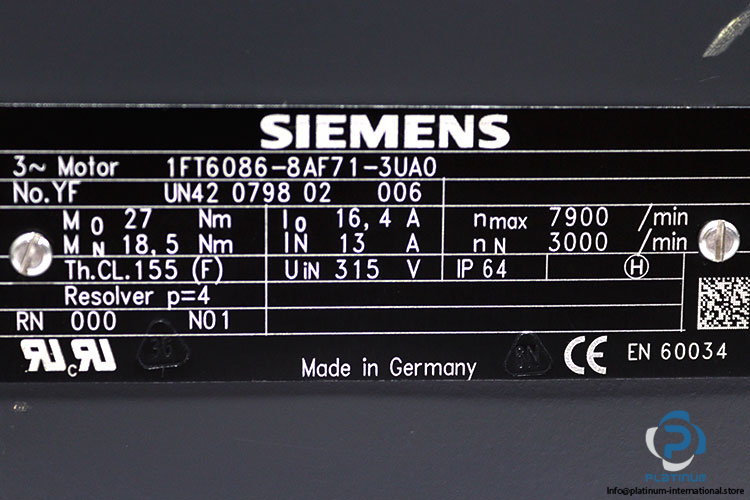

Model: 1FT6086-8AF71-3UA0
NO.YF: UN42 0798 02 006

Technical Information

• Power Supply: 3 Phase AC
• Series: 6
• Frame Size: 08
• Length: 6
• Number of Poles: 8
• Cooling Method: A, Natural Cooling
• Rated Voltage: 315 V
• Rated Torque: 18.5 Nm
• Static Torque: 27 Nm
• Stall Current: 16.4 A
• Rated Current: 13 A
• Rated Speed: 3000 rpm
• Maximum Speed: 7900 rpm
• Mounting Position: IMB5
• Protection Class: IP 64
• Thermal Class: F
• Encoder System: U, Resolver p=4
