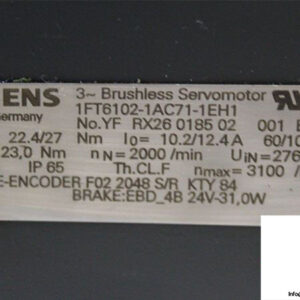

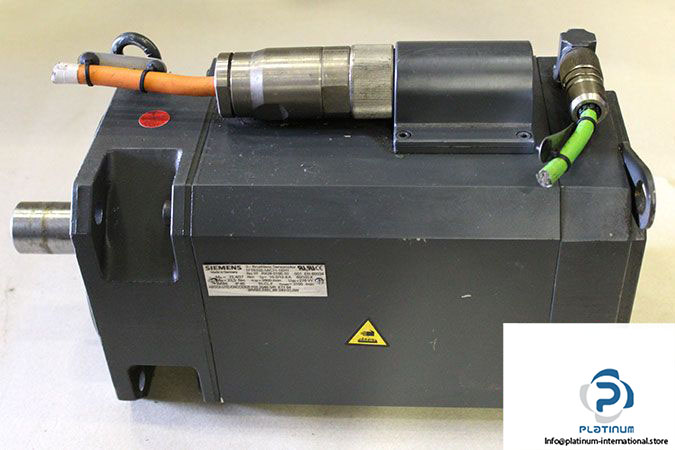

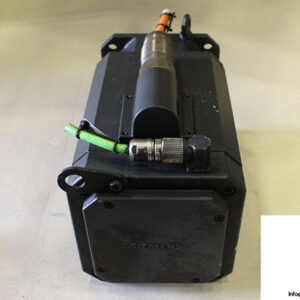

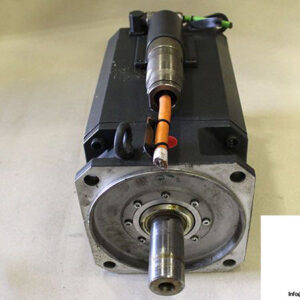

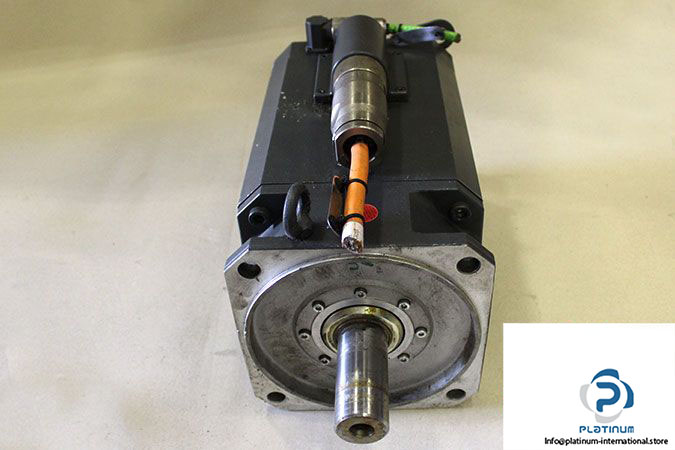

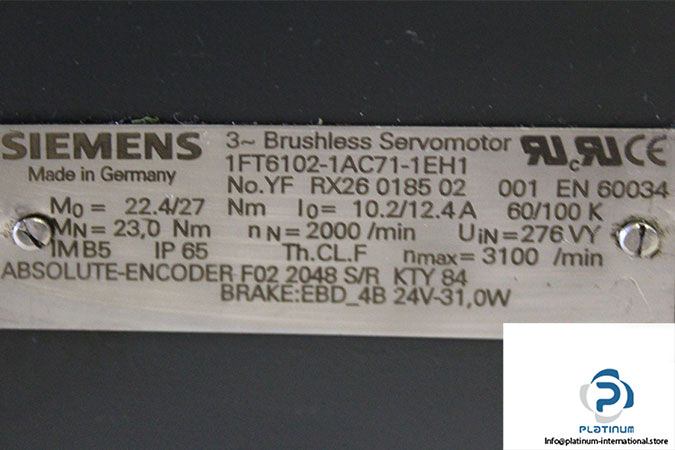

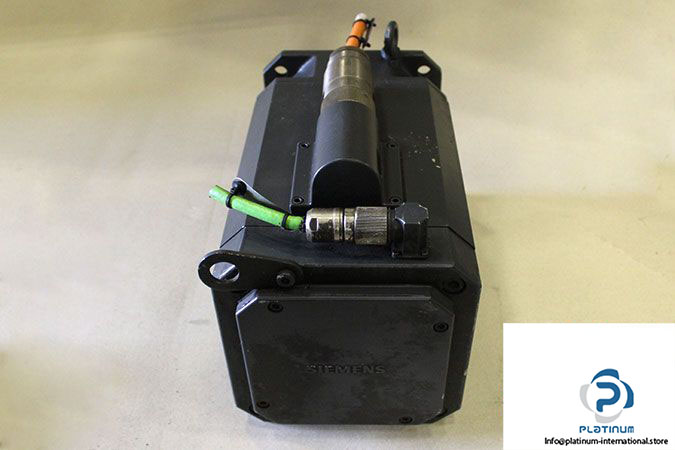

SIEMENS 1FT6 102-1AC71-1EH1 BRUSHLESS SERVO MOTOR

This high-efficiency brushless servo motor from SIEMENS is engineered for precision, durability, and dynamic industrial automation systems. Featuring a rugged IP65 design and optical encoder, it offers excellent speed control and torque for advanced motion applications.

Manufacturer: SIEMENS
Type: Brushless Servo Motor
Product ID: 1FT6 102-1AC71-1EH1
Nr. YF: RX26 0185 02 001
Standard: EN 60034

Technical Information

• Rated Voltage: 276 VY
• Stall Current: 10.2 / 12.4 A
• Rated Speed: 2000 min^-1
• Max. Speed: 3100 min^-1
• Rated Torque: 23.0 Nm
• Stall Torque: 22.4 / 27 Nm
• Protection Class: IP65
• Voltage Brake: 24 V
• Power Brake: 31.0 W
• Brake Model: EBD_4B
• Optical Encoder: F02 2048 S/R
