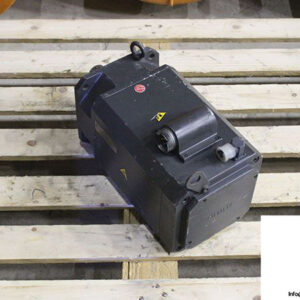

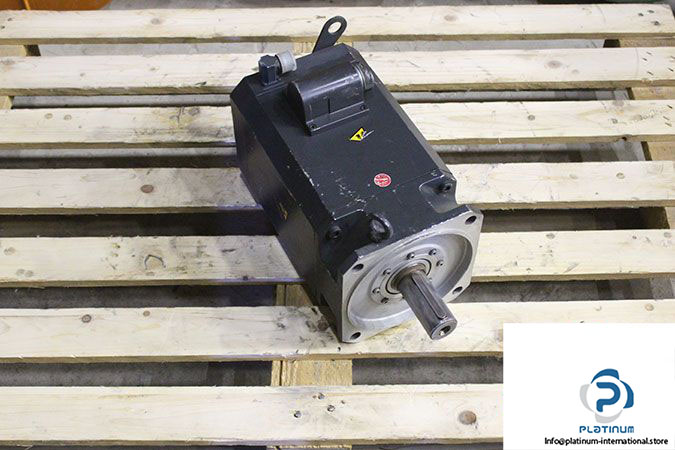

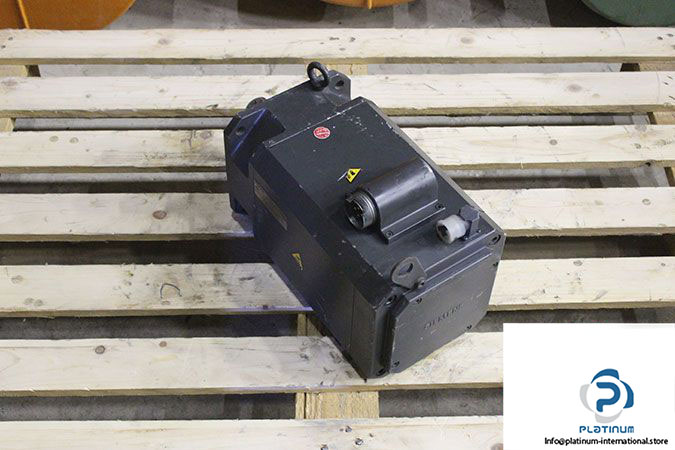

SIEMENS 1FT6 102-8AF71-1EB0 BRUSHLESS SERVOMOTOR
This high-performance Siemens 1FT6 Series Brushless Servomotor is engineered for dynamic motion control in industrial automation. With a rated torque of 18.5 Nm and a maximum speed of 4350 rpm, it ensures reliable and precise operation in demanding environments. Equipped with an integrated brake system, absolute encoder, and IP64 protection, this motor is ideal for high-efficiency servo applications.

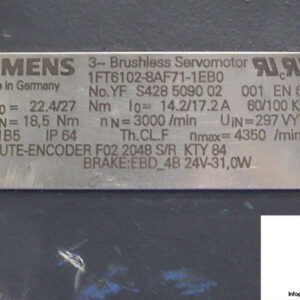

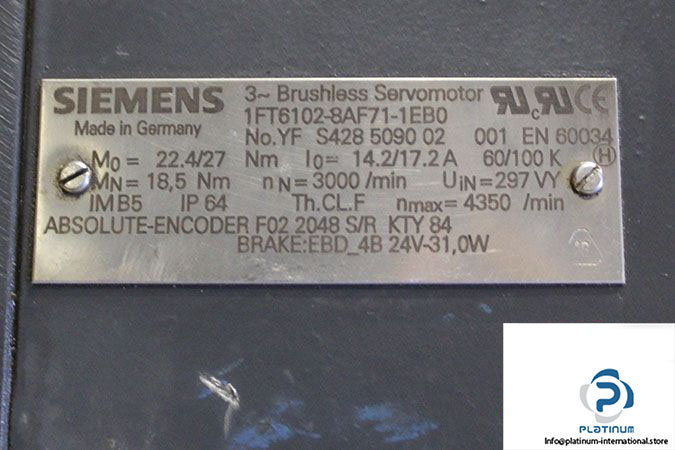

Manufacturer: Siemens
Type: Brushless Servomotor
Model: 1FT6 102-8AF71-1EB0
NO YF: S428 5090 02 001
Series: 6
Technical Information
- Frame Size: 10
- Length: 2
- Rated Voltage: 297 V
- Rated Torque: 18.5 Nm
- Static Torque: 22.4 / 27 Nm
- Stall Current: 14.2 / 17.2 A
- Rated Speed: 3000 rpm
- Maximum Speed: 4350 rpm
- Brake Voltage: 24 VDC
- Brake Power: 31 W
- Brake Model: EBD_4B
- Mounting Position: B5
- Absolute Encoder Model: F02 2048 S/R
- Protection Class: IP64
- Thermal Class: F
