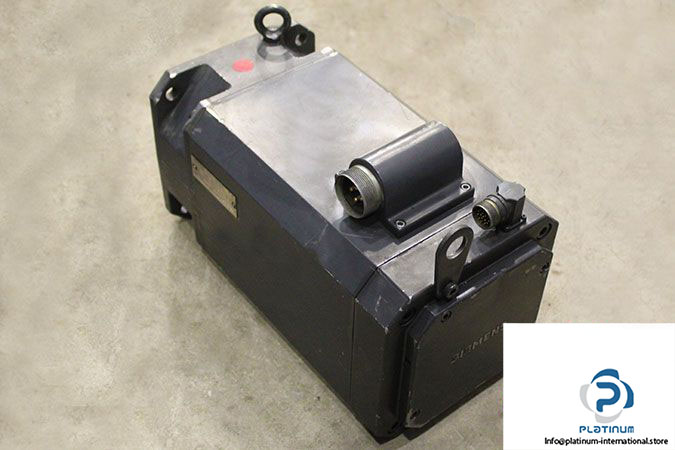

SIEMENS 1FT6105-1AC71-1EG1 BRUSHLESS SERVO MOTOR

This Siemens brushless servo motor is designed for precision, high torque, and optimal efficiency in industrial automation systems. It features a robust IP64 protection rating, high static torque capacity, and flexible mounting compatibility for demanding motion control applications.

Manufacturer: Siemens
Type: Brushless Servo Motors
Model: 1FT6105-1AC71-1EG1
Part No.: J697 2170 02 007

Technical Information

• Series: 6
• Frame Size: 10
• Length: 5
• Rated Voltage [V]: 143/286
• Rated Torque [Nm]: 46/38
• Static Torque [Nm]: 50/41.5
• Rated Speed [rpm]: 1000/2000
• Max. Speed [rpm]: 2450
• Stall Current [A]: 22.2/18.4
• Encoder: F01 2048 S/R
• Mounting Position [IM]: B5
• Protection Class [IP]: 64
• Thermal Class: F
