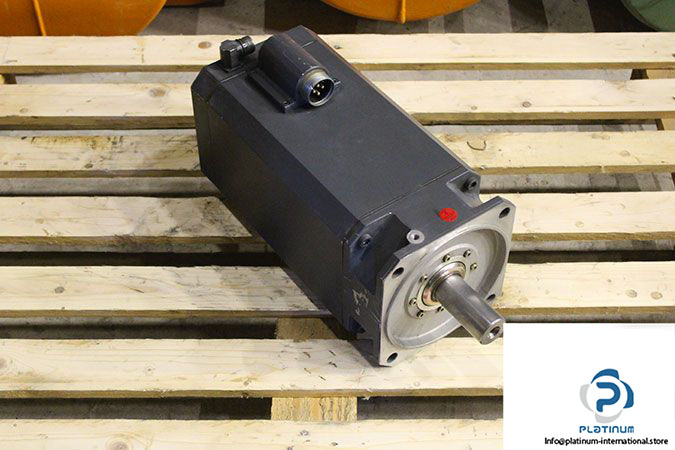

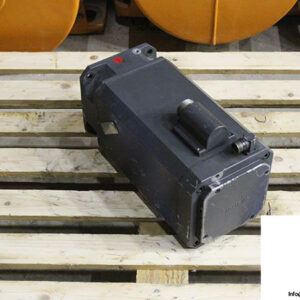

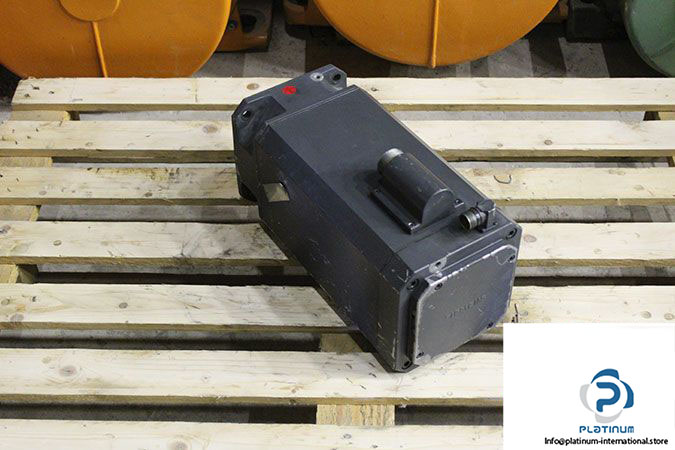

SIEMENS 1FT6105-8AF71-4EH1 BRUSHLESS SERVO MOTOR
Engineered for industrial automation, the Siemens 1FT6105-8AF71-4EH1 brushless servo motor offers powerful, efficient performance with precision control. Ideal for continuous-duty operations in demanding environments, this motor delivers consistent torque and speed across a wide range of applications.
Manufacturer: Siemens
Type: Brushless Servo Motors
Model: 1FT6105-8AF71-4EH1
Part No.: J899 1932 03 001
Series: 6
Frame Size: 10
Length: 5
Technical Specifications
- Rated Voltage [V]: 144 / 288
- Static Torque [Nm]: 41.5 / 50
- Rated Torque [Nm]: 42 / 29
- Stall Current [A]: 27.7 / 33.4
- Rated Speed [rpm]: 1500 / 3000
- Max. Speed [rpm]: 3650
- Brake Voltage [VDC]: 24
- Brake Power [W]: 32
- Duty: S1 Continuous
- Mounting Position [IM]: B5
- Absolute Encoder: 2048 S/R
- Brake Model: EBD 4B
- Protection Class [IP]: 65
- Thermal Class: F
