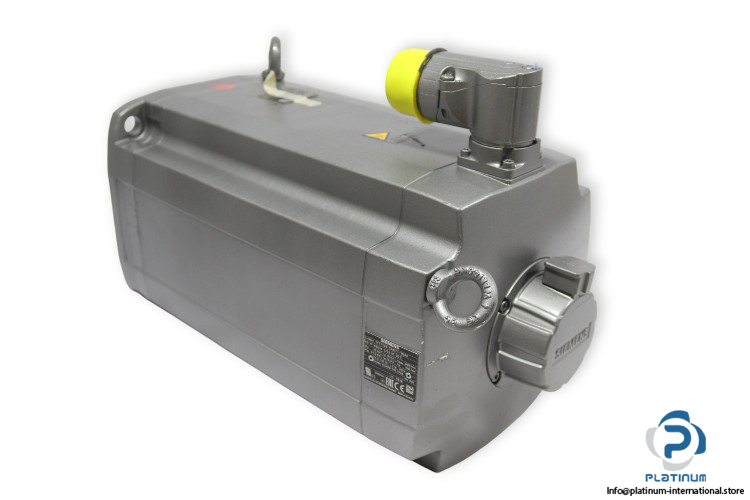

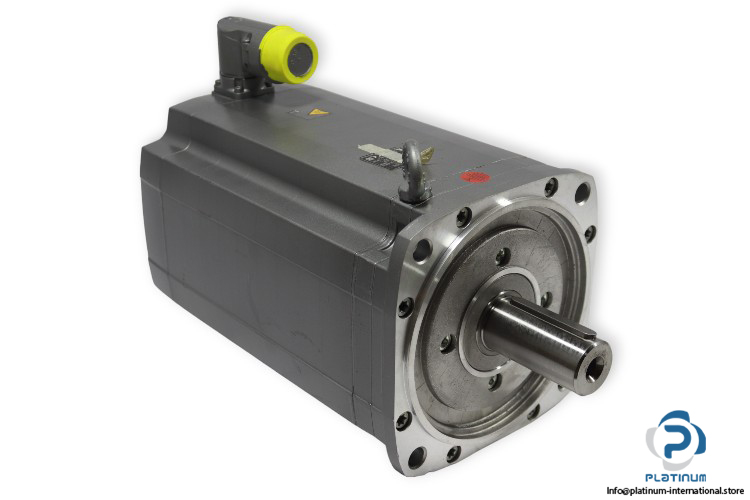

SIEMENS 1FT7108-5AB71-1BA0 PERMANENT-MAGNET SYNCHRONOUS MOTOR

The Siemens 1FT7108-5AB71-1BA0 is a high-performance permanent-magnet synchronous motor built for industrial applications requiring precision, dynamic performance, and robust power. It features a compact design, natural cooling system, and advanced encoder technology for accurate feedback.

Manufacturer: Siemens
Type: Permanent-Magnet Synchronous Motor
Model: 1FT7108-5AB71-1BA0

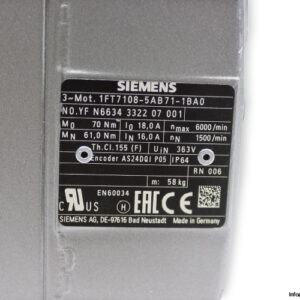

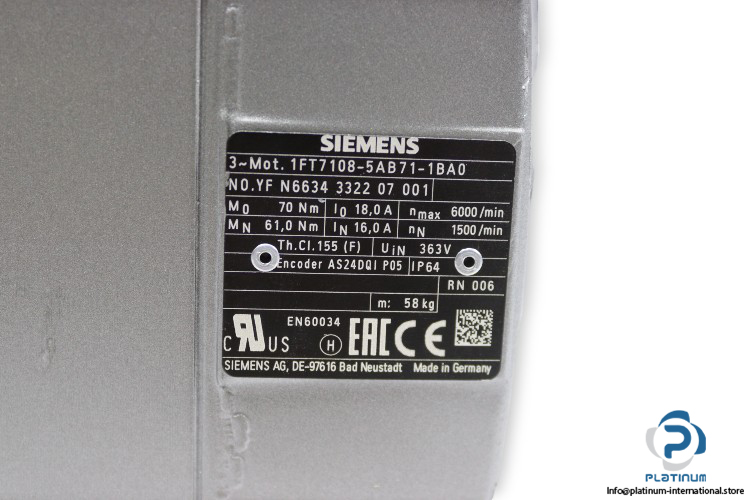

NO.YF: N6634 3322 07 001

Technical Information

• Motor Type: Compact
• Shaft Height: 100
• Cooling: Natural Cooling
• Power Supply: 3 Phase AC
• Number of Poles: 10
• Rated Voltage: 363 V
• Rated Torque: 61 Nm
• Static Torque: 70 Nm
• Stall Current: 18 A
• Rated Current: 16 A
• Rated Speed: 1500 rpm
• Maximum Speed: 6000 rpm
• Rotor Moment of Inertia: 248.00 kgcm²
• Temperature Monitoring: Pt1000 Temperature Sensor
• Mounting Position: IMB5
• Protection Class: IP64
• Thermal Class: F
• Sensor Design Encoder: AS24DQI P05, Absolute Encoder Singleturn 24 bit “ With Signal, Connection RJ45
