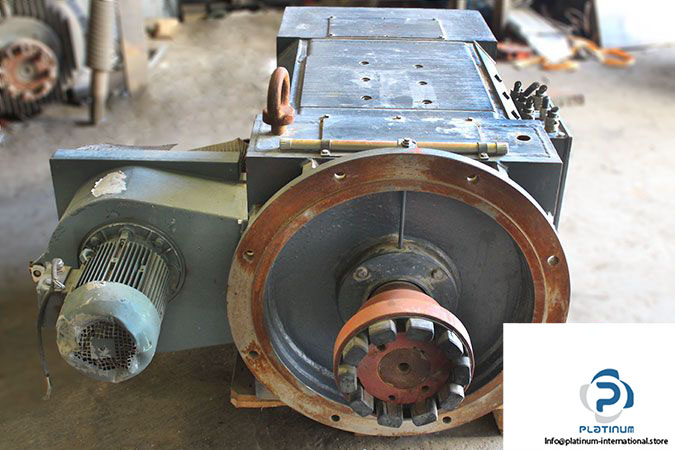

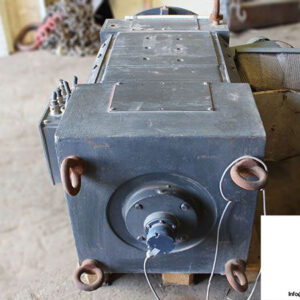

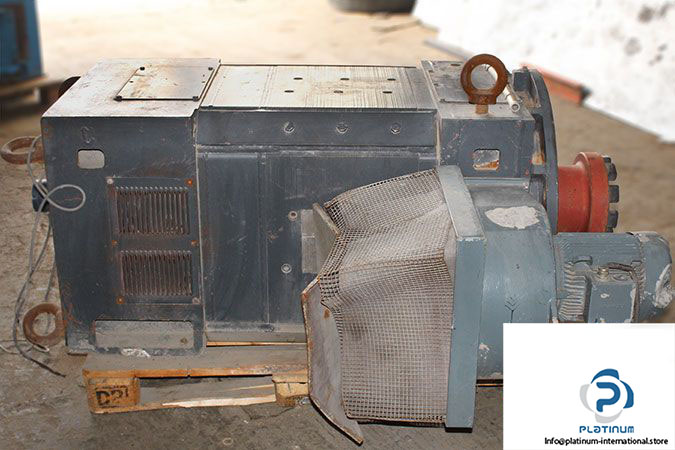

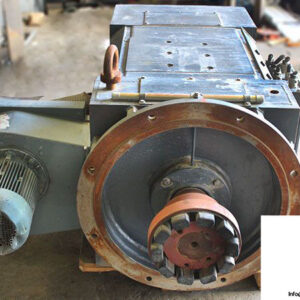

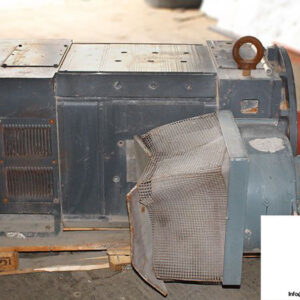

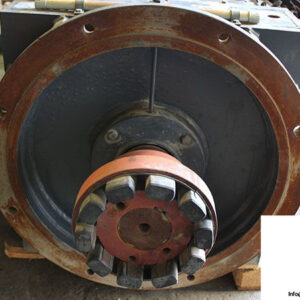

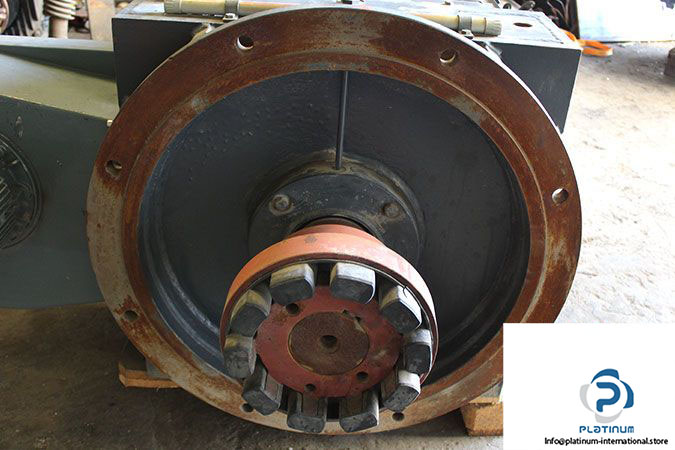

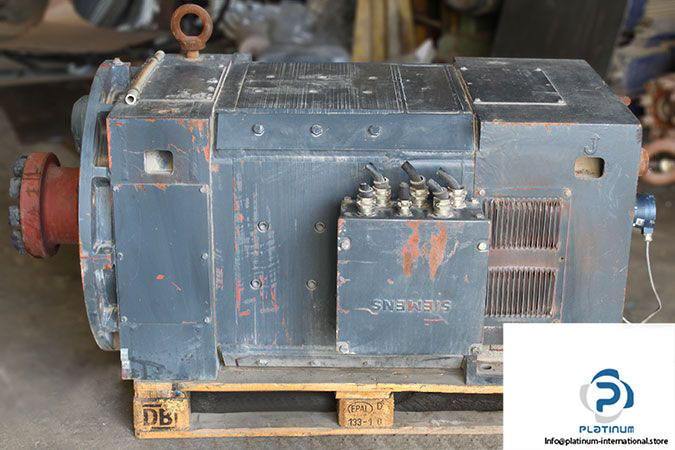

SIEMENS 1GG5 352-9NB44-6ZU3-Z DC ELECTRIC MOTOR
The SIEMENS 1GG5 352-9NB44-6ZU3-Z is a high-power DC electric motor designed for demanding industrial systems, offering wide voltage and current ranges, precision speed control, and robust protection. It features forced air cooling and includes an attached synchronous motor and incremental encoder for enhanced performance and feedback.
Manufacturer: SIEMENS
Type: DC Electric Motor
Model: 1GG5 352-9NB44-6ZU3-Z
Ref No.: N-172165/1994

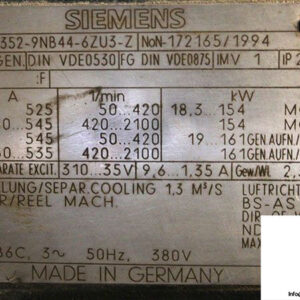

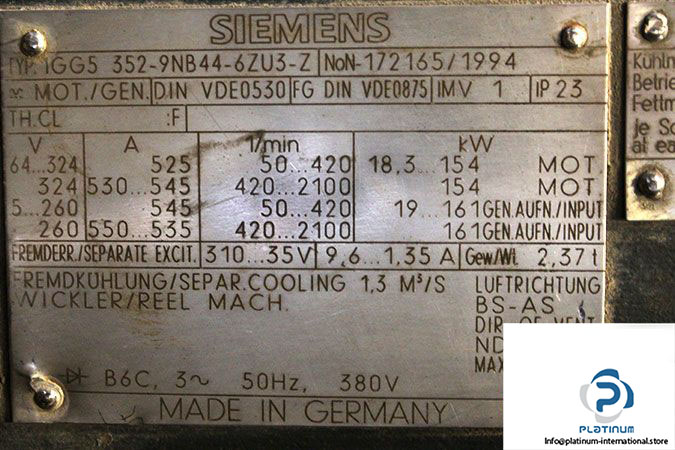

Technical Information
- Armature Voltage: 64 / 324 V / 5 / 260 V
- Armature Current: 525 / 550 A
- Speed: 50 / 2100 min»¹
- Power: 18.3 / 161 kW
- Separate Exciter Voltage: 310 / 35 V
- Separate Exciter Current: 9.6 / 1.35 A

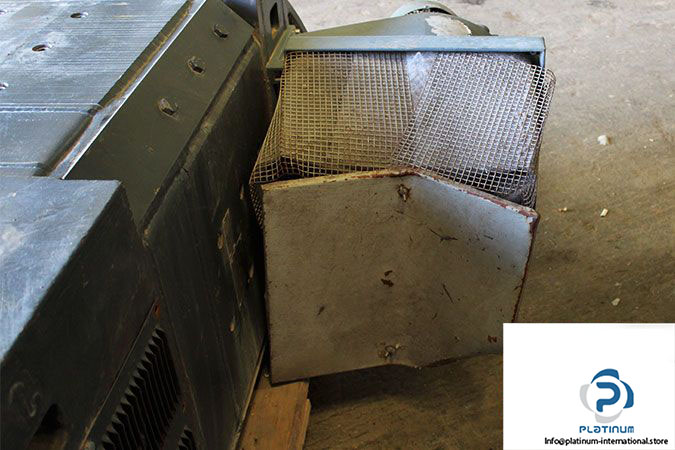

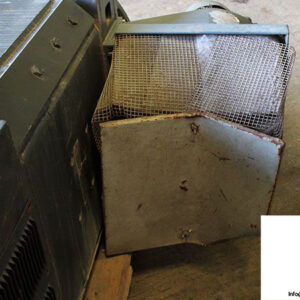

- Cooling Method: Forced Air Cooling 1.3 m³/s Reel Mach
- Protection Class: IP 23
Attached Components

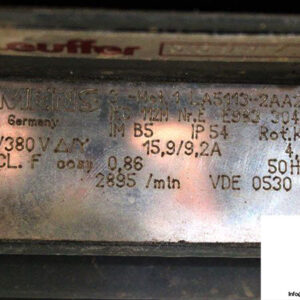

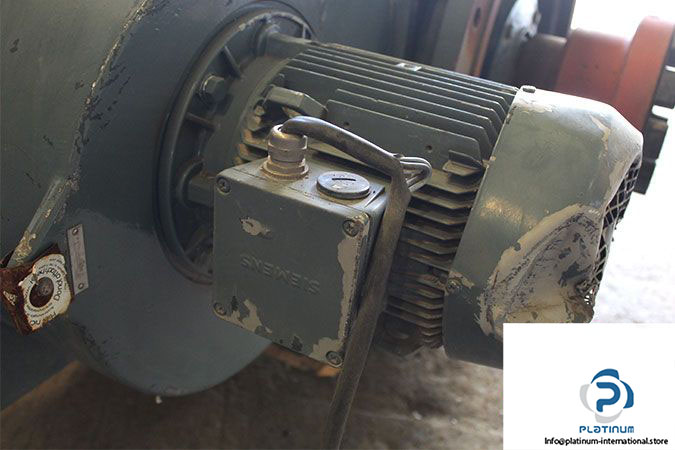

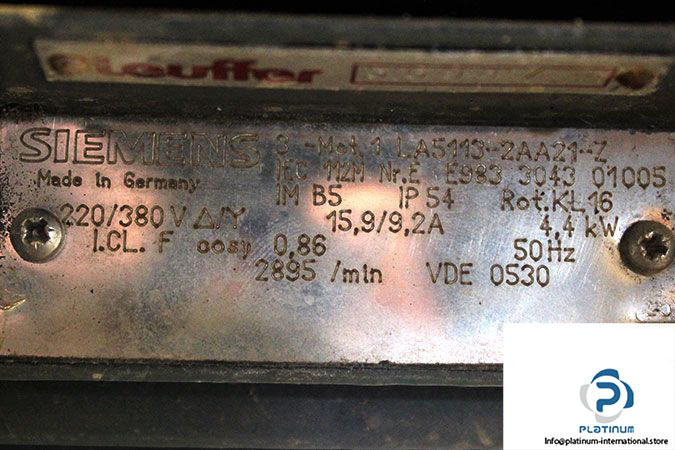

SIEMENS 1LA5113-2AA21-Z Three-Phase Synchronous Motor
Part No.: E983 3043 01005
- Input Voltage (Star): 380 V AC
- Input Voltage (Delta): 220 V AC
- Frequency: 50 Hz
- Input Current (Star): 9.2 A
- Input Current (Delta): 15.9 A
- Output Power: 4.4 kW
- Speed: 2895 min»¹
- Protection Class: IP 54

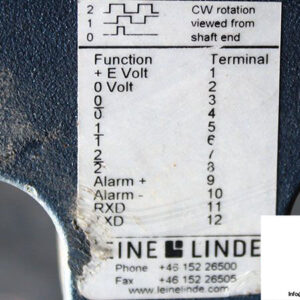

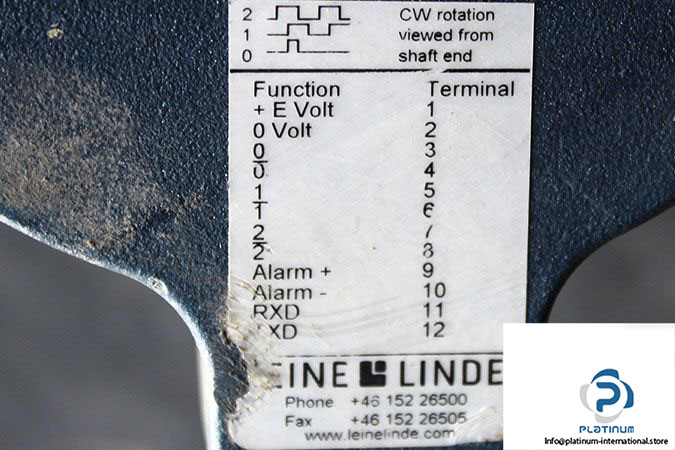

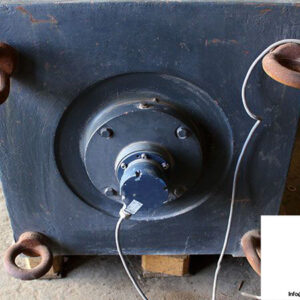

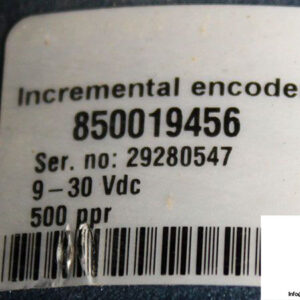

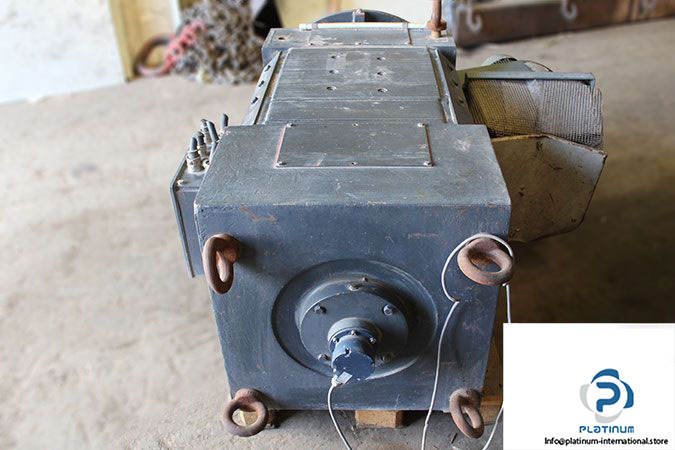

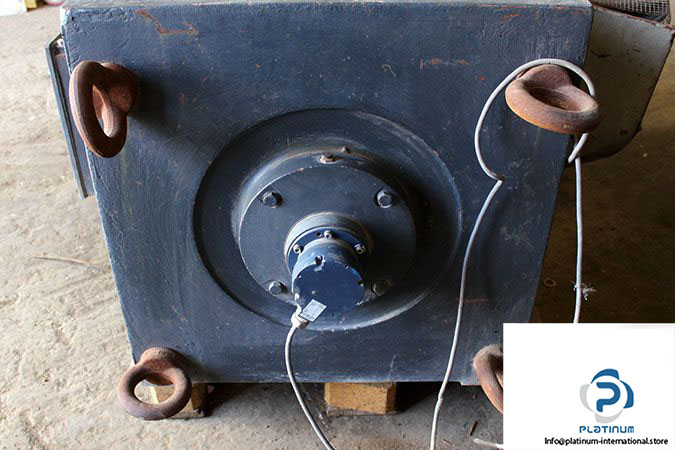

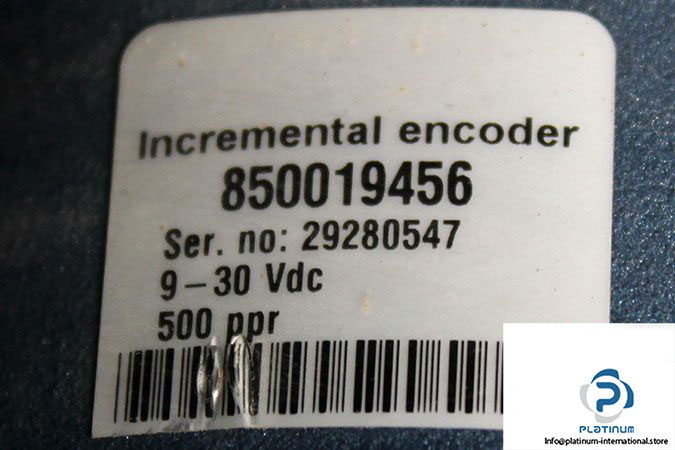

LEINE LINDE 850019456 Incremental Encoder
Serial No.: 29280547
- Shaft Type: Stainless Steel Solid Shaft with Key Nut
- Resolution: 500 Pulses Per Revolution (PPR)
- Voltage Supply: 9 / 30 V DC
- Connection Type: M20 Cable Gland
- Protection Class: IP 67
