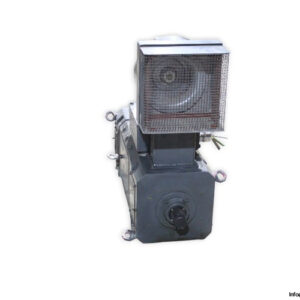

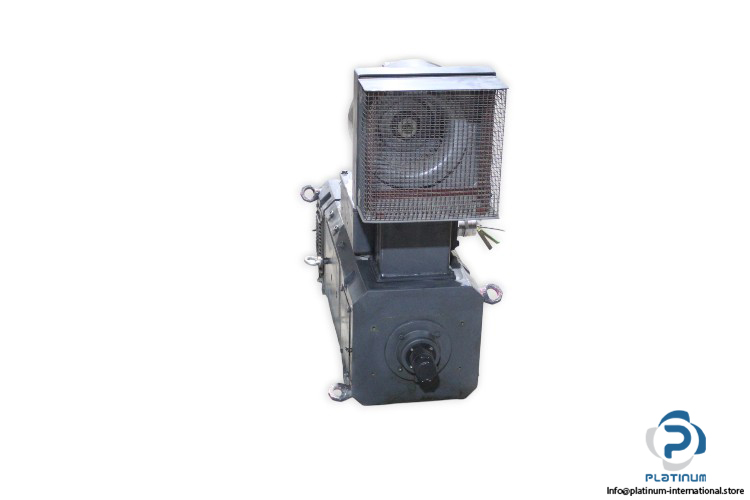

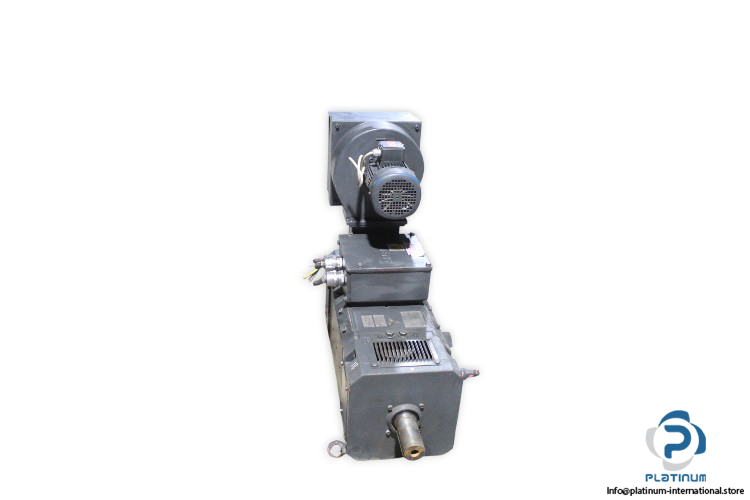

SIEMENS 1GG6188-0NH49-1VV3-Z DC MOTOR
High-performance Siemens DC motor equipped with precision Heidenhain rotary encoder and auxiliary fan motor. Engineered for demanding industrial environments requiring broad speed, voltage, and power ranges, this setup offers excellent accuracy, efficient cooling, and flexible mounting.

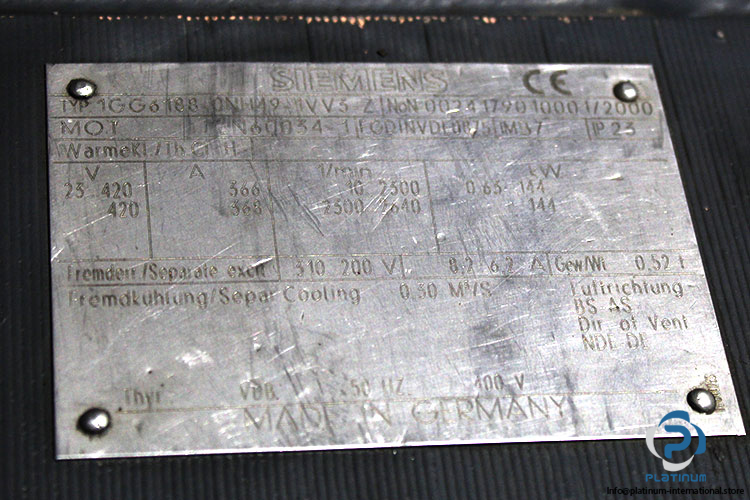

Manufacturer: Siemens
Type: DC Motor
Model: 1GG6188-0NH49-1VV3-Z
Part No.: 0024179010001/2000

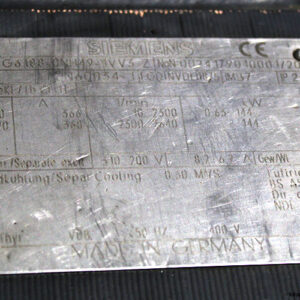

Technical Information
- Voltage Range: 420 V (310 / 200)
- Speed Range: 10 to 2500 / 2300 to 2640 1/min
- Current Range: 366 to 368 A (8.2 to 6.2)
- Power Range: 0.65 to 144 kW
- Protection Class: IP23
- Moment of Inertia: 2.7 Kgm²
- Insulation Class: H

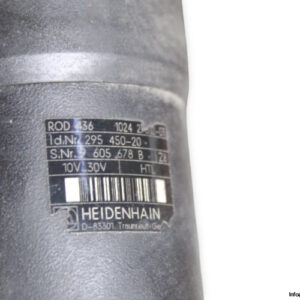

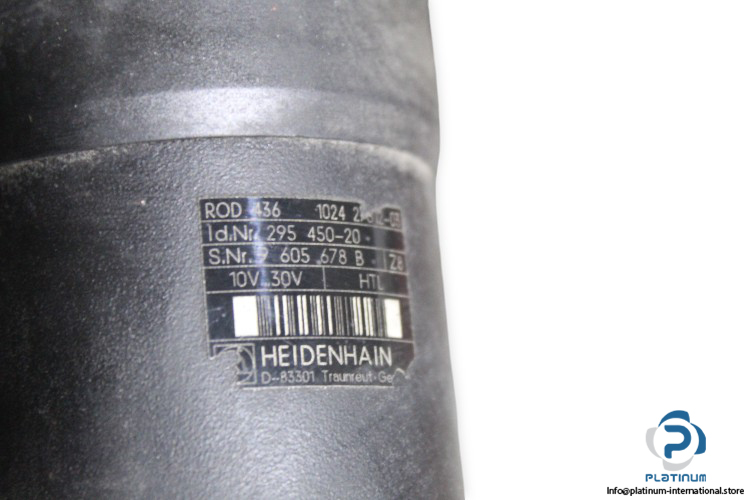

Attachment 1: HEIDENHAIN ROD 436 1024 ROTARY ENCODER
- Manufacturer: Heidenhain
- Type: Rotary Encoder
- Model: ROD 436 1024
- ID No.: 295 450-20
- Serial No.: 9 605 678 B/Z8
- Interface: HTL
- Voltage: 10 to 30 V
- Current: 150 mA
- Shaft (Solid): 6 mm
- Mechanical Permissible Speed: 16000 rpm

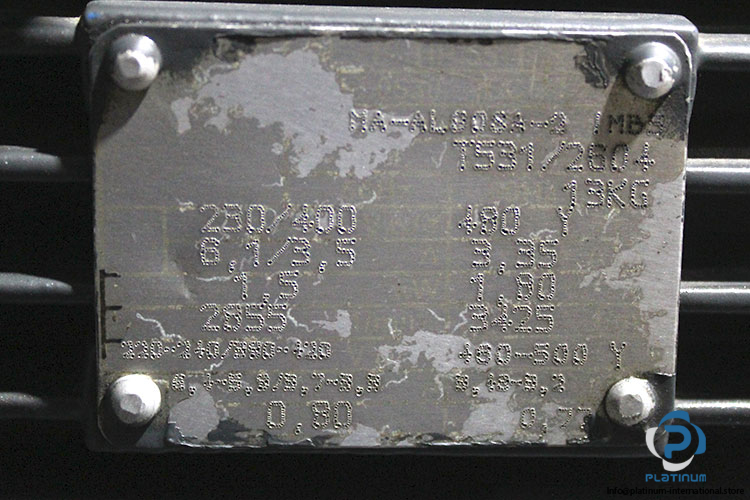

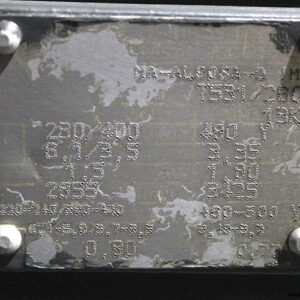

Attachment 2: MA-AL9OSA-2 FAN MOTOR
- Code: T531/2604
- Mounting: B5
- Voltage: 480, 230/400 V, (460“500), (220“240 / 380“420) V
- Current: 3.35, 6.1/3.5 A, (3.18“3.2), (6.7“5.8 / 3.7“3.3) A
- Power: 1.8 / 1.5 kW
- Speed: 3425 / 2855 RPM
- Power Factor: cos φ 0.80 / 0.77
