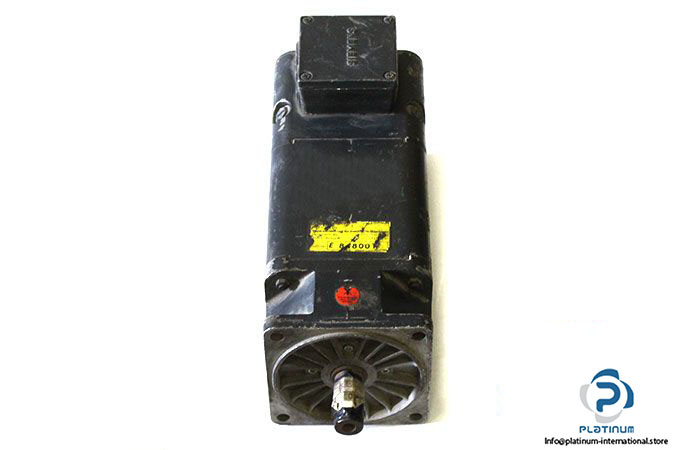

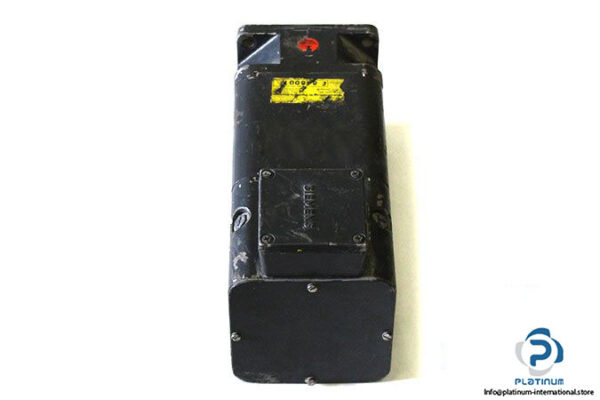

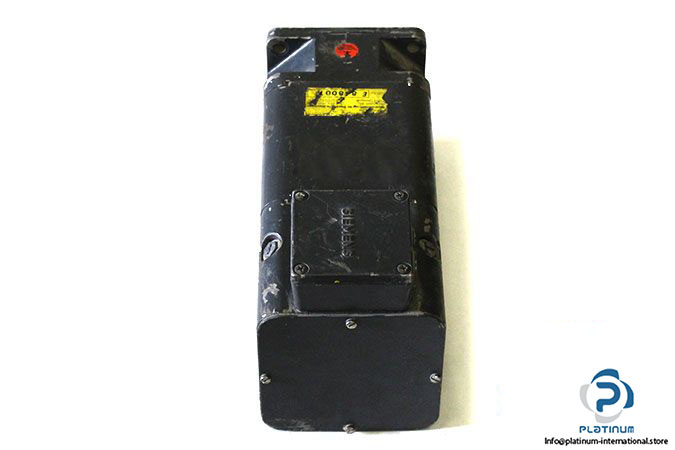

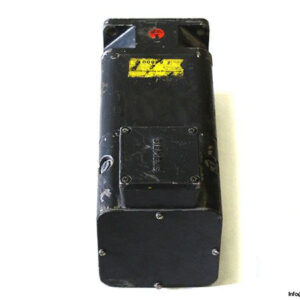

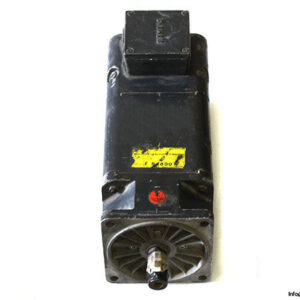

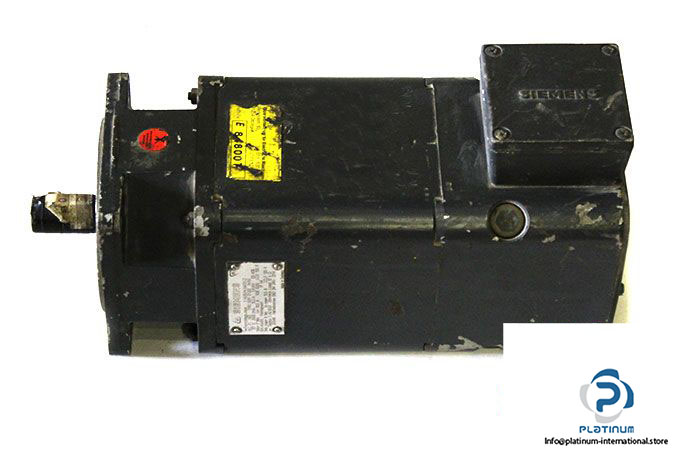

SIEMENS 1HU3074-0AF01-Z PERMANENT MAGNET MOTOR

The Siemens 1HU3074-0AF01-Z Permanent Magnet Motor is a high-efficiency motor engineered for precision motion control and robust industrial applications. Designed for dynamic performance and dependable torque delivery, this motor is an excellent solution for automated systems requiring consistent operation and energy efficiency.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Model: 1HU3074-0AF01-Z
Part No.: 1Y80 0097 01002

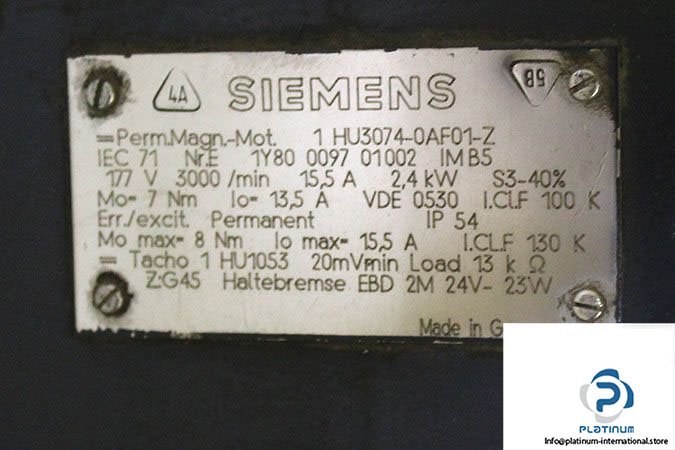

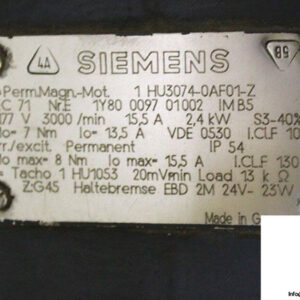

Technical Information

• Rated Voltage: 177 V
• Rated Current: 15.5 A
• Stall Current: 13.5 A
• Rated Speed: 3000 min^-1
• Rated Power: 2.4 kW
• Rated Torque: 18 Nm
• Stall Torque: 7 Nm
• Max Stall Torque: 8 Nm
• Duty: S3
• Thermal Class: F
• Protection Class: IP54
• Tacho Generator: 1HU1053
• Voltage Constant: 20.0 mV/min
• Brake Model: EBD 2M
• Brake Voltage: 24 V
• Brake Power: 23 W
