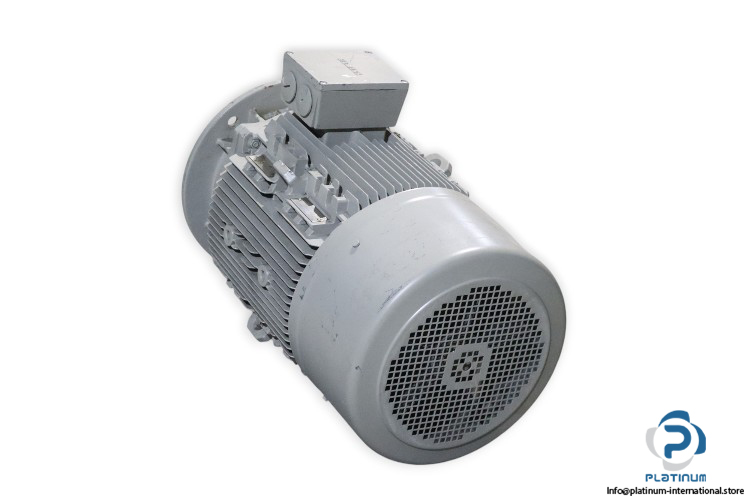

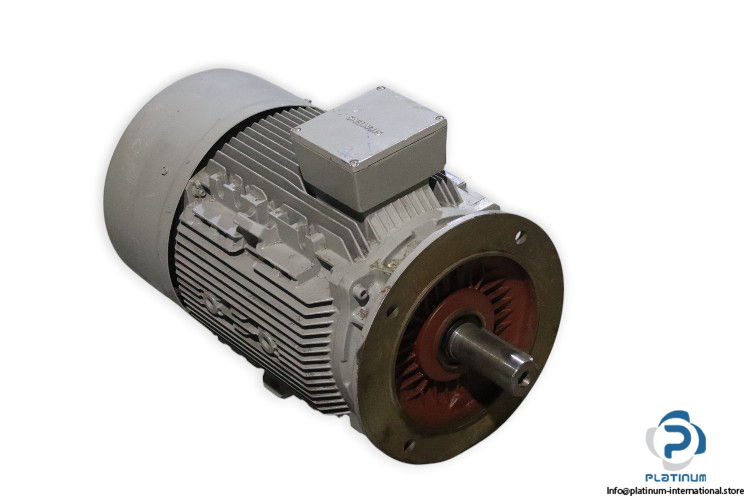

Siemens 1LA51864AA61-Z Three-Phase Electric Motor

The Siemens 1LA51864AA61-Z is a high-performance 3-phase electric motor designed for industrial power and reliability. With dual-frequency operation at 50 Hz and 60 Hz, robust efficiency, and IP55 protection, it ensures dependable service in demanding applications.

Manufacturer: Siemens
Type: 3 Phase Electric Motor
Model: 1LA51864AA61-Z
Part No.: E0502/405222 01 001
Frame Size: 180L

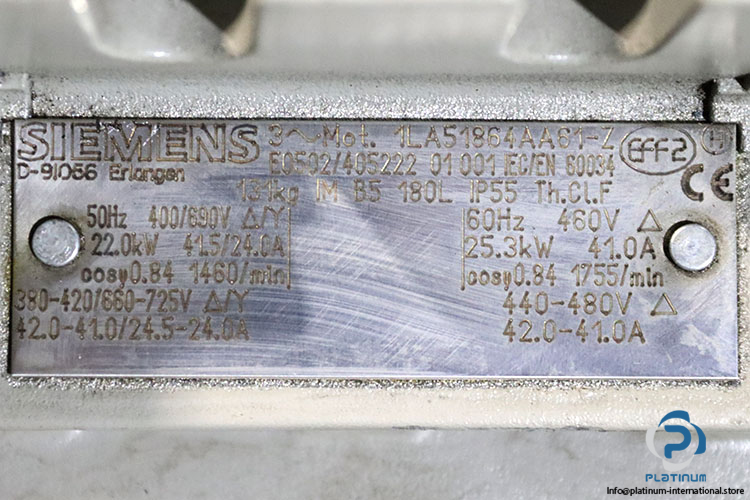

Technical information

@ 50 Hz

• Voltage: 400/690 V
• Power: 22 kW
• Current: 41.5/24 A
• Speed: 1460 RPM
• Power Factor: cos 0.84
• Rated Contact: 380“420/660“725 V, 42“41/24.5“24.6 A

@ 60 Hz

• Voltage: 460 V
• Power: 25.3 kW
• Current: 41 A
• Speed: 1755 RPM
• Power Factor: cos 0.84
• Rated Contact: 440“480 V, 42“41 A

• Thermal Class: F
• IP Rate: IP55
• Mounting Position: B5
